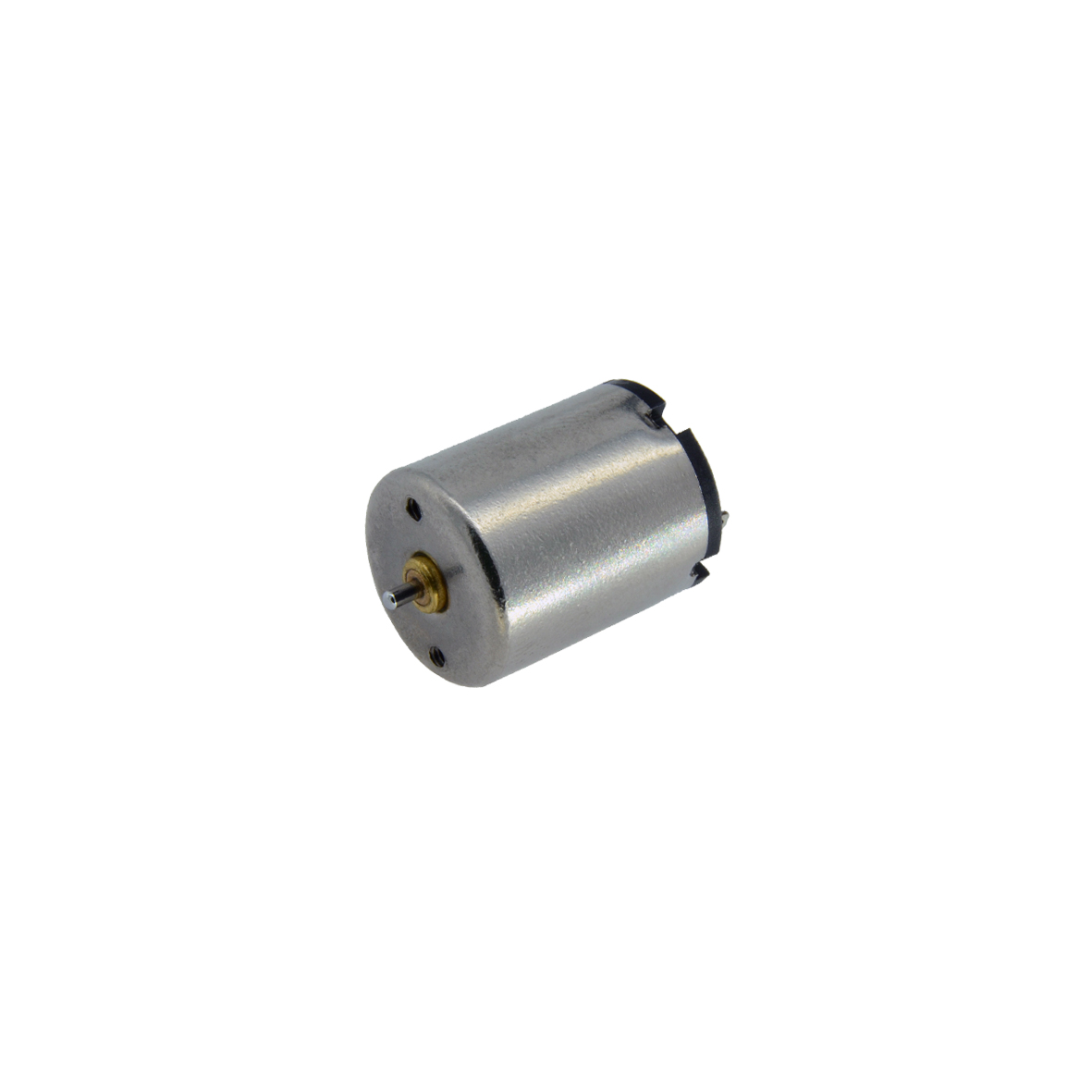

L1215N5M

12mm DC Coreless Motor Series

Width: 12mm; Length: 14.6mm; Voltage: 6.0v, 8.0v; No-load speed: 23000-33000rpm; Maximum output power: 2-5w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

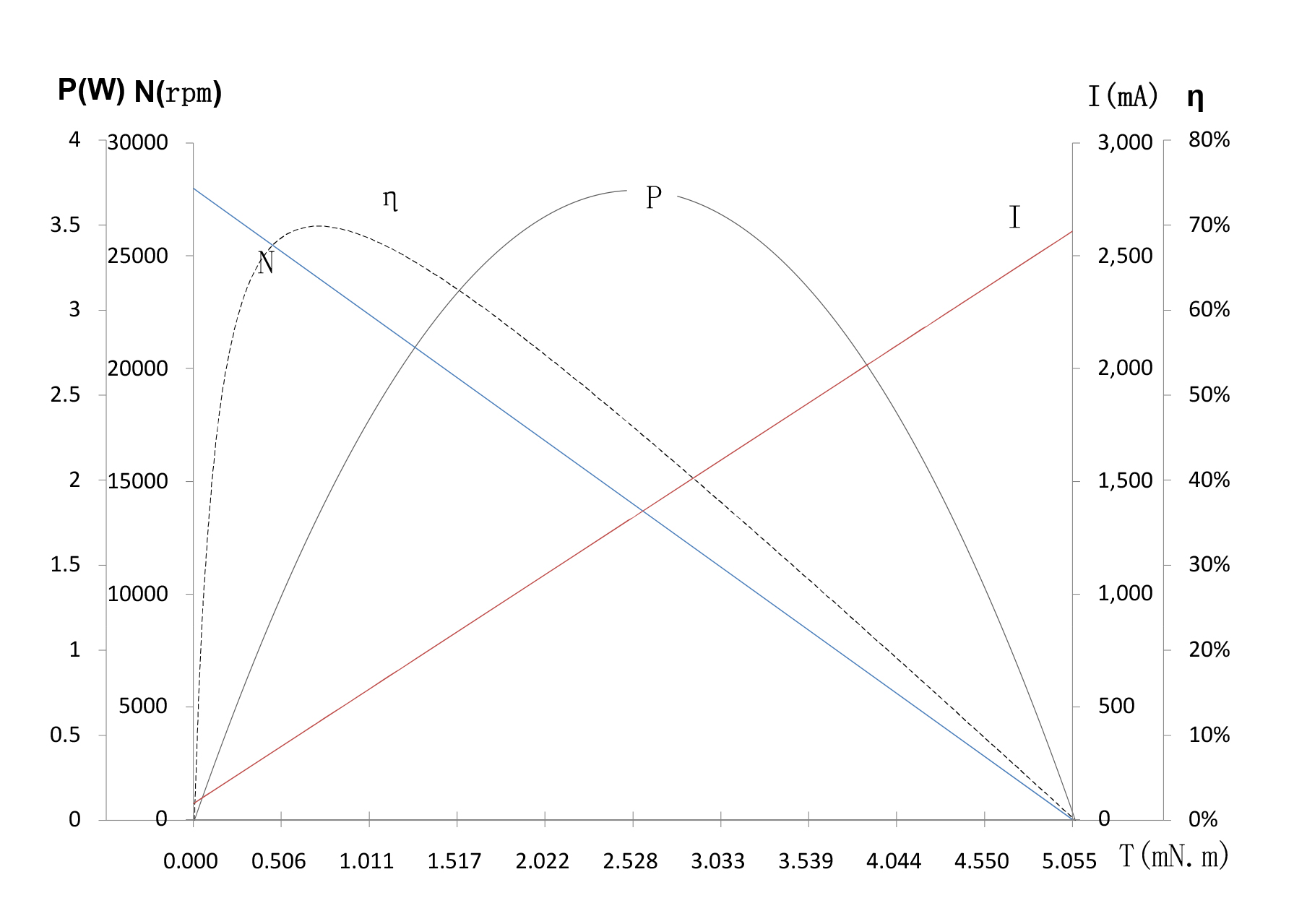

Nombre	Unidad	43-230-6.0	48-330-8.0	34-280-6.0
Voltage	V	6.0	8.0	6.0
Terminal resistance	Ω	3.4	3.3	2.3
No-load speed	rpm	23000	33000	28000
No-load current	mA	50	80	70
Stall torque	mNm	4.1	5.2	5.1
Stall current	mA	1760	2420	2610
Load torque	mNm	1	1	0.5
Load speed	rpm	20220	29850	25230
Load current	mA	260	300	320
Max.output power	W	2	5	3.7
Max.efficiency	%	69.2	67	70
Back-EMF constant	mV/rpm	0.3	0.2	0.2
Torque constant	mNm/A	2.4	2.2	2
Speed/torque gradient	rpm/mNm	5560	6300	5540
Weight	g	7	7	6.5
Rotor inertia	gcm²	0.1	0.1	0.1
Operating temperature range	°C	-20～+85	-20～+85	-20～+85
