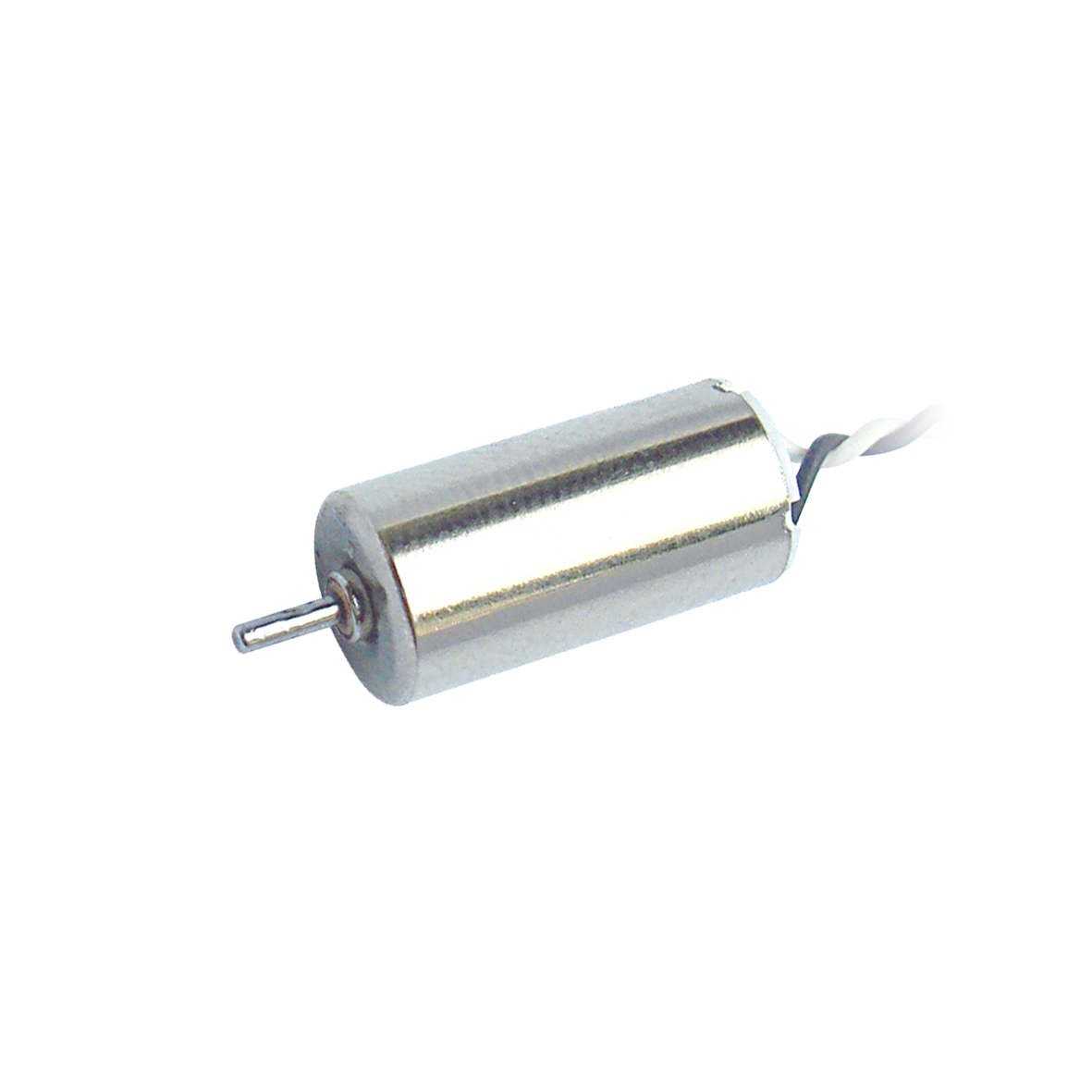

L0612N3M

6mm DC Coreless Motor Series

Width: 6mm; Length: 12.2mm; Voltage: 3.0-4.5v; No-load speed: 16030-55000rpm; Maximum output power: 0.05-0.7w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	08-550-4.5	90-160-3.0	63-250-4.5
Voltage	V	4.5	3.0	4.5
Terminal resistance	Ω	6.5	39	23.3
No-load speed	rpm	55000	16030	25000
No-load current	mA	60	8	20
Stall torque	mNm	0.45	0.11	0.27
Stall current	mA	692	77	193
Load torque	mNm	0.05	0.05	0.05
Load speed	rpm	48900	8740	20320
Load current	mA	130	40	50
Max.output power	W	0.7	0.05	0.17
Max.efficiency	%	49.8	45.8	46.1
Back-EMF constant	mV/rpm	0.07	0.17	0.16
Torque constant	mNm/A	0.71	1.60	1.54
Speed/torque gradient	rpm/mNm	121951	145727	93633
Weight	g	1.3	1.3	1.3
Rotor inertia	gcm²	0.014	0.014	0.014
Operating temperature range	°C	-20～+80	-20～+80	-20～+80
