B0832NH

8mm brushless motor
Diameter: 8mm; Length: 32mm; Voltage: 6.0V; Max output power: 6.3W; Speed: 32000rpm; Rated torque: 1.3 - 1.7mNm; Commutation : Hall sensor.

Application : Medical, automation equipment, precision instruments, and other precision drive fields.
Customizable : Specifications, wire length, shaft length, performance, bearings, gearbox, encoder, driver

Ask for datasheet

Customized Assessment

Ask for a quotation

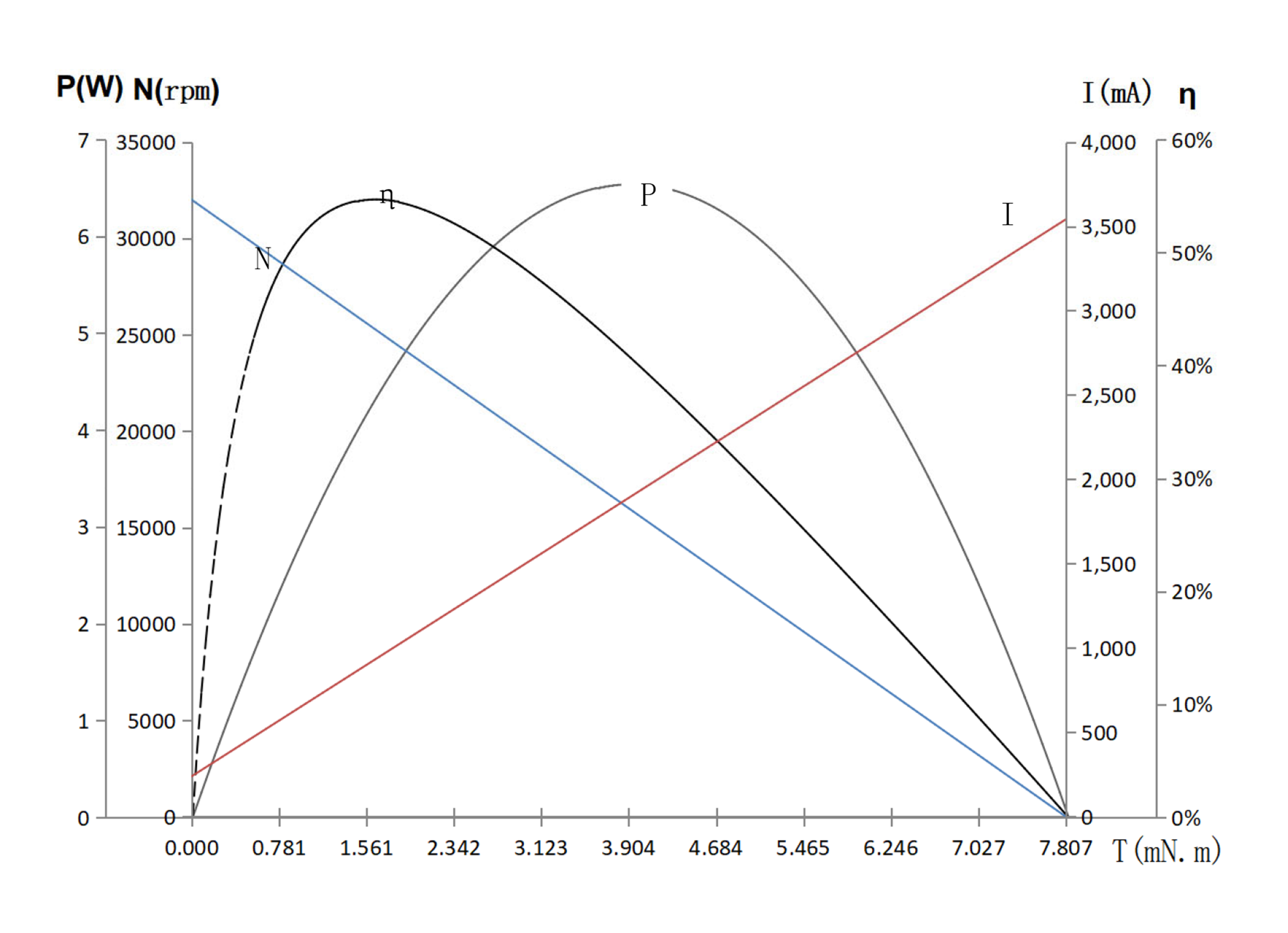

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	01-320-6.0	02-320-8.5	03-320-12.0
Voltage	V	6.0	8.5	12.0
Terminal resistance	Ω	1.26	2.4	1.56
No-load speed	rpm	32000	32000	32000
No-load current	A	0.27	0.24	0.4
Stall torque	mNm	7.59	7.8	24.76
Stall current	mA	4.76	3.54	7.69
Nominal torque	mNm	1.3	1.3	1.7
Nominal speed	rpm	26720	26720	29760
Nominal current	A	1.10	0.78	0.91
Max.output power	W	6.3	6.5	21
Max.efficiency	%	57	57	58
Back-EMF constant	mV/rpm	0.177	0.476	0.356
Torque constant	mNm/A	1.7	2.2	3.4
KV Value	rpm/V	5333	3764	2670
Speed/torque gradient	rpm/mNm	4216	4102	1292
Rotor inertia	gcm2	0.36	0.36	0.36
Weight	g	30	30	30
