C1215F

1215 DC motor

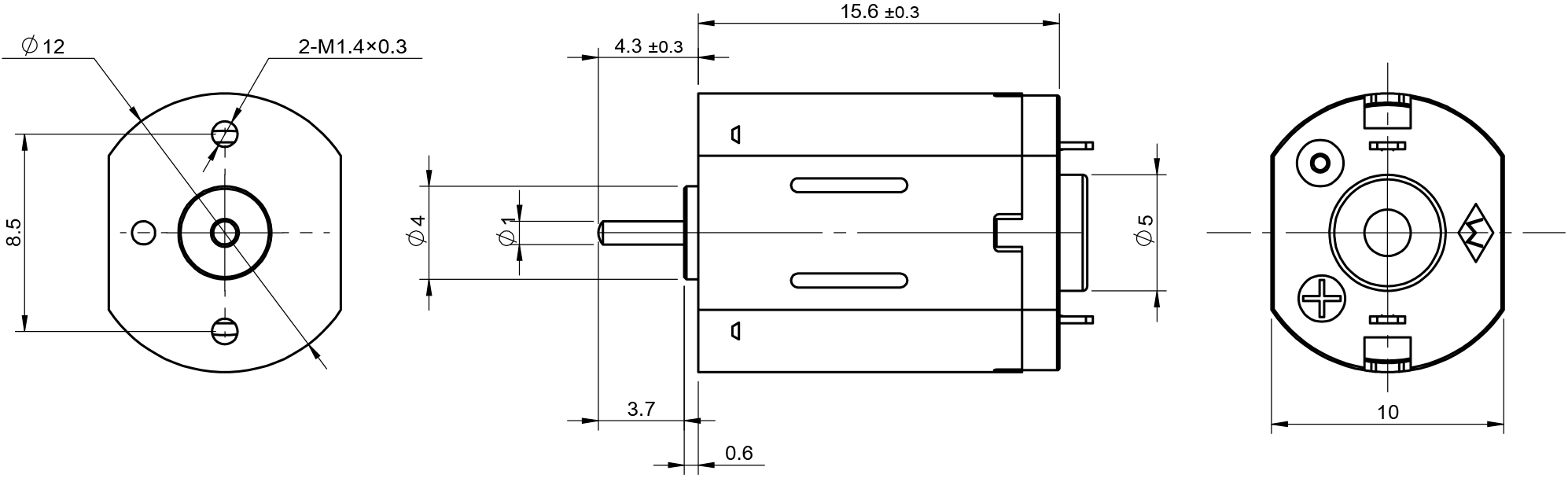

Diameter: 12mm; Length: 15mm; Voltage: 1.5v, 3.0v, 3.5v; No-load speed: 9600-25000rpm; Maximum output power: 0.18-1.18w.

Applications: security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools, etc.

Customizable options: Specifications, lead length, shaft length, performance, bearings, gearboxes, encoders, drives

Unit price: Quote according to customer quantity and solution requirements

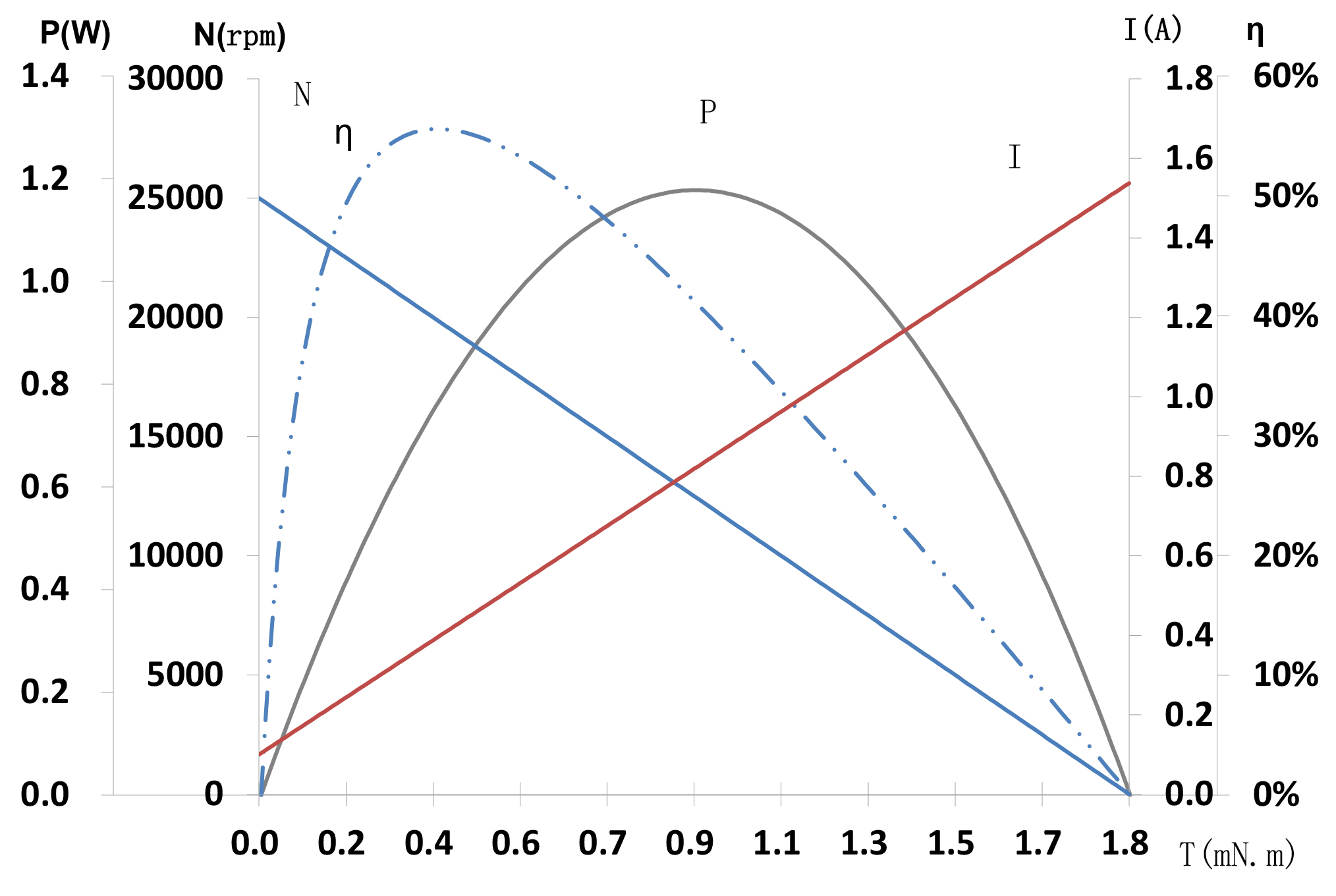

Nombre	Unidad	13-0086	13-0141	13-0260
Voltage	V	3.5	1.5	3.0
Terminal resistance	Ω	1.7	1.2	10.8
No-load speed	rpm	25000	11500	9600
No-load current	mA	100	110	40
Stall torque	mNm	1.8	1.1	0.7
Stall current	mA	1506	1030	274
Load torque	mNm	0.294	0.294	0.294
Load speed	rpm	20910	8500	5500
Load current	mA	330	350	140
Max.output power	W	1.18	0.33	0.18
Max.efficiency	%	56.5	48.8	44.8
Back-EMF constant	mV/rpm	0.13	0.12	0.27
Torque constant	mNm/A	1.28	1.20	2.99
Speed/torque gradient	rpm/mNm	13912	10455	13714
Weight	g	5.4	5.4	5.1
Varistor	Yes/No	Yes	Yes	Yes
Operating temperature range	°C	-20～+80	-20～+80	-20～+80
