Coreless Brushless Motor

13**NH...M...

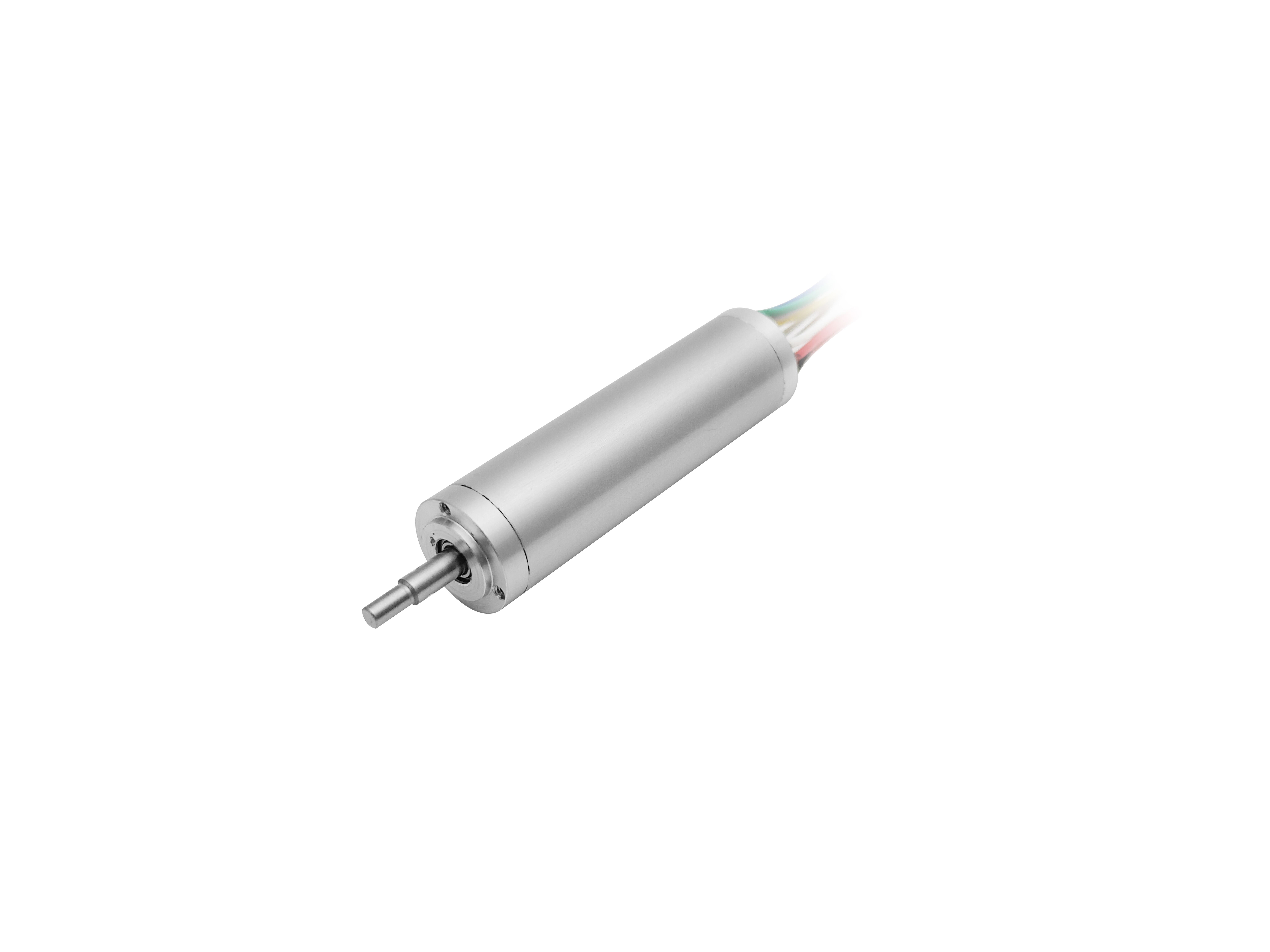

13mm hollow cup brushless servo motor

Diameter: 13mm Length: 59-75mm; Voltage: 12v; Gearbox: Metal planetary gear;

Encoder: Magnetic encoder; Manufacturer: Shenzhen Micromotor Factory; Brand: Constar

Applications: medical equipment, intelligent prostheses, industrial robots, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox, encoder, driver

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

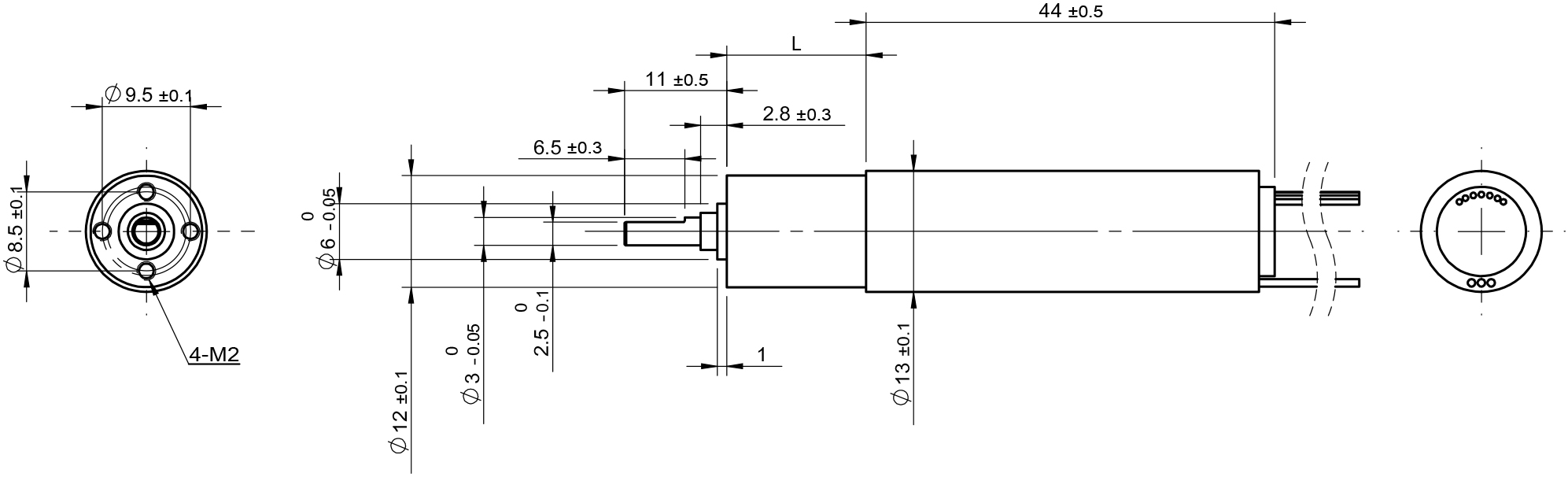

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 01-250-12.0
Voltage V 12.0
Terminal resistance Ω 7.5
No-load speed rpm 25000
No-load current mA 0.1
Stall torque mNm 6.4
Stall current mA 1.6
Nominal torque mNm 1.70
Nominal speed rpm 15300
Nominal current mA 0.51
Back-EMF constant mV/rpm 0.45
Torque constant mNm/A 4.3
  Gearbox
Number of stages 1 2 3 4 5
Reduction ratio 4 16 64 256 1024 　
Max. rated torque 80 120 160 180 200 　
Max. momentary torque 240 360 480 540 600 　
Length（L） 14.4 18.4 22.4 26.4 30.4 　
Shell material Metal
Gear processing technology Metal CNC
Encoder 　 　 　 　
Number of channels 2 3 　
Counts per turn 16,32,64,256,512 16,32,64,256,512 　
Supply voltage 5.0 （5.0） 5.0 （5.0） 　
Max. speed 40000 40000 　
Phase shift 90±45 90±45 　 　 　
Output signal TTL TTL 　 　 　
