L0830...08PP...

8mm micro gear reduction motor

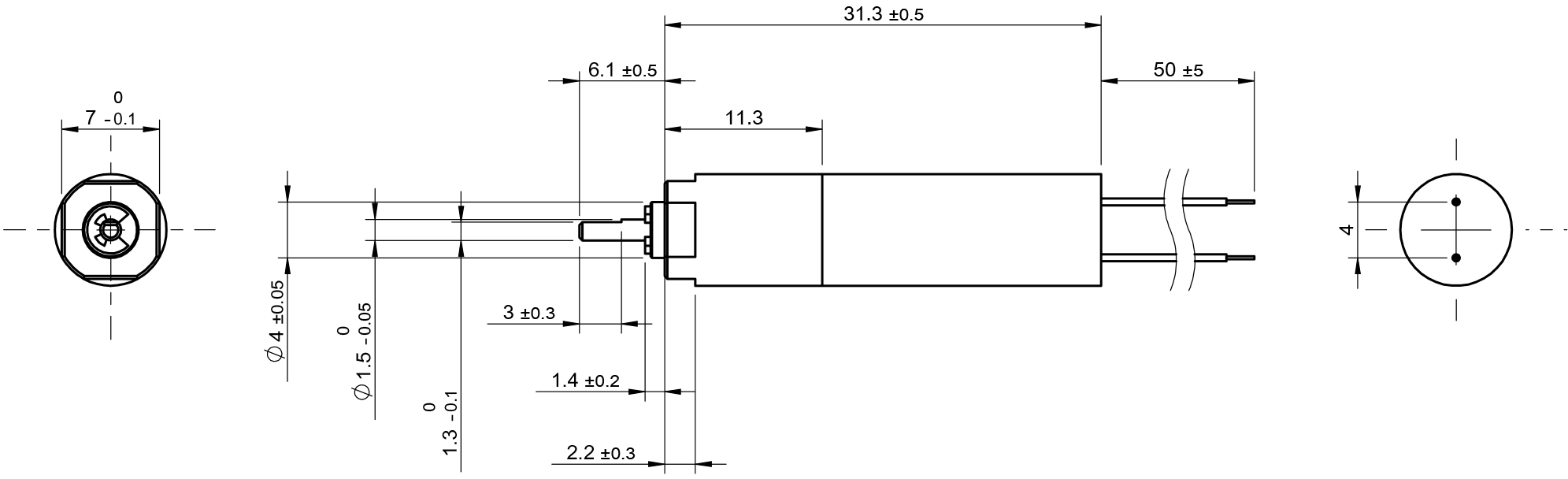

Diameter: 8mm Length: 31mm Voltage: 3.0v, 3.5v; Gearbox: plastic planetary gear; Reduction ratio: 1/28, 1/152

Applications: medical equipment, security systems and locks, audio and visual producks, personal healthcare products, and high-end hobby products.

Customizable options: wire length, shaft length, performance,

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	L0831-620-3.0-08PP28-0017	L0830-92-3.5-08PP152-0080
Voltage	V	3.0	3.5
Terminal resistance	Ω	1.75	8.5
No-load speed	rpm	620	92
No-load current	mA	150	50
Max torque	mNm	45	76
Load torque	mNm	10	10
Load speed	rpm	480	82
Load current	mA	560	100
Reduction ratio		1/28	1/152
Weight	g	5.07	5.07
Operating temperature range	℃	-10～+70	-10～+70
