Planetary Gear Motor

06**...06*P...

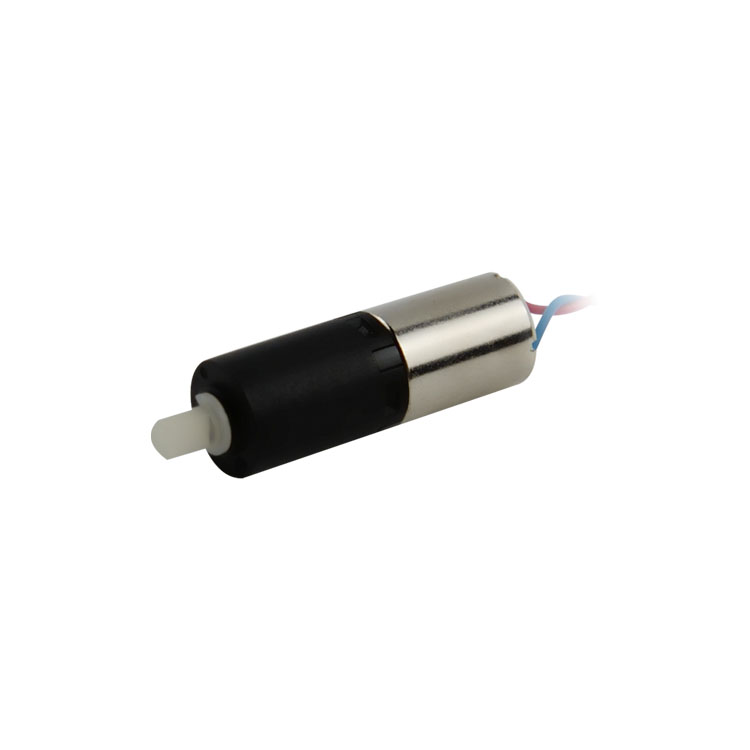

6mm planetary gear reduction motor

Diameter: 6mm; Length: 27-32mm; Voltage: 3v, 6v; Reduction ratio: 23~1708;

Gearbox: planetary metal, plastic reduction box.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation
Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 0615N5M01-122-3.0 0615N5M02-185-3.0 0615N5M03-295-6.0
Voltage V 3.0  3.0  6.0
Terminal resistance Ω 19 18.5 10.1
No-load speed rpm 12200 18500 29500
No-load current mA 10 18 20
Stall torque mNm 0.33 0.2 1.07
Stall current mA 160 160 590
Nominal torque mNm 0.1  0.05 0.3
Nominal speed rpm 8500 13770 21230
Nominal current mA 60 50 180
Max.output power W 0.11 0.09 0.83
Max.efficiency % 56 44 67
Back-EMF constant mV/rpm 0.2 0.1 0.2
Torque constant mNm/A 2.2 1.4 1.9
Speed/torque gradient rpm/mNm 37000 94600 27600
Rotor inertia gcm2 0.015 0.015 0.015
Weight g 2.5 2.5 2.5
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 23~41 110~226 531~1708
Max. rated torque mNm 33 33 33
Max. momentary torque mNm 50 50 50
Length（L） mm 12.1 14.5 16.9
Shell material Metal
Gear processing technology Metal injection
