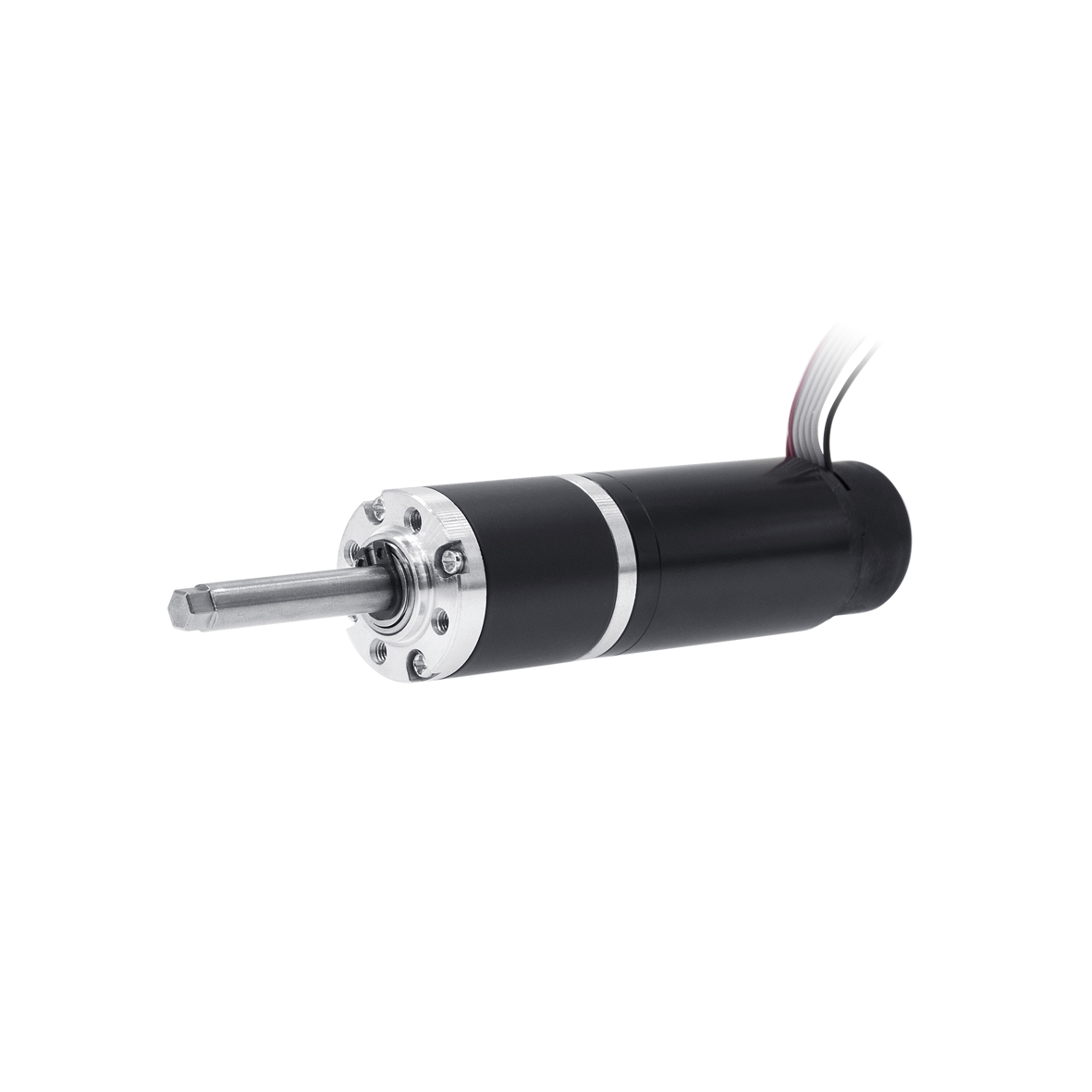

30mm hollow cup servo motor

Diameter: 30mm；Length: 98-117mm；Voltage: 18v, 24v; Gearbox: Metal planetary gear

Encoder: Magnetic encoder; Manufacturer: Shenzhen Micromotor Factory；Brand: Constar

Applications: medical equipment, intelligent prostheses, industrial robots, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox, encoder, driver

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

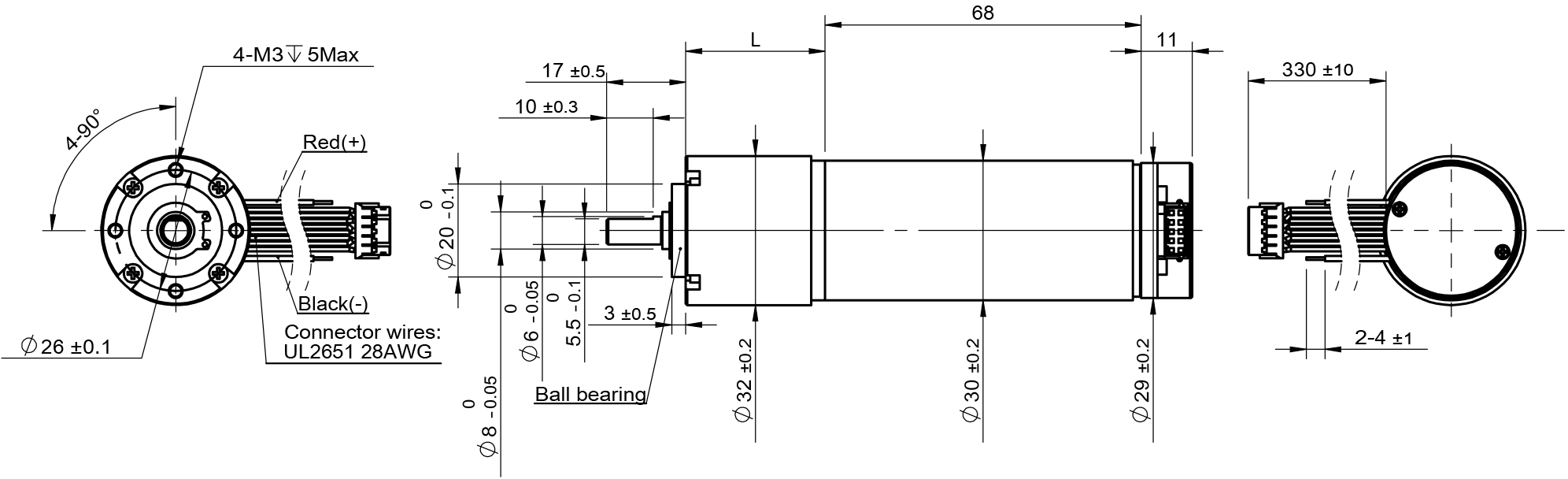

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 2543N9C2B09-95-12.0 2543N9C2B10-94-24.0 2543N9C2B11-98-30.0
Voltage V 18.0 24.0 24.0
Terminal resistance Ω 0.5 0.8 1.6
No-load speed rpm 8800 11000 10000
No-load current mA 220 105 100
Stall torque mNm 343.2 338.9 256.5
Stall current mA 18000 15000 11500
Nominal torque mNm 20.0 61.5 94.8
Nominal speed rpm 8200 8200 6300
Nominal current mA 1300 2800 4300
Back-EMF constant mV/rpm 2.02 2.38 2.38
Torque constant mNm/A 19.29 22.78 22.68
Gearbox
Number of stages 1 2 3 4
Reduction ratio 3.7,4.3,5.2,6.7 13.7,16,19,27,35 45,51,79,100,115,139,169,190 253,352,516,721,2076 　 　
Max. rated torque 750 4000 7000 8000 　 　
Max. momentary torque 1100 6000 10500 12000 　 　
Length（L） 30 39.5 49 58.5 　 　
Shell material Metal
Gear processing technology Metal CNC
Encoder 　 　 　 　
Number of channels 　 2 3 　
Counts per turn cpt 16,32,64,128,256,512,1024 16,32,64,128,256,512,1024 　
Supply voltage V 5.0 （5.0） 5.0 （5.0） 　
Max. speed rpm 30000 30000 　
Phase shift °e 90±60 90±60 　 　
Output signal 　 TTL TTL 　 　
Diameter mm 29 29 　 　
Length mm 11 11 　 　
