Planetary Gear Motor

BO48**...52*P...

52mm planetary gear reduction motor

Diameter: 43mm; Length: 60~86mm; Voltage: 18v, 24v, 36v; Reduction ratio: 3.65~393;

Gearbox: planetary metal, powder metallurgy.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

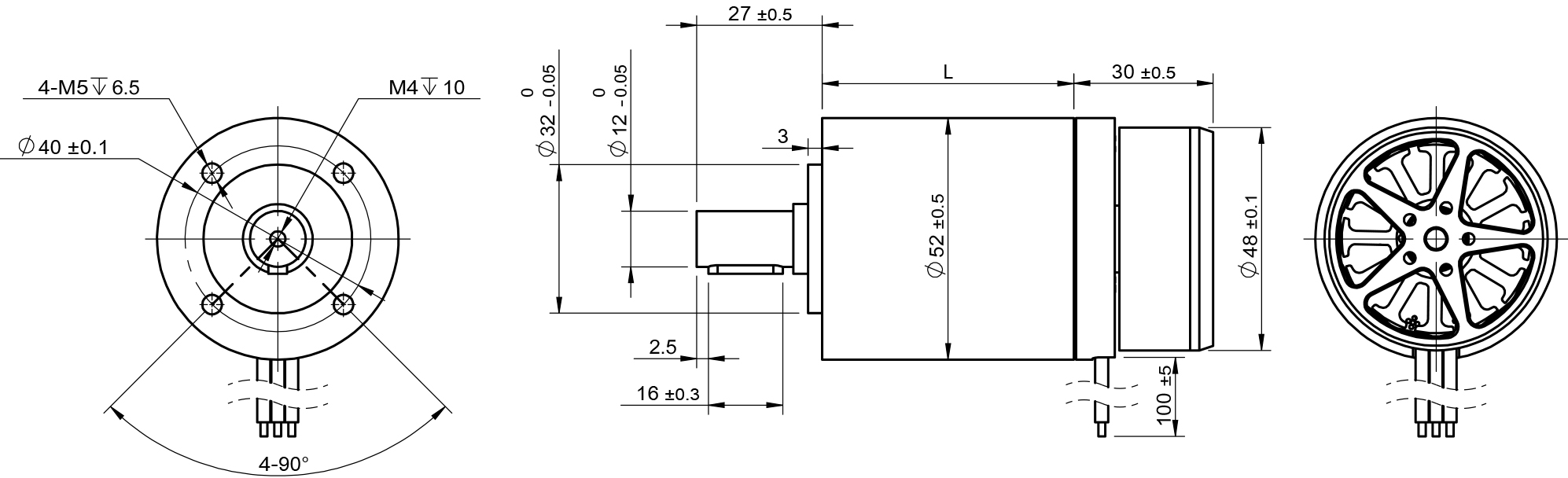

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad BO4831NH2B01-101-18.0 BO4831NH2B02-101-24.0 BO4831NH2B03-101-36.0
Voltage V 18.0 24.0 36.0
Terminal resistance Ω 0.05 0.08 0.18
No-load speed rpm 10160 10160 10160
No-load current mA 1.1 0.9 0.6
Stall torque mNm 6053 6726 6727
Stall current mA 360 300 200
Nominal torque mNm 449 447 457
Nominal speed rpm 7600 7700 7700
Nominal current mA 23.5 17.6 12
Max.output power W 1609 1788 1788
Max.efficiency % 89.2 89.3 89.3
Back-EMF constant mV/rpm 1.8 2.4 3.5
Torque constant mNm/A 16.9 22.5 33.7
Speed/torque gradient rpm/mNm 1.68 1.51 1.51
Rotor inertia gcm2 306 306 306
Weight g 211 211 211
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 3.65~8.63 28~58 67~393 　 　 　
Max. rated torque mNm 4000 12000 25000 　 　 　
Max. momentary torque mNm 8000 24000 50000 　 　 　
Length（L） mm 38.6 54.2 69.8 　 　 　
Shell material Metal
Gear processing technology Metal CNC
