Planetary Gear Motor

16**...16*P...

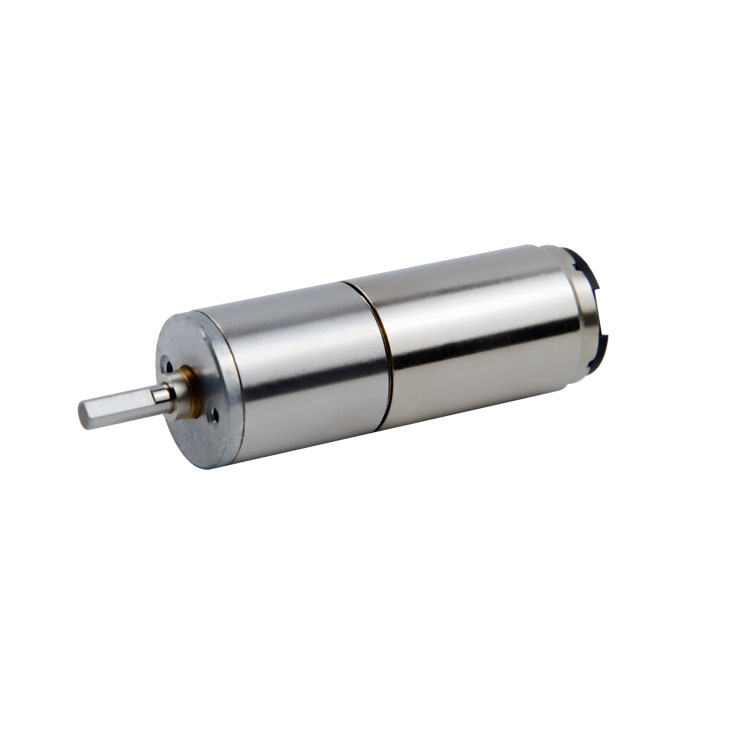

16mm planetary gear reduction motor

Diameter: 16mm; Length: 33~57mm; Voltage: 6v, 12v; Reduction ratio: 4~3027;

Gearbox: planetary metal, powder metallurgy, plastic reduction box.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

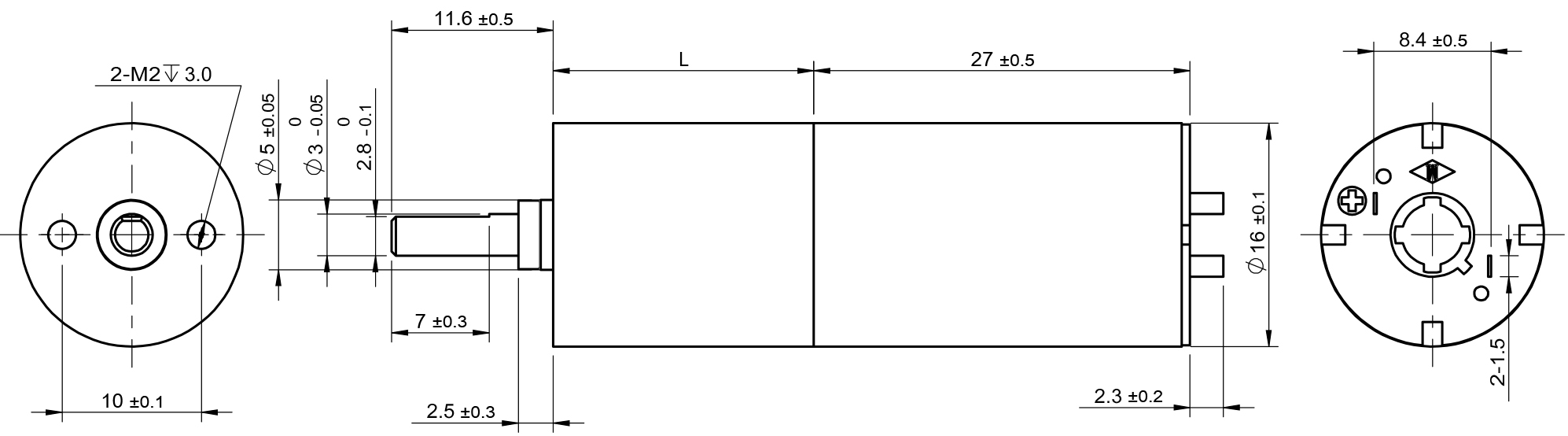

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 1627N5M21-113-12.0 B1635N2B01-450-12.0  C1627F34AH-0055-6.0
Voltage V 12.0 12.0 6.0
Terminal resistance Ω 11.8 0.35 8.8
No-load speed rpm 11300 45000 8600
No-load current mA 0.013 0.35 0.055
Stall torque mNm 10.1 85 3.75
Stall current mA 1.02 34 0.65
Nominal torque mNm 1.5 1.5 0.79
Nominal speed rpm 9620 43800 6800
Nominal current mA 0.16 0.96 0.18
Max.output power W 3 100 0.85
Max.efficiency % 79 81 51.9
Back-EMF constant mV/rpm 1 0.3 0.64
Torque constant mNm/A 10 2.5 6.28
Speed/torque gradient rpm/mNm 1100 530 2293
Rotor inertia gcm2 0.7 1.5 0.6
Weight g 25 40 16.7
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 4 14~29 53~157 231~690 1014~3027 　
Max. rated torque mNm 80 120 160 200 240 　
Max. momentary torque mNm 240 360 480 600 720 　
Length（L） mm 15.05 18.7 22.35 26 29.65 　
Shell material Metal
Gear processing technology Plastic injection
