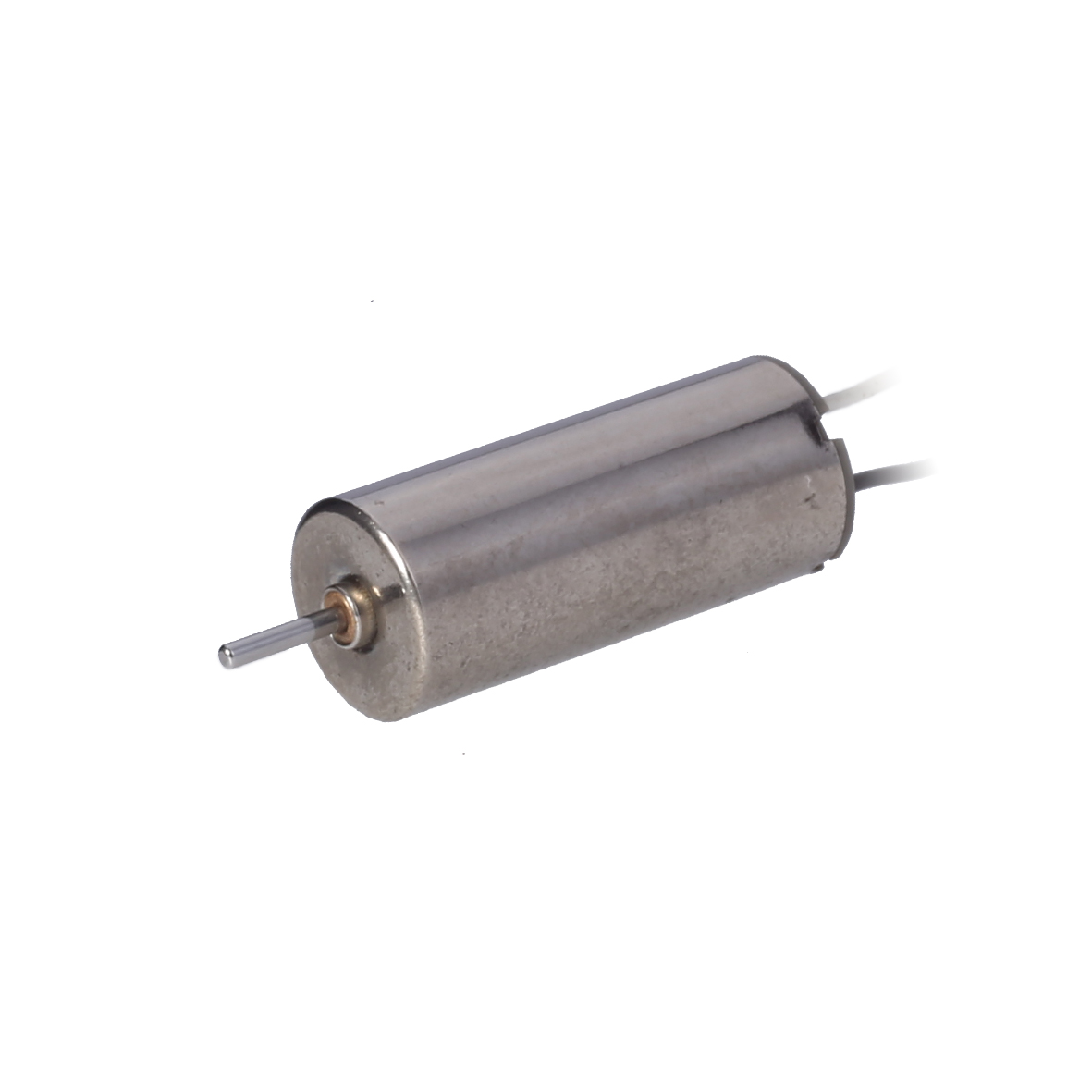

L0716N5M

7mm DC Coreless Motor Series

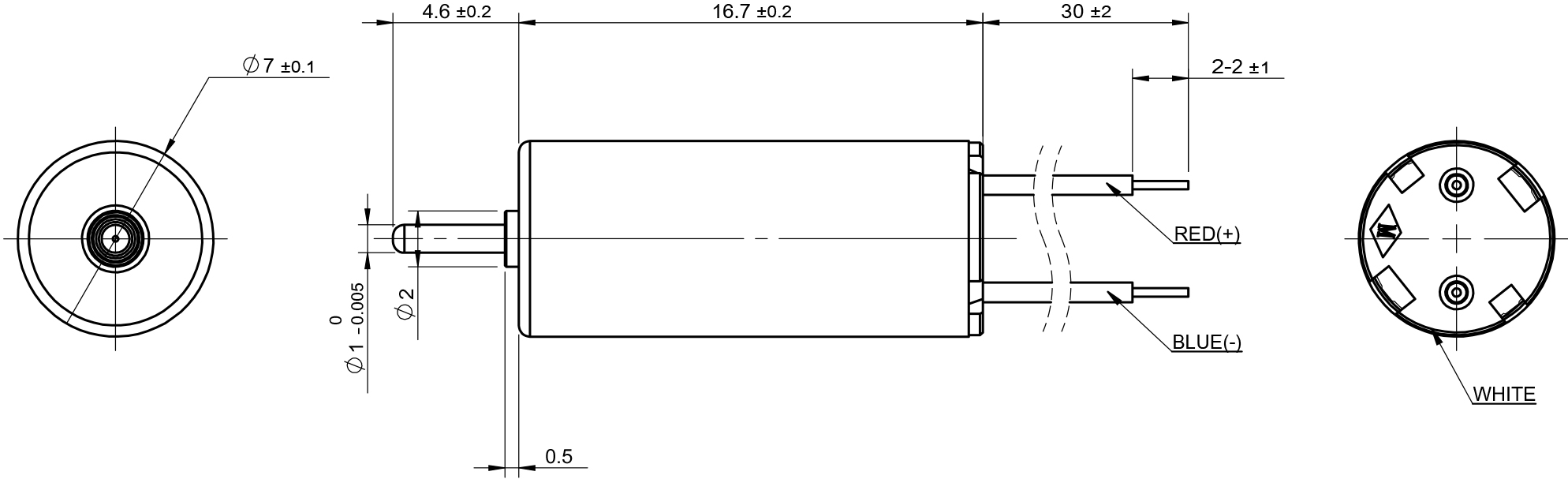

Width: 7mm; Length: 16.7mm; Voltage: 2.5v, 3.2v, 3.4v; No-load speed: 25000-43000rpm; Maximum output power: 0.53-2.3w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

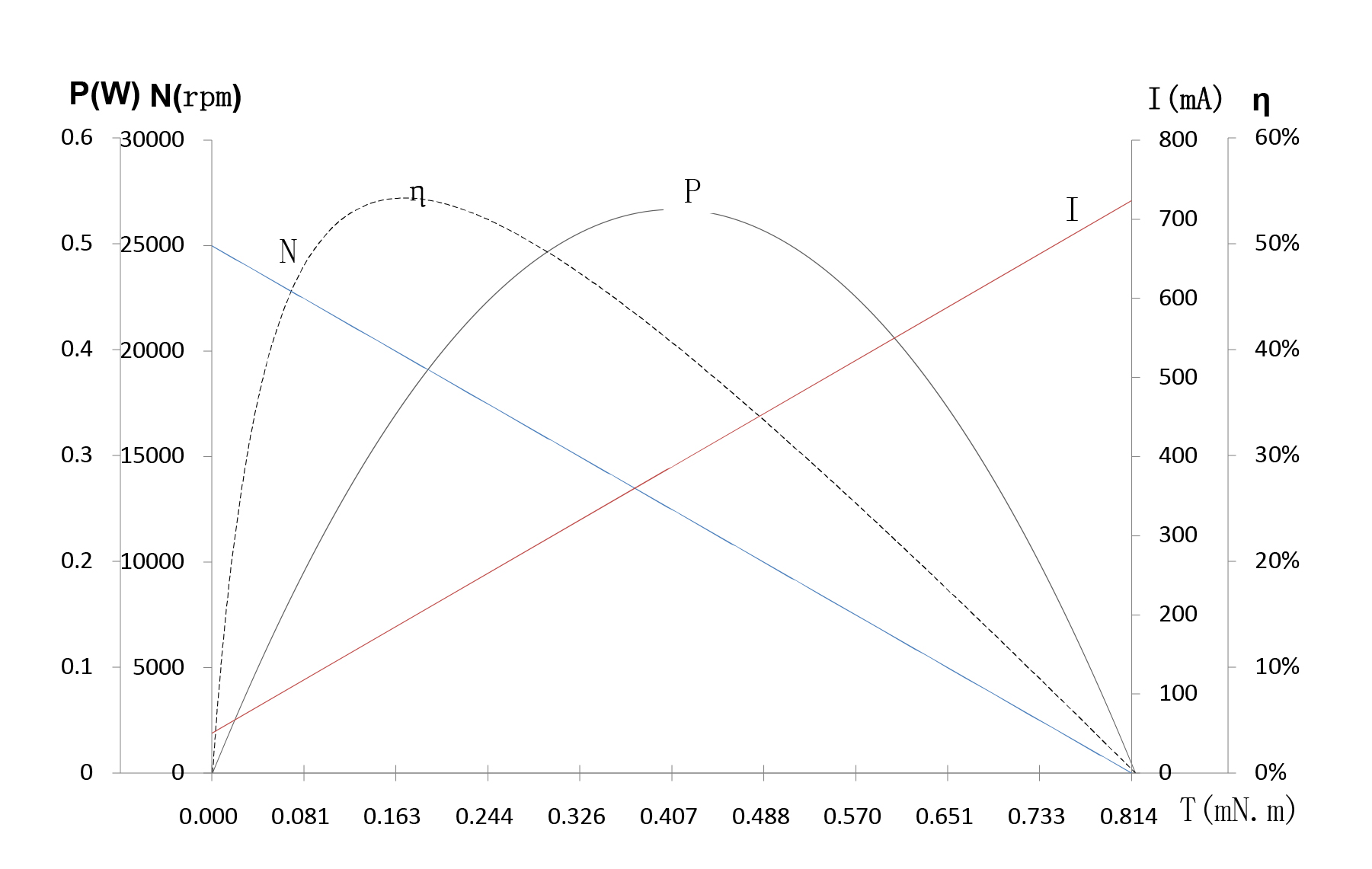

Nombre	Unidad	64-250-3.4	31-430-2.5	94-430-3.2
Voltage	V	3.4	2.5	3.2
Terminal resistance	Ω	4.7	0.66	1.1
No-load speed	rpm	25000	43000	43000
No-load current	mA	50	90	90
Stall torque	mNm	0.81	2	1.9
Stall current	mA	720	3790	2910
Load torque	mNm	0.5	0.5	0.5
Load speed	rpm	9640	32270	31920
Load current	mA	460	1010	820
Max.output power	W	0.53	2.3	2.2
Max.efficiency	%	54.6	71.6	68
Back-EMF constant	mV/rpm	0.13	0.06	0.07
Torque constant	mNm/A	1.21	0.54	0.69
Speed/torque gradient	rpm/mNm	30713	21457	22154
Weight	g	2.5	2.5	2.5
Rotor inertia	gcm²	0.05	0.05	0.05
Operating temperature range	°C	-20～+100	-20～+100	-20～+100
