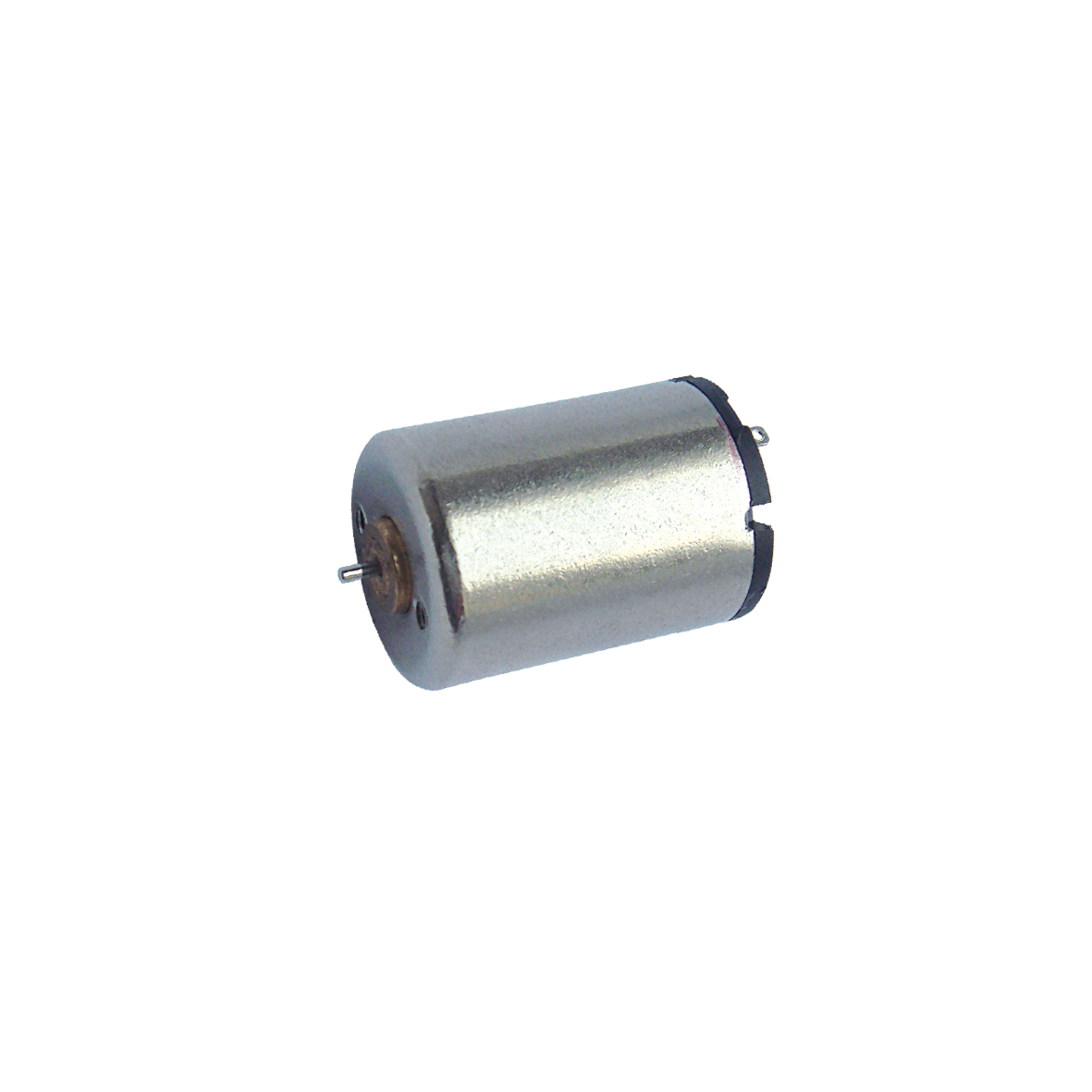

L1625N5M

16mm DC Coreless Motor Series

Width: 16mm; Length: 25.5mm; Voltage: 5.0v, 6.0v, 12.0v; No-load speed: 6000-18700rpm; Maximum output power: 1.4-10.9w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	25-88-6.0	35-60-5.0	54-170-12.0
Voltage	V	6.0	5.0	12.0
Terminal resistance	Ω	3.1	4.4	3.2
No-load speed	rpm	8800	6000	18700
No-load current	mA	25	25	60
Stall torque	mNm	12.3	8.6	22.3
Stall current	mA	1935	1136	3750
Load torque	mNm	3.5	1	3.8
Load speed	rpm	6290	5310	15470
Load current	mA	570	153	697
Max.output power	W	2.8	1.4	10.9
Max.efficiency	%	79	73	76
Back-EMF constant	mV/rpm	0.67	0.82	0.63
Torque constant	mNm/A	6.43	7.78	6.03
Speed/torque gradient	rpm/mNm	720	690	840
Weight	g	20.5	20.5	20.5
Rotor inertia	gcm²	0.7	0.7	0.7
Operating temperature range	°C	-20～+85	-20～+85	-20～+85
