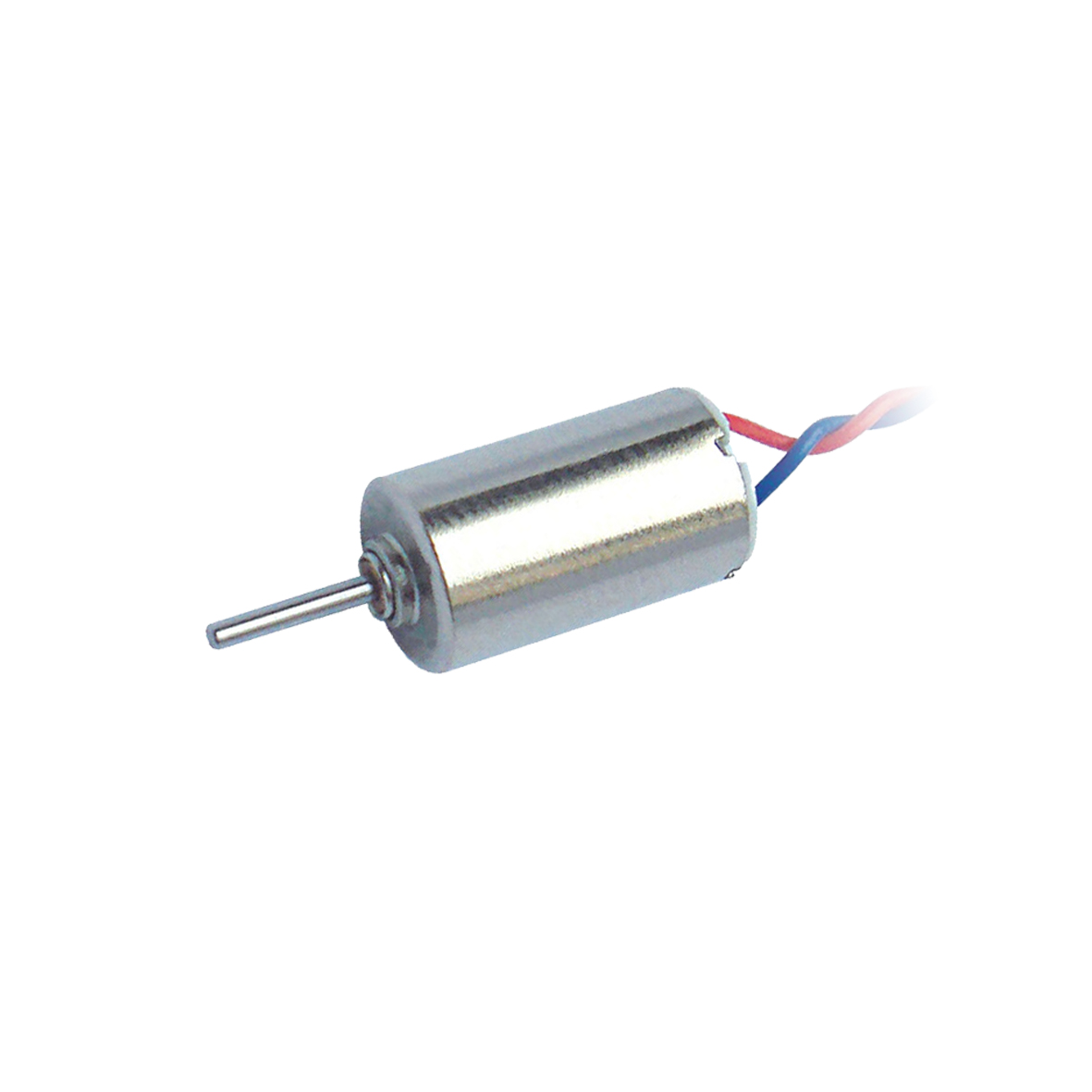

L0609N3M

6mm DC Coreless Motor Series

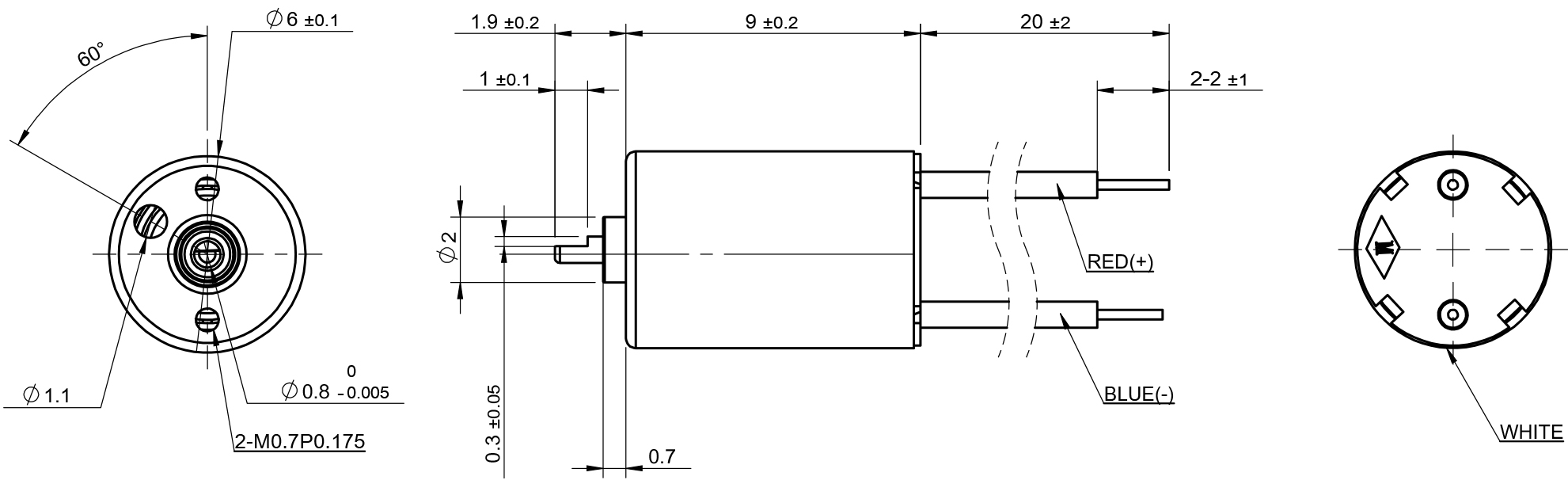

Width: 6mm; Length: 9mm; Voltage: 3.0v; No-load speed: 34000-49000rpm; Maximum output power: 0.11-0.22w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	58-340-3.0	09-490-3.0	10-435-3.0
Voltage	V	3.0	3.0	3.0
Terminal resistance	Ω	13.5	7.8	7.7
No-load speed	rpm	34000	49000	43500
No-load current	mA	40	50	65
Stall torque	mNm	0.126	0.17	0.18
Stall current	mA	222	385	390
Load torque	mNm	0.05	0.05	0.05
Load speed	rpm	20510	34590	31280
Load current	mA	110	150	160
Max.output power	W	0.11	0.22	0.2
Max.efficiency	%	33.2	40.9	35
Back-EMF constant	mV/rpm	0.07	0.05	0.06
Torque constant	mNm/A	0.69	0.51	0.55
Speed/torque gradient	rpm/mNm	269841	288235	244382
Weight	g	1	1	1
Rotor inertia	gcm²	0.008	0.008	0.008
Operating temperature range	°C	-20～+65	-20～+65	-20～+65
