BH2260NH2B

2260 Slotless High-efficiency Motor
Diameter: 22mm; Length: 60mm; Voltage: 24.0v, 36.0v, 48.0v; Max output power: 748 - 752W; Speed: 50,000 rpm; Rated torque: 14mNm.

Application : Medical, automation equipment, precision instruments, and other precision drive fields.
Customizable : Specifications, wire length, shaft length, performance, bearings, gearbox, encoder, driver

Ask for datasheet

Customized Assessment

Ask for a quotation

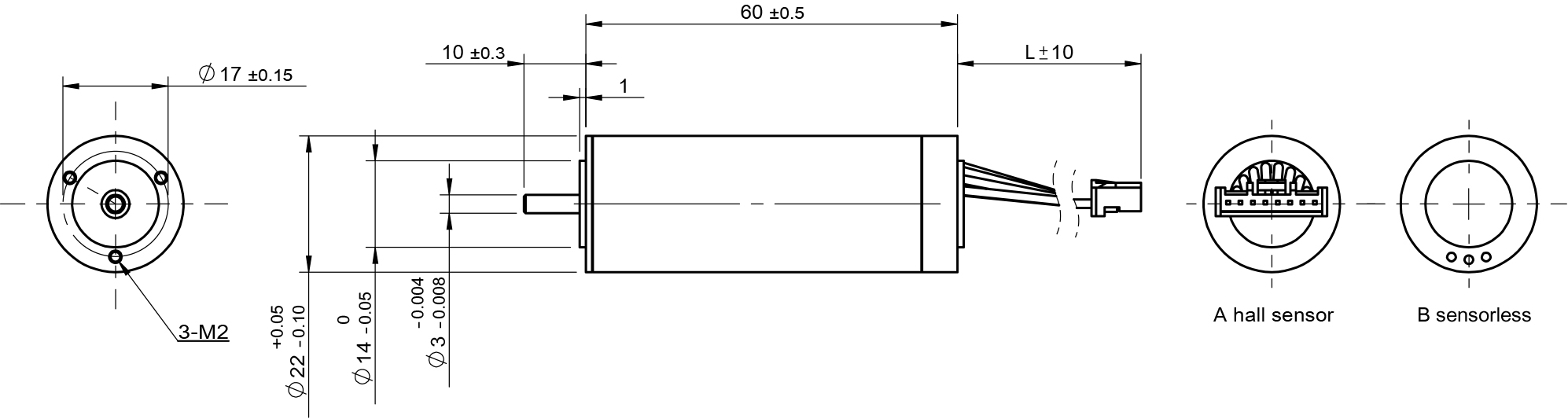

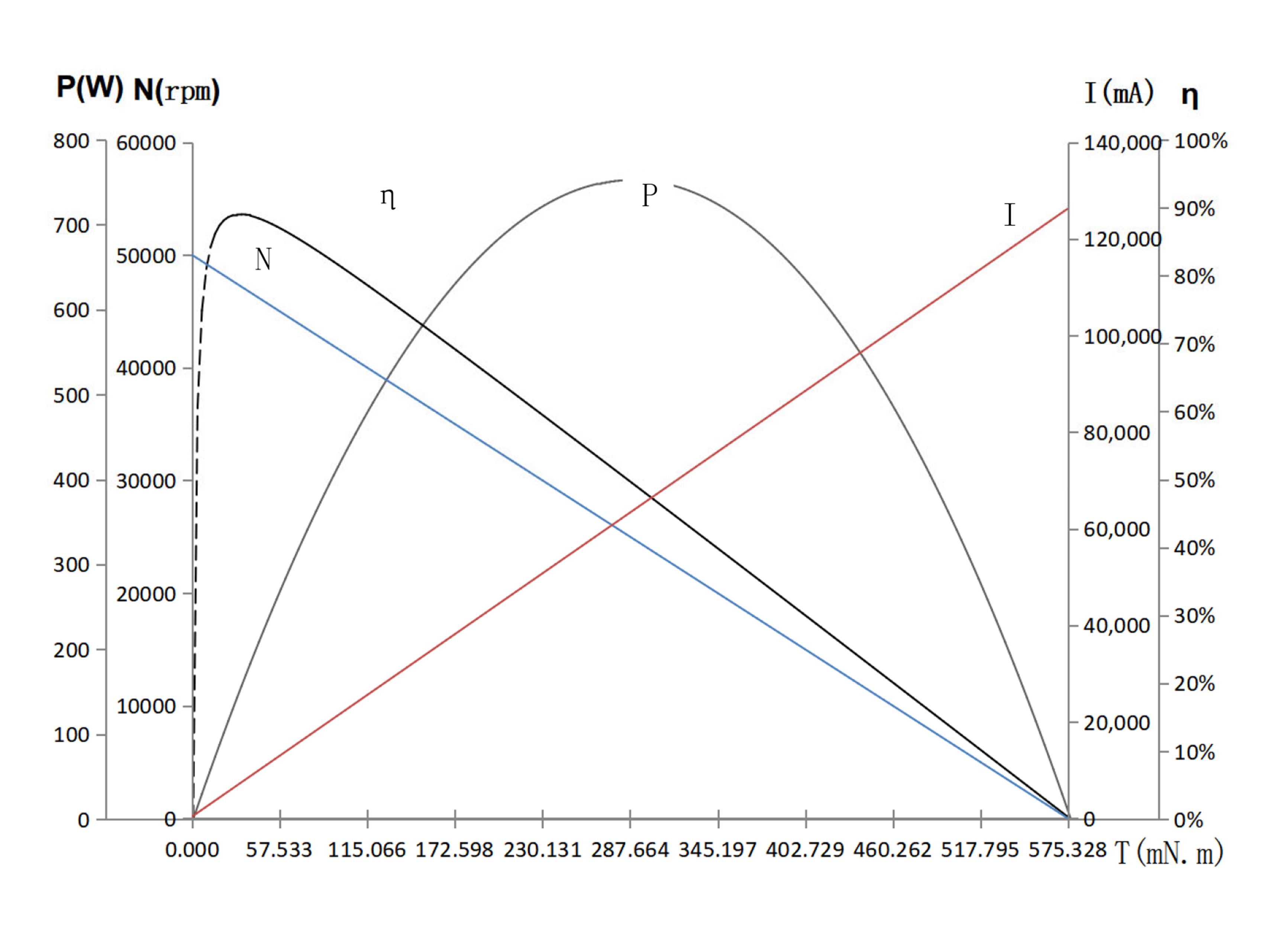

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	01-500-24.0	02-500-36.0	03-500-48.0
Voltage	V	24.0	36.0	48.0
Terminal resistance	Ω	0.19	0.43	0.76
No-load speed	rpm	50000	50000	50000
No-load current	mA	0.4	0.26	0.21
Stall torque	mNm	575	572	575
Stall current	mA	126.32	83.72	42.48
Nominal torque	mNm	14	14	14
Nominal speed	rpm	48750	48750	48750
Nominal current	mA	3.55	2.35	1.78
Max.output power	W	752	748	752
Max.efficiency	%	89	89	89
Back-EMF constant	mV/rpm	0.478	0.718	0.957
Torque constant	mNm/A	4.569	6.854	9.137
KV Value	rpm/V	2083	1388	1040
Speed/torque gradient	rpm/mNm	87	87	87
Rotor inertia	gcm2	2.53	2.53	2.53
Weight	g	107	107	107
