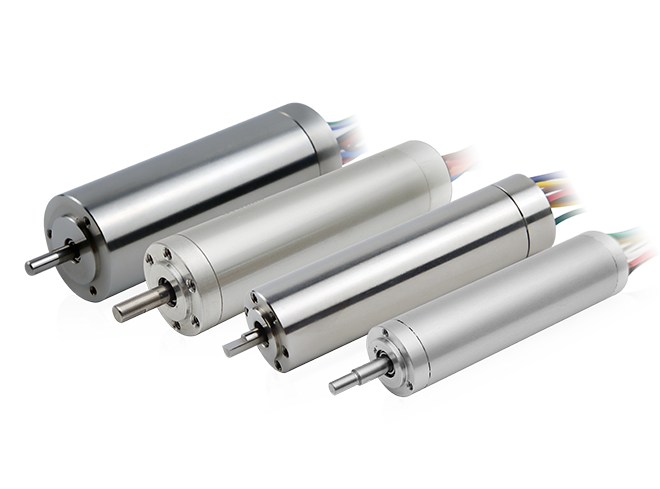

Slotless Inner Rotor High-Efficiency

Products Brushless DC Motor Slotless Inner Rotor High-Efficiency

Slotless Inner Rotor High-Efficiency

Featuring high-density coreless coils, the motor delivers high efficiency, low loss, and minimal temperature rise during intermittent operation. Service life exceeds 5,000 hours under rated load. Designed for high-speed applications (40,000-65,000 rpm), it offers exceptional temperature tolerance: standard models operate at -20°C to 85°C, while customized versions achieve -40°C to 150°C

Application Fields: Medical devices, industrial equipment, and other precision motion systems.

Model	Specification(MM)	Voltage (V)	No-load current(mA)	No-load speed (RPM)	Nominal torque（mNm）	Max.output power（W）
BH1350NH2B	φ15*50	24	200	50000	3	128
BH1659NH2B	φ16*58.6	32	120	42500	17	178
BH1960NH2B	φ19*60	36	200	48200	18	452
BH2245NH2B	φ22*45	24	330	49200	16	510
BH2260NH2B	φ22*60	24	400	50000	14	752
