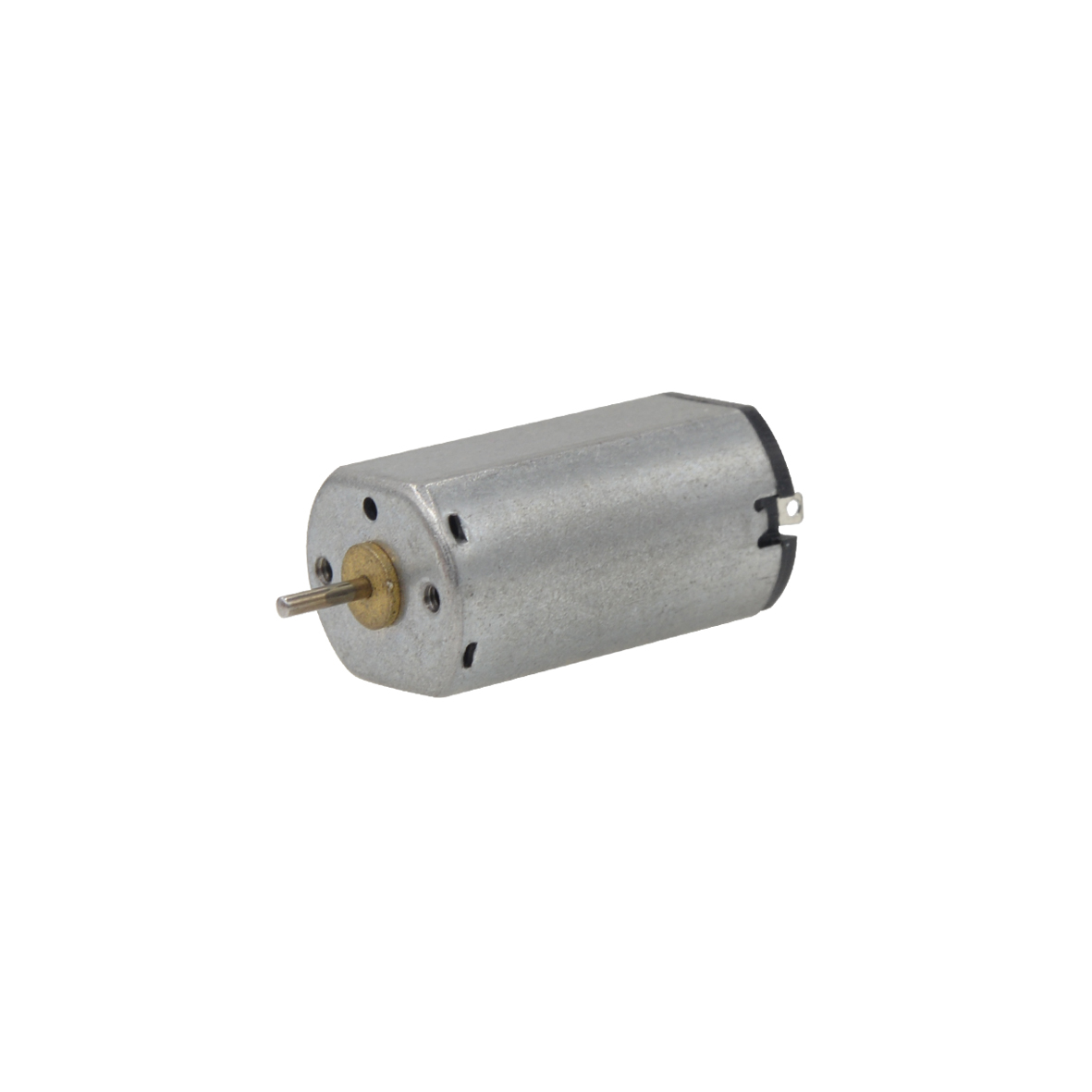

C1220F

12mm DC Coreless Motor Series

Width: 12mm; Length: 20.6mm; Voltage: 4.5v, 5.0v, 6.0v; No-load speed: 9500-18500rpm; Maximum output power: 0.42-1.75w.

Applications: security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools, etc.

Customizable options: Specifications, lead length, shaft length, performance, bearings, gearboxes, encoders, drives

Unit price: Quote according to customer quantity and solution requirements

Nombre	Unidad	35-0083	35-0103	35-0158
Voltage	V	6.0	5.0	4.5
Terminal resistance	Ω	7.4	2.5	10
No-load speed	rpm	13800	18500	9500
No-load current	mA	50	70	45
Stall torque	mNm	2.6	3.6	1.7
Stall current	mA	846	2043	693
Load torque	mNm	0.294	0.294	0.196
Load speed	rpm	12240	17000	8400
Load current	mA	140	230	120
Max.output power	W	0.94	1.75	0.42
Max.efficiency	%	48	48.7	34.5
Back-EMF constant	mV/rpm	0.41	0.26	0.43
Torque constant	mNm/A	3.27	1.82	2.62
Speed/torque gradient	rpm/mNm	5306	5139	5588
Weight	g	7.9	7.8	7.8
Varistor	Yes/No	Yes	Yes	Yes
Operating temperature range	°C	-20～+80	-20～+80	-20～+80
