Coreless Brushless Motor

10**NH...M...

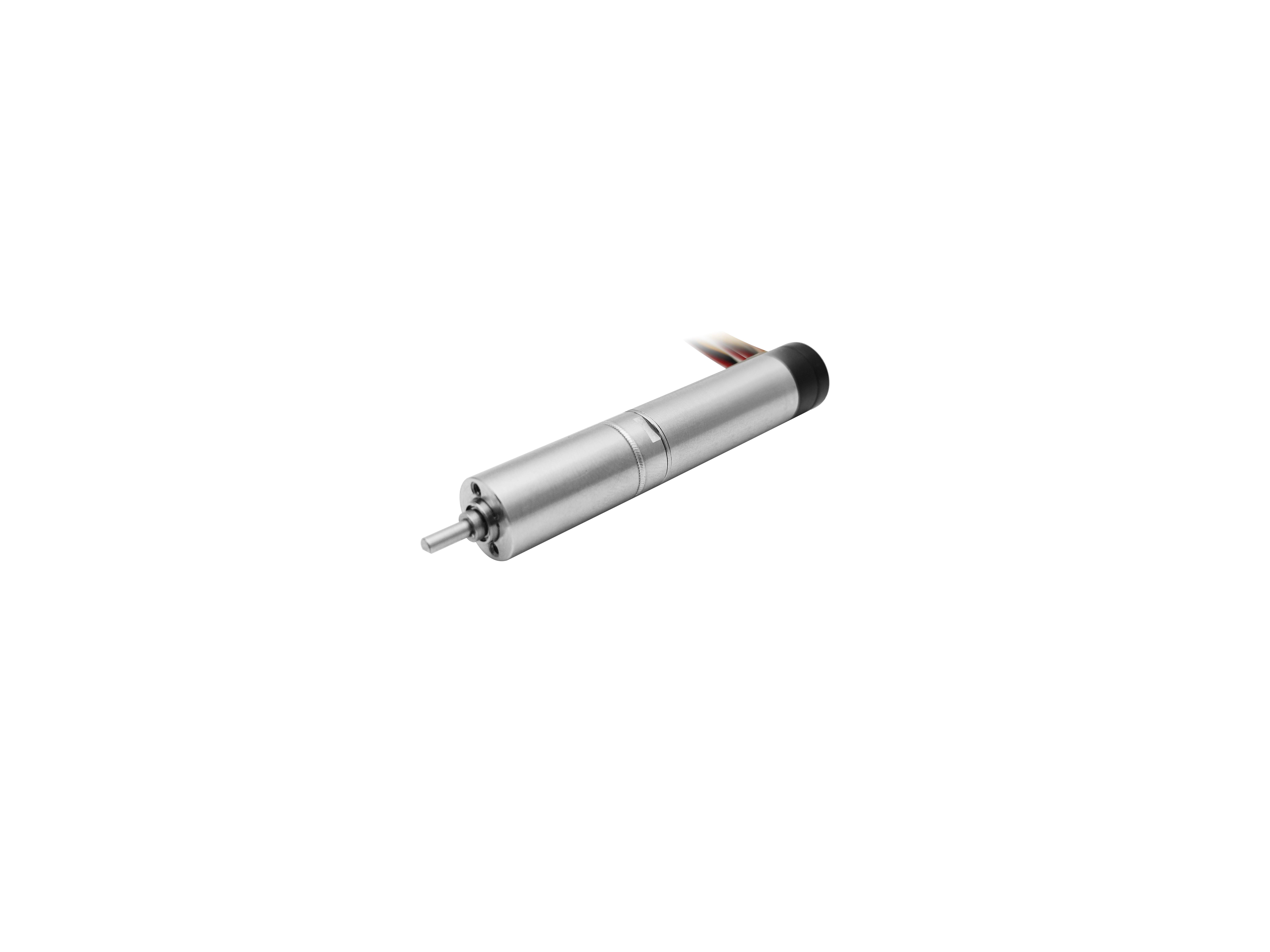

10mm hollow cup brushless servo motor

Diameter: 10mm Length: 38-51mm; Voltage: 7.4v; Gearbox: Metal planetary gear;

Encoder: Magnetic encoder; Manufacturer: Shenzhen Micromotor Factory; Brand: Constar

Applications: medical equipment, intelligent prostheses, industrial robots, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox, encoder, driver

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

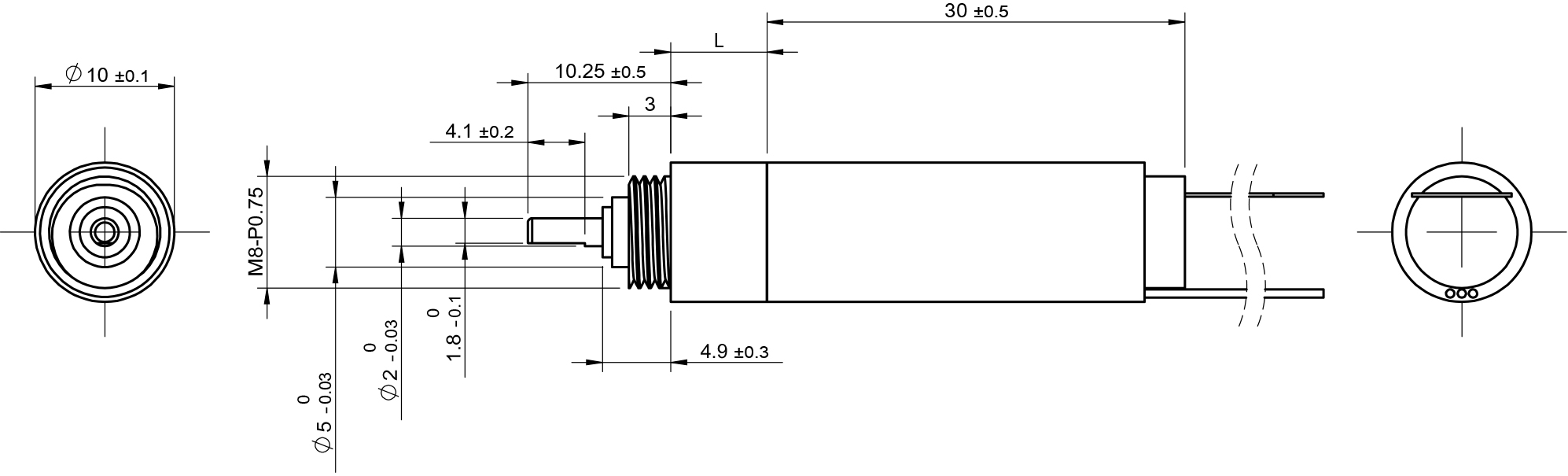

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad B1023NH2B05-382-7.4
Voltage V 7.4
Terminal resistance Ω 1.4
No-load speed rpm 38200
No-load current mA 0.3
Stall torque mNm 8.7
Stall current mA 5.3
Nominal torque mNm 1.7
Nominal speed rpm 30750
Nominal current mA 1.27
Back-EMF constant mV/rpm 0.18
Torque constant mNm/A 1.75
  Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 4 16 64 256 1024 4096
Max. rated torque 5 10 30 40 50 60
Max. momentary torque 15 30 90 120 150 180
Length（L） 9.7 12.8 15.9 19 22.1 25.2
Shell material Metal
Gear processing technology Metal CNC
Encoder 　 　 　 　
Number of channels 　 2 3 　
Counts per turn cpt 12,16,64,256,512 12,16,64,256,512 　
Supply voltage V 5.0 （5.0） 5.0 （5.0） 　
Max. speed rpm 40000 40000 　
Phase shift °e 90±45 90±45 　 　
Output signal 　 TTL TTL 　 　
