Planetary Gear Motor

BO43**...42*P...

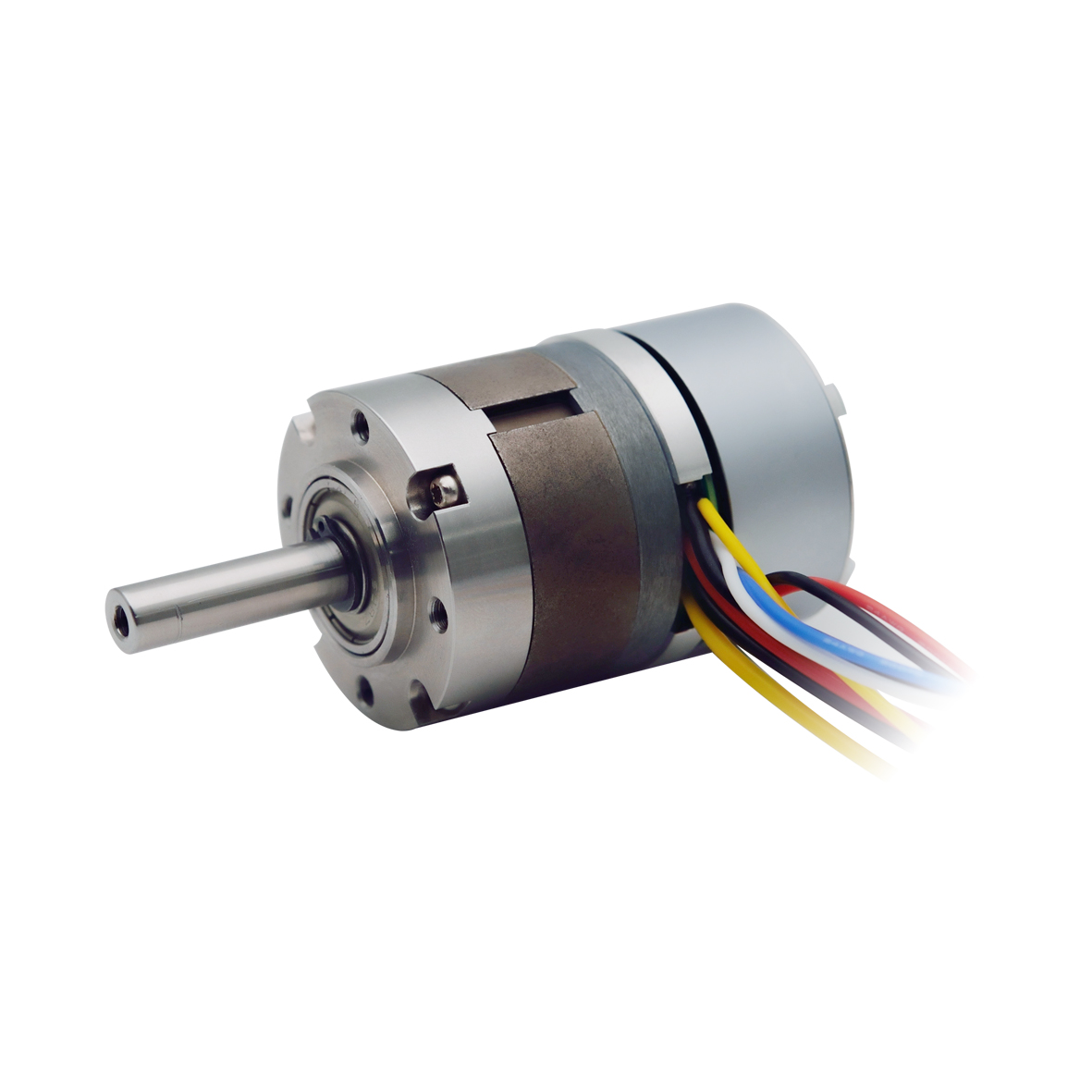

43mm planetary gear reduction motor

Diameter: 43mm; Length: 60~86mm; Voltage: 24v, 36v, 48v; Reduction ratio: 3.65~393;

Gearbox: planetary metal, powder metallurgy.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

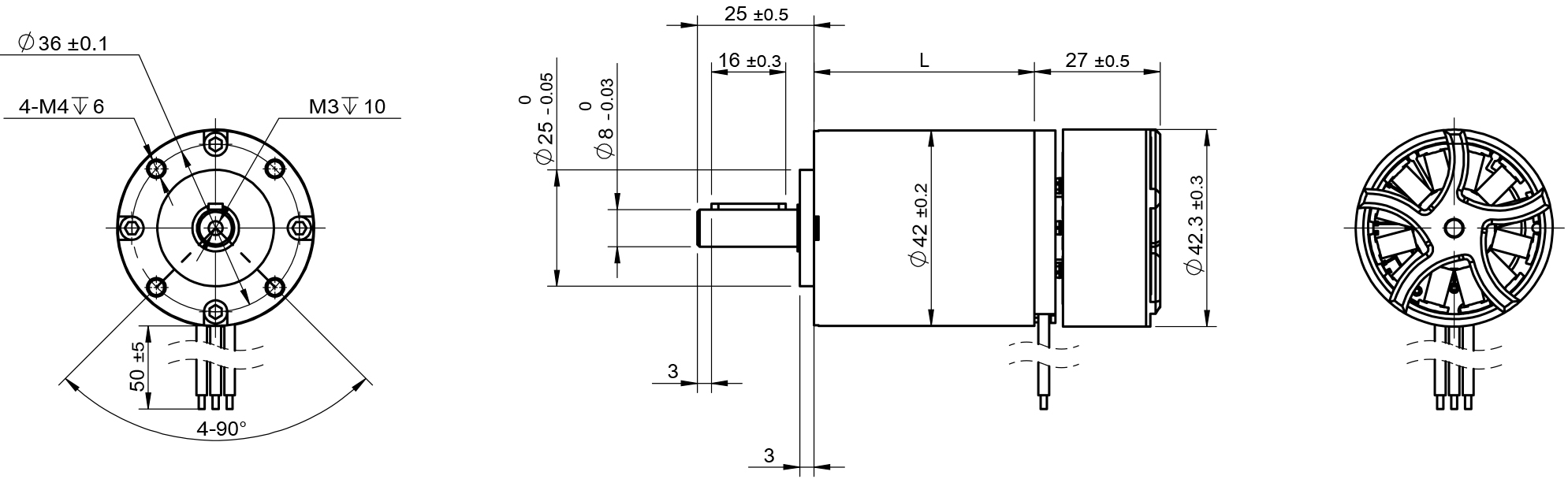

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 3257N9C2B01-54-12.0 3257N9C2B02-64-24.0 3257N9C2B08-74-24.0
Voltage V 48.0 36.0 24.0
Terminal resistance Ω 1 0.45 0.21
No-load speed rpm 9200 9200 9200
No-load current mA 0.3 0.5 0.6
Stall torque mNm 2361 2952 2817
Stall current mA 48 80 114
Nominal torque mNm 192 190 194
Nominal speed rpm 7000 7000 7000
Nominal current mA 3.6 4.8 7.2
Max.output power W 569 711 678
Max.efficiency % 84.8 84.8 86
Back-EMF constant mV/rpm 5.18 3.89 2.6
Torque constant mNm/A 49.5 37.1 24.8
Speed/torque gradient rpm/mNm 3.9 3.1 3.3
Rotor inertia gcm2 153 153 153
Weight g 132 132 132
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 3.65~8.63 28~58 67~393 　 　 　
Max. rated torque mNm 3000 7500 15000 　 　 　
Max. momentary torque mNm 6000 15000 30000 　 　 　
Length（L） mm 33.8 47.4 61 　 　 　
Shell material Metal
Gear processing technology Metal CNC
