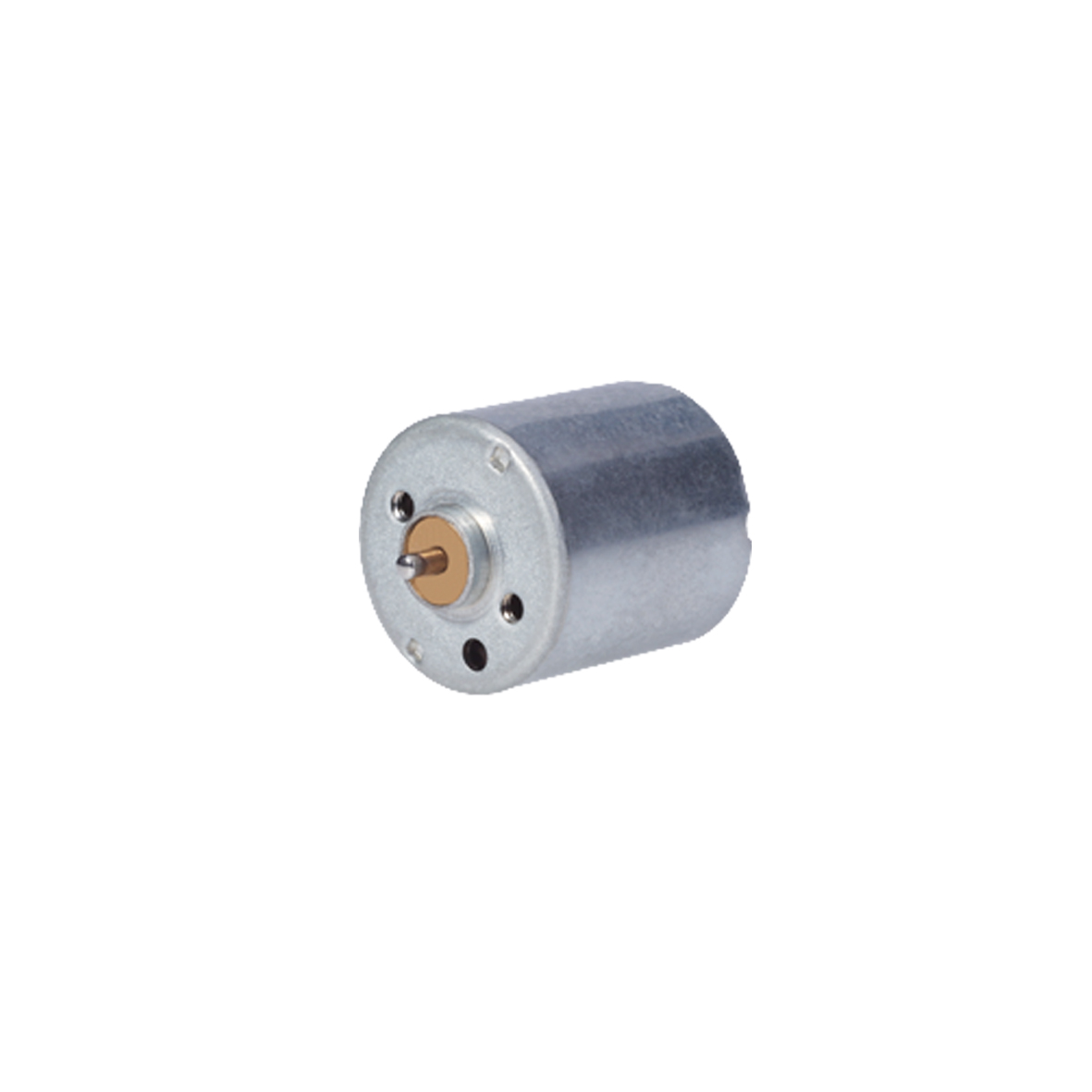

C1718R

17mm DC Coreless Motor Series

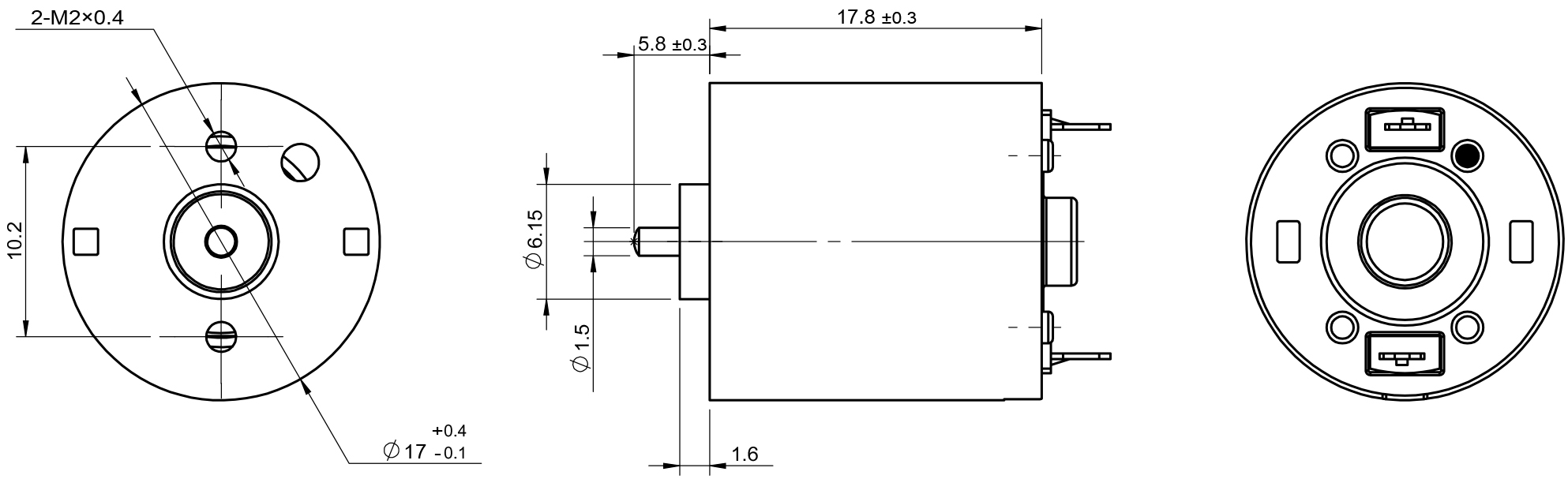

Width: 17mm; Length: 17.8mm; Voltage: 6.0v, 7.4v, 11.0v; No-load speed: 16000-25200rpm; Maximum output power: 1.6-3.71w.

Applications: security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools, etc.

Customizable options: Specifications, lead length, shaft length, performance, bearings, gearboxes, encoders, drives

Unit price: Quote according to customer quantity and solution requirements

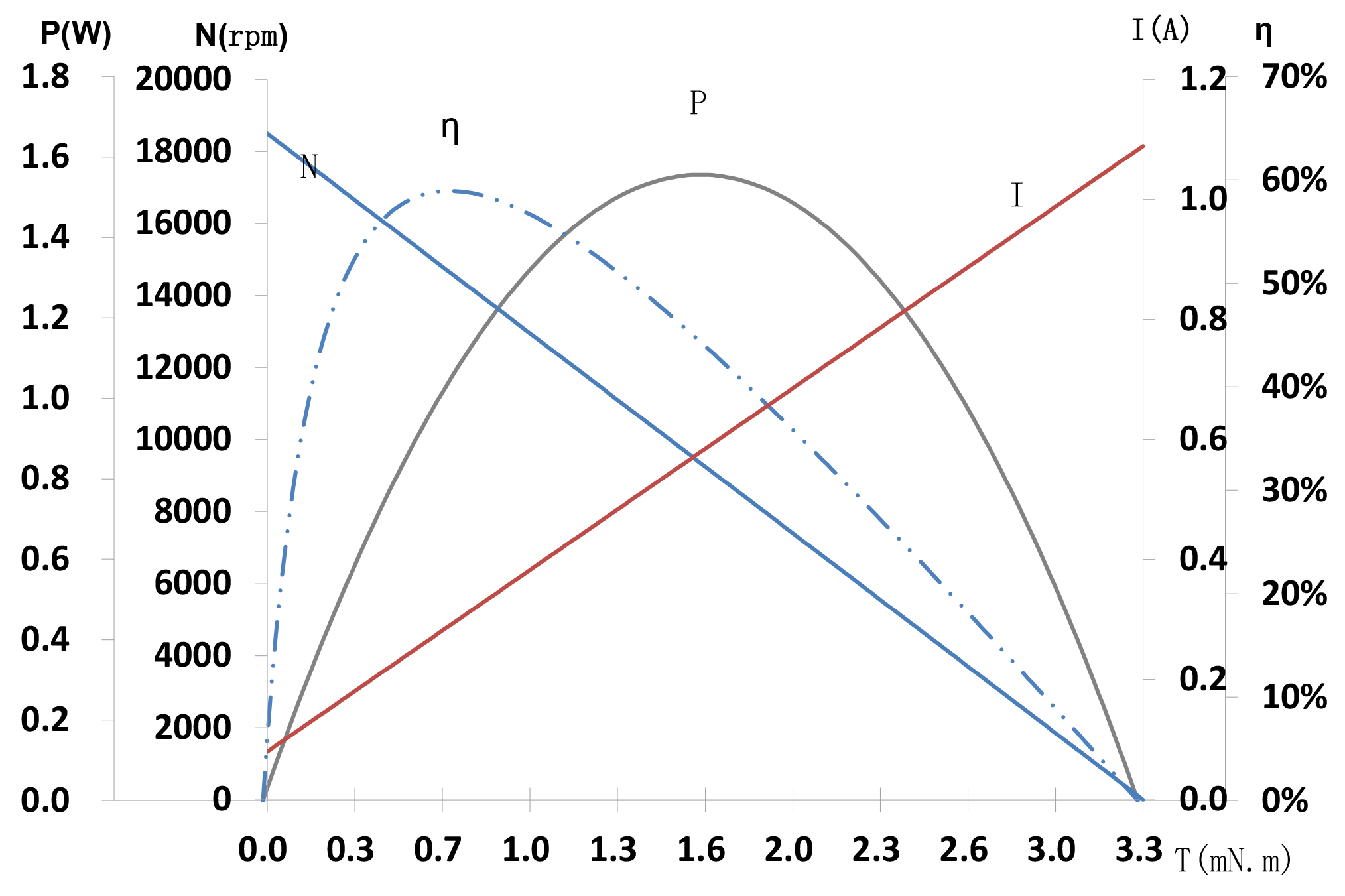

Nombre	Unidad	14-0025	34B-0059	14B-0091
Voltage	V	6.0	7.4	11.0
Terminal resistance	Ω	4	3	5.1
No-load speed	rpm	18500	16000	25200
No-load current	mA	80	70	80
Stall torque	mNm	3.3	6.53	5.61
Stall current	mA	1089	1670	1569
Load torque	mNm	0.39	0.49	0.49
Load speed	rpm	16300	14800	23000
Load current	mA	200	190	210
Max.output power	W	1.6	2.74	3.71
Max.efficiency	%	60.6	61.1	57.2
Back-EMF constant	mV/rpm	0.31	0.45	0.42
Torque constant	mNm/A	3.27	4.08	3.77
Speed/torque gradient	rpm/mNm	5612	2449	4490
Weight	g	12.6	14.5	12.8
Varistor	Yes/No	Yes	Yes	Yes
Operating temperature range	°C	-20～+80	-20～+80	-20～+80
