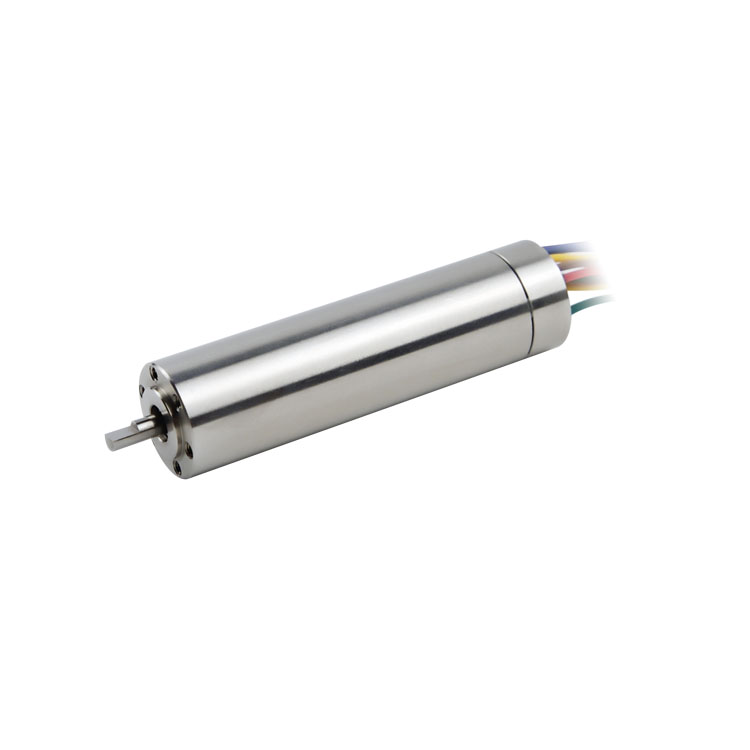

BH1659NH2B

16mm high-efficiency high-speed brushless motor
Diameter: 16mm; Length: 58.6mm; Voltage: 24.0v, 32.0v, 48v; Max output power: 178 - 375W; Speed: 425,000 - 560,000 rpm; Rated torque: 13 - 17 mNm.

Application : Medical, automation equipment, precision instruments, and other precision drive fields.
Customizable : Specifications, wire length, shaft length, performance, bearings, gearbox, encoder, driver

Ask for datasheet

Customized Assessment

Ask for a quotation

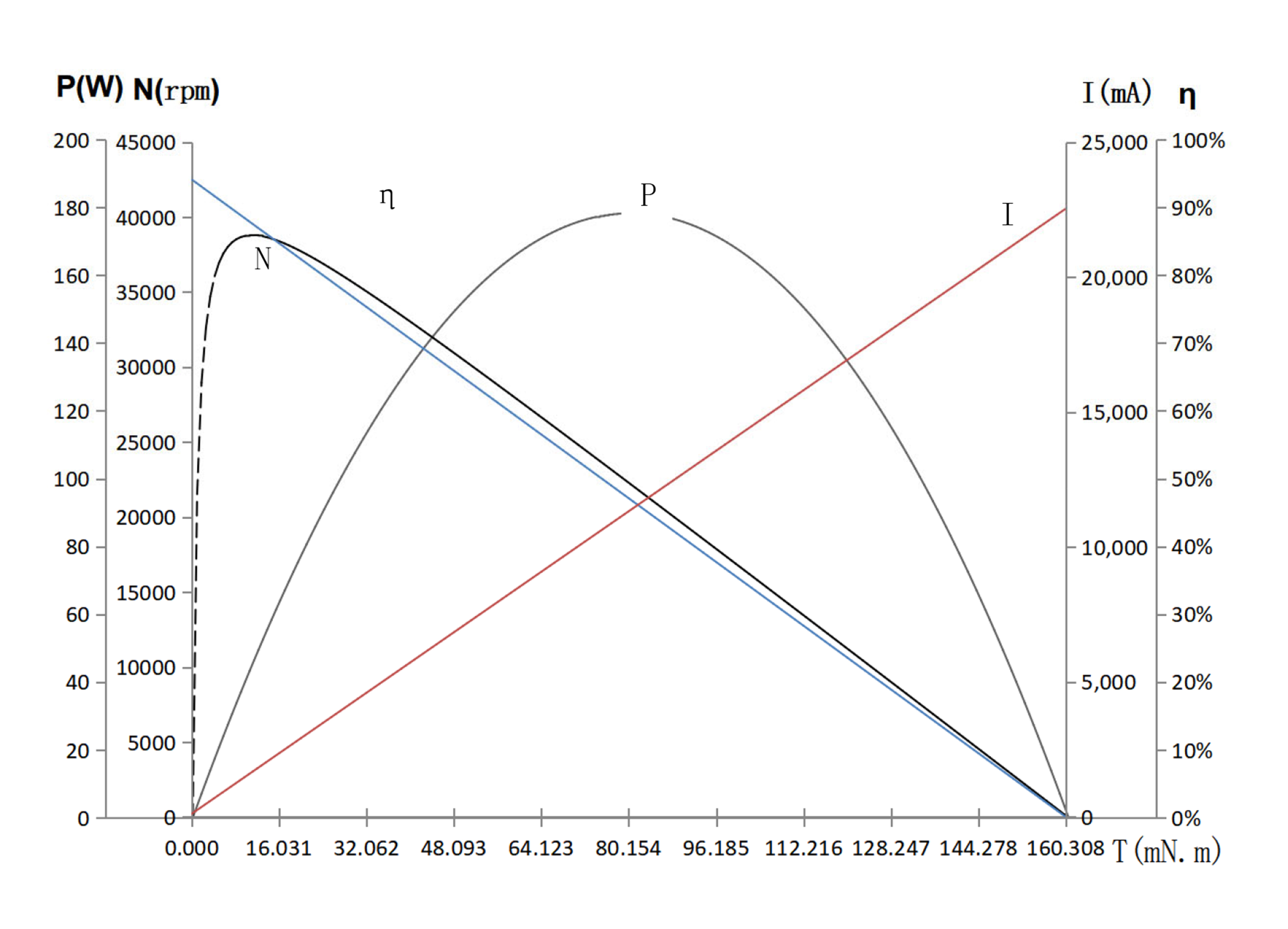

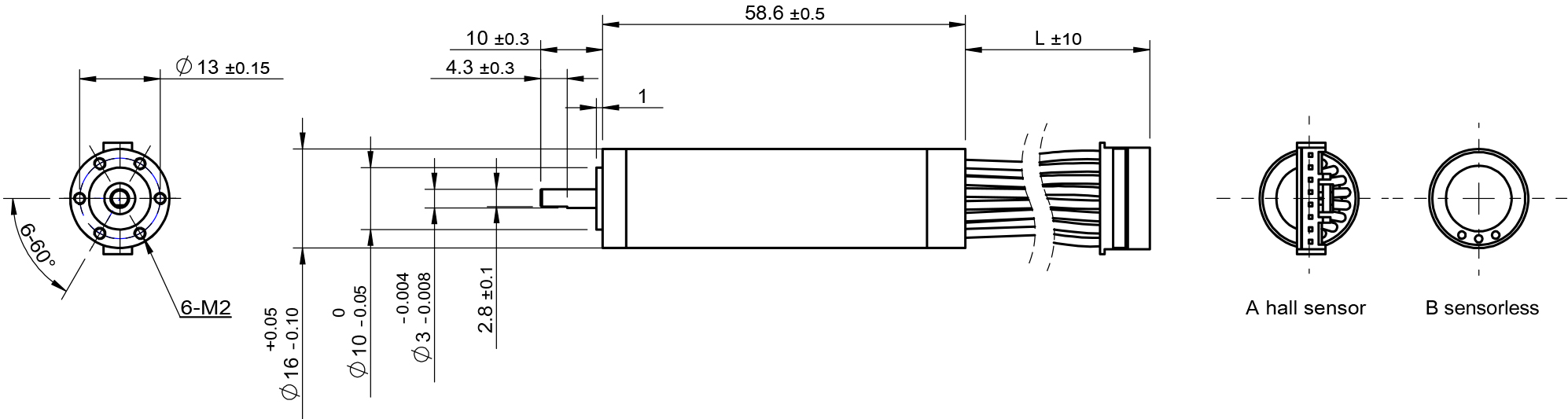

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	01-510-24.0	02-425-32.0	03-560-48.0
Voltage	V	24.0	32.0	48.0
Terminal resistance	Ω	0.5	1.42	1.52
No-load speed	rpm	51000	42500	56000
No-load current	mA	0.2	0.12	0.15
Stall torque	mNm	213.9	160	256
Stall current	mA	48	22.5	31.6
Nominal torque	mNm	14	17	13
Nominal speed	rpm	47700	38000	53200
Nominal current	mA	3.3	2.5	1.7
Max.output power	W	285	178	375
Max.efficiency	%	87	86	86
Back-EMF constant	mV/rpm	0.469	0.749	0.853
Torque constant	mNm/A	4.5	7.1	8.1
KV Value	rpm/V	2125	1888	1166
Speed/torque gradient	rpm/mNm	238	266	219
Rotor inertia	gcm2	1.59	1.59	1.59
Weight	g	85	85	85
