C1020...10PP...（3）

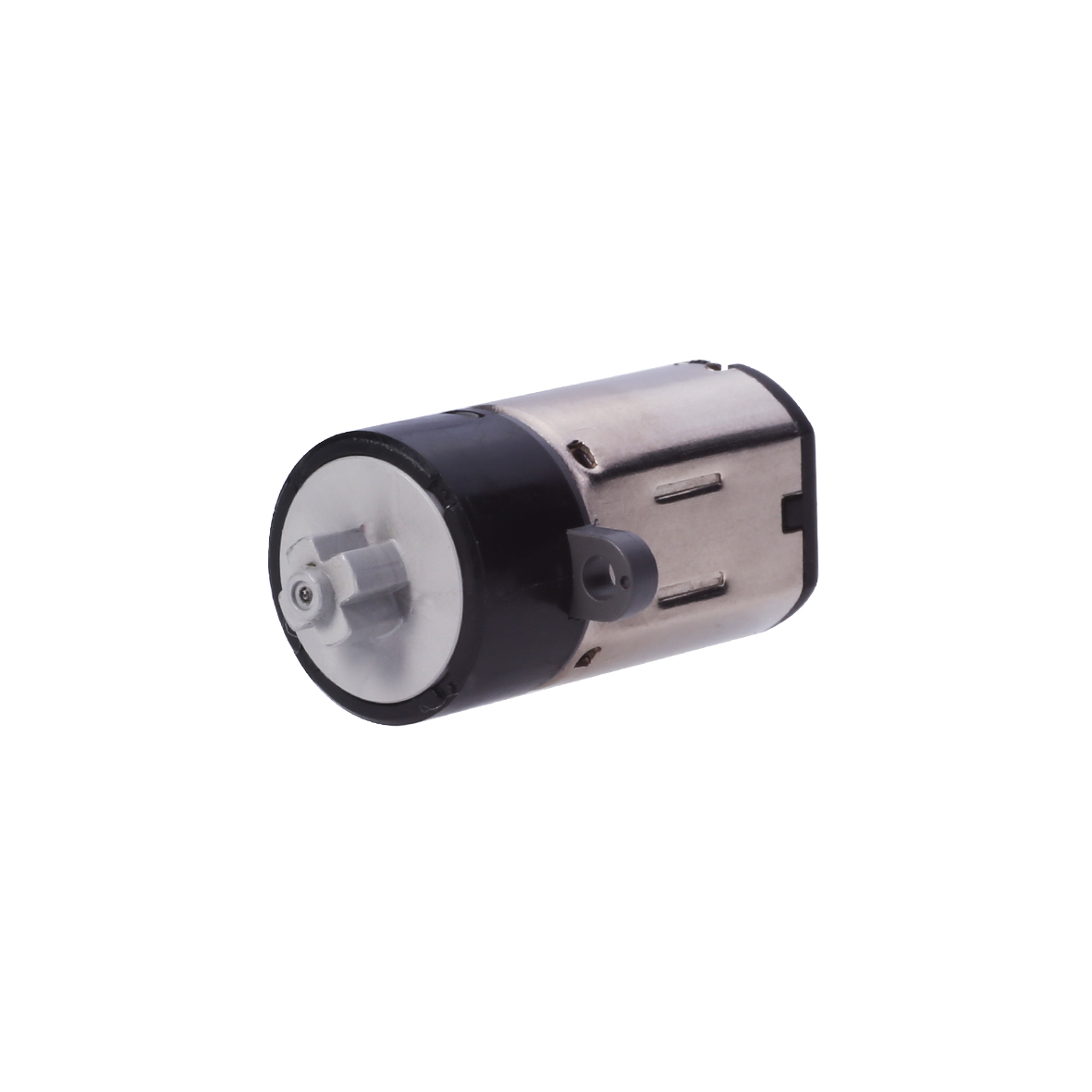

10mm plastic planetary reducer motor

Diameter: 10mm Length: 19.5mm Voltage: 2.5v, 3.0v; Speed: 110, 178rpm Gear: Plastic planetary gear reducer Manufacturer: Shenzhen Guangming, Chongqing

Applications: medical equipment, security systems and locks, audio and visual producks, personal healthcare products, and high-end hobby products.

Customizable options: wire length, shaft length, performance,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet

Customized Assessment

Ask for a quotation

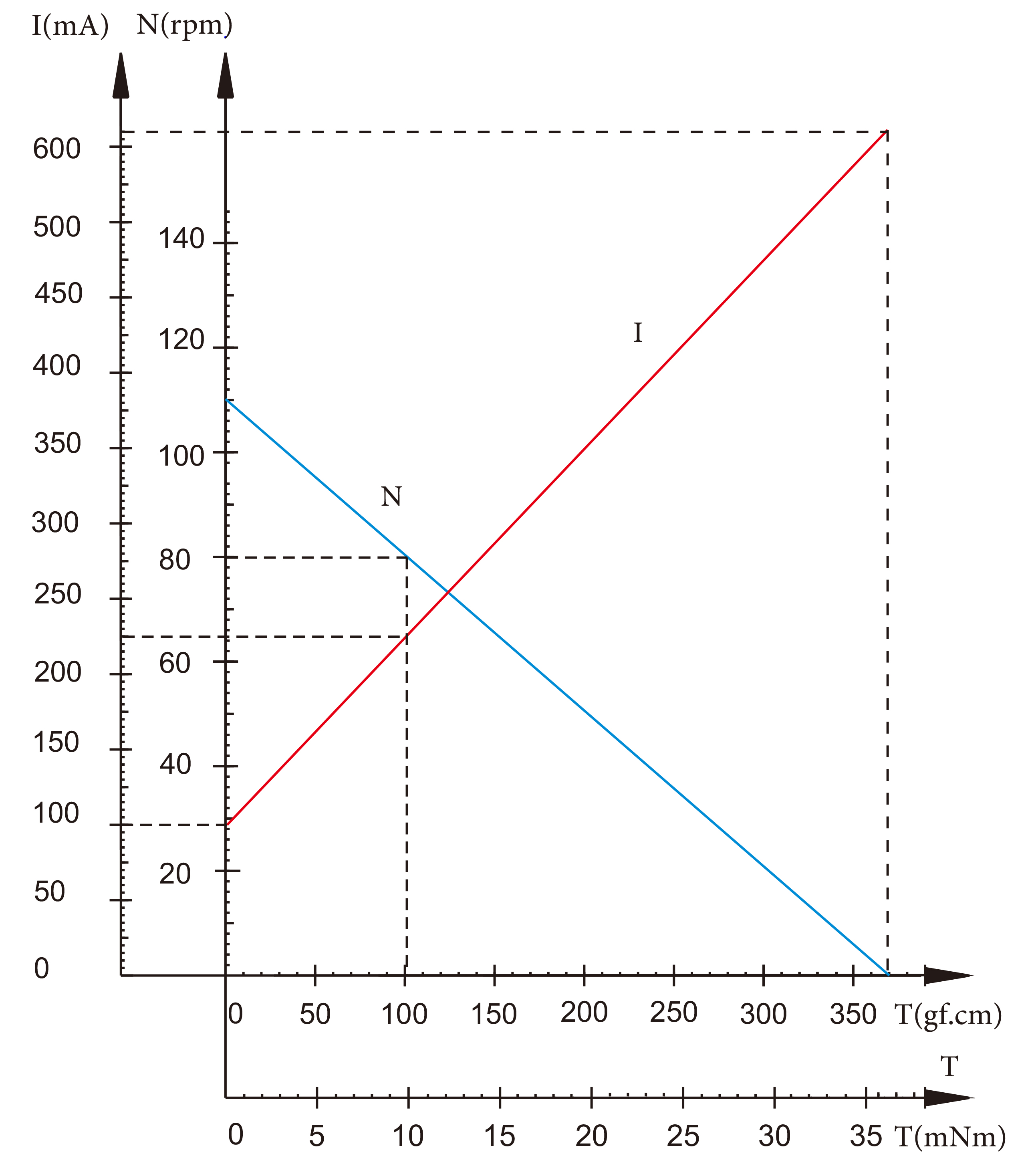

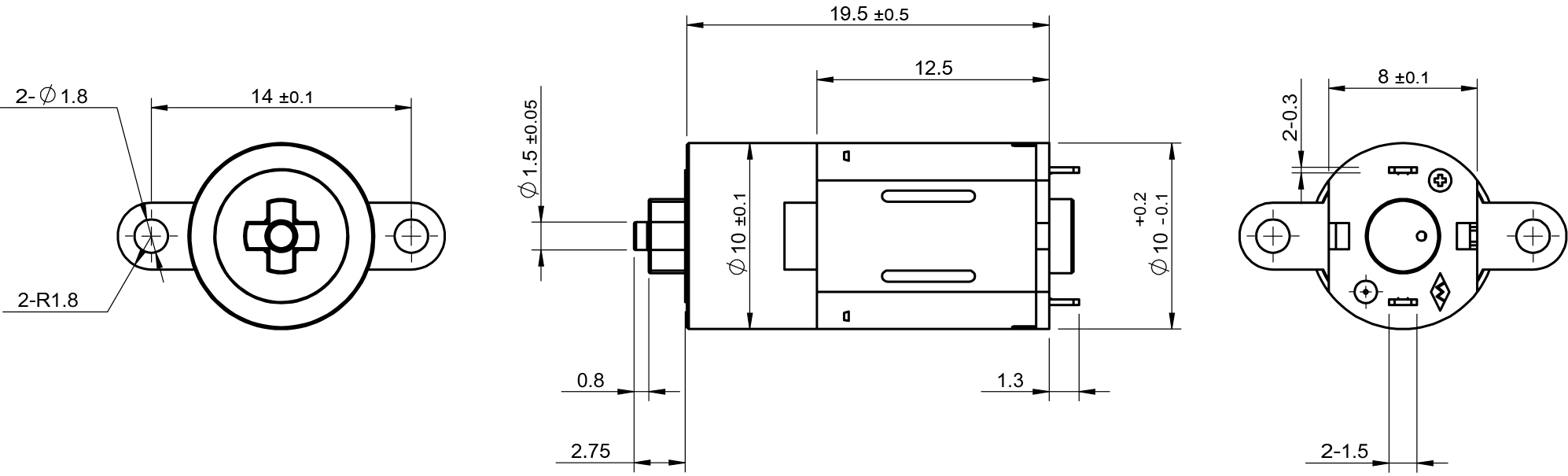

Parameter Outline Drawing Characteristic Curve Download

Nombre	Unidad	C1020-110-2.5-10PP171-0053	C1019-80-3.0-10PRC171-0108	C1019-110-3.0-10PRC171-0078
Voltage	V	2.5	2.5	3.0
Terminal resistance	Ω	3.7	3.5	1.8
No-load speed	rpm	110	110	178
No-load current	mA	100	80	90
Max torque	mNm	37.2	37.2	72
Load torque	mNm	9.8	9.8	9.8
Load speed	rpm	80	80	153
Load current	mA	230	240	320
Reduction ratio		1/171	1/171	1/171
Weight	g	3.8	3.8	3.8
Operating temperature range	℃	-10～+70	-10～+70	-10～+70
