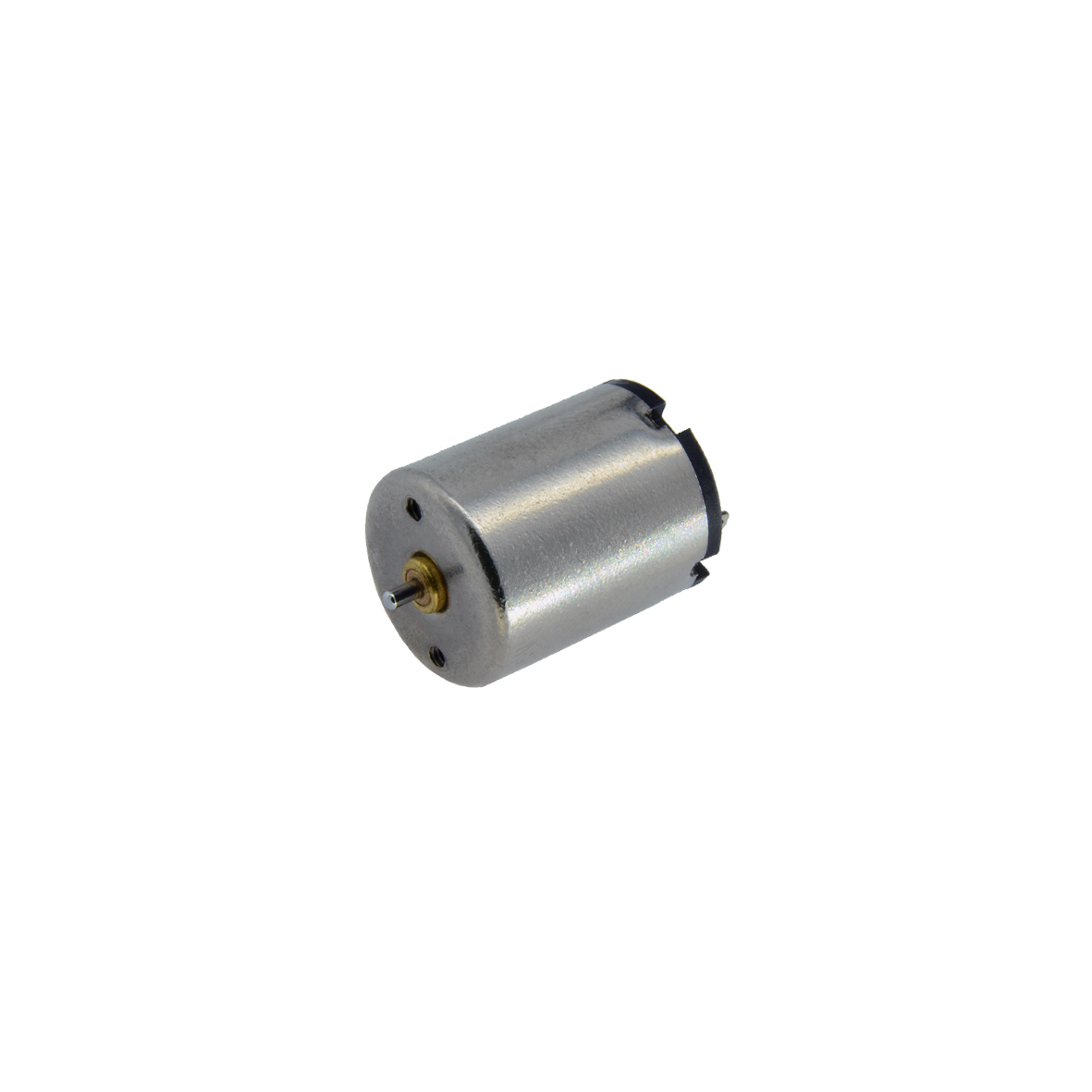

L1212N5M

12mm DC Coreless Motor Series

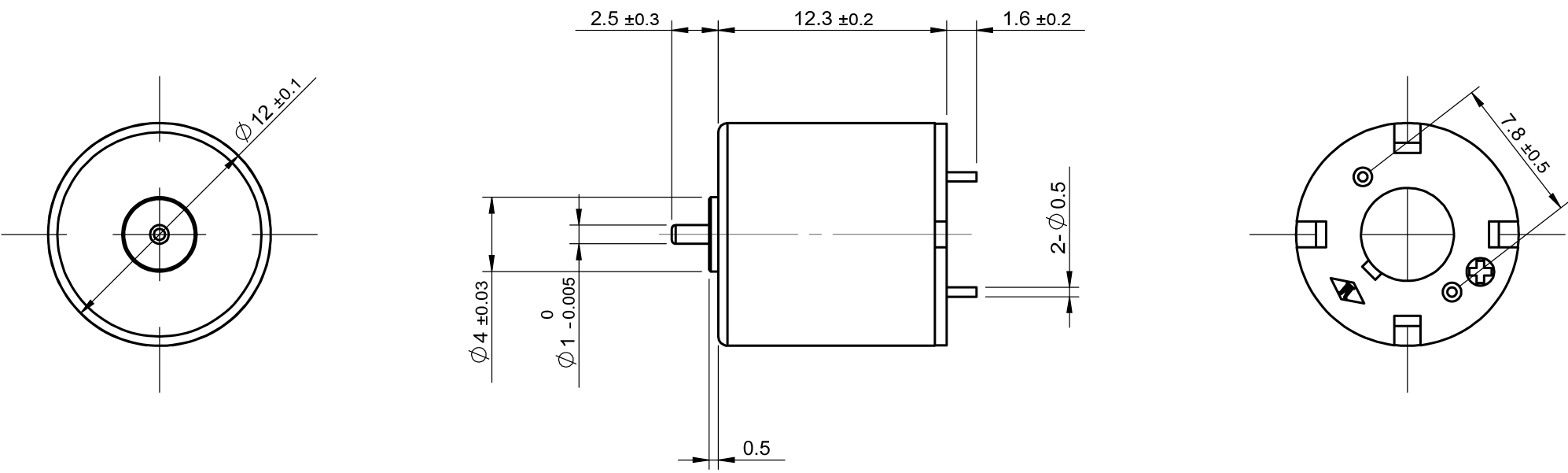

Width: 12mm; Length: 12.3mm; Voltage: 6.0v; No-load speed: 32000-37500rpm; Maximum output power: 1.6-2.7w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

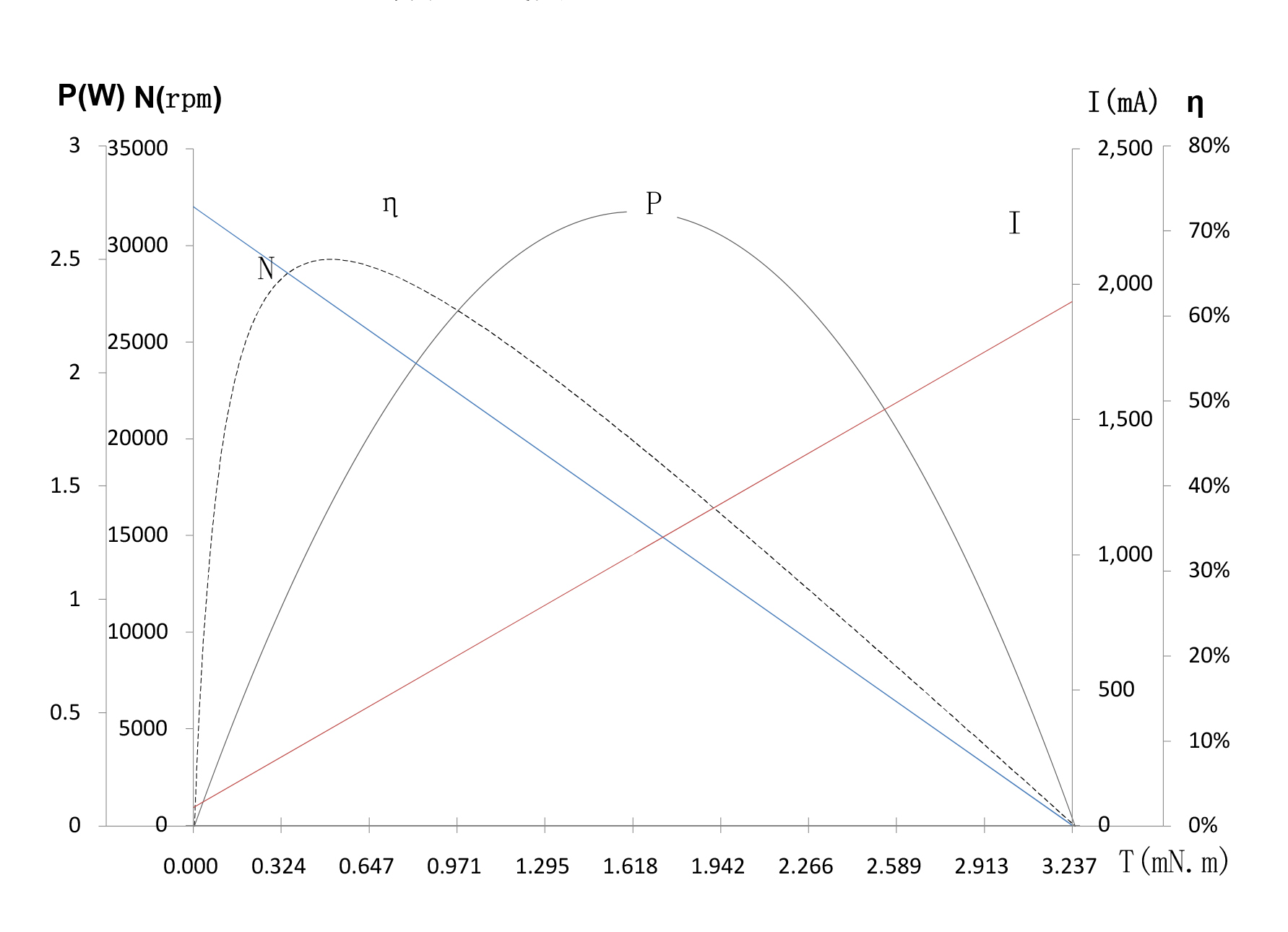

Nombre	Unidad	05-320-6.0	01-335-6.0	04-375-6.0
Voltage	V	6.0	6.0	6.0
Terminal resistance	Ω	3.1	3.9	5.1
No-load speed	rpm	32000	33500	37500
No-load current	mA	65	65	65
Stall torque	mNm	3.2	2.4	1.6
Stall current	mA	1940	1540	1180
Load torque	mNm	0.5	0.5	0.5
Load speed	rpm	27070	26570	25850
Load current	mA	350	370	410
Max.output power	W	2.7	2.1	1.6
Max.efficiency	%	67	63	59
Back-EMF constant	mV/rpm	0.2	0.2	0.2
Torque constant	mNm/A	1.7	1.6	1.4
Speed/torque gradient	rpm/mNm	9860	13870	23300
Weight	g	5.5	5.5	5.5
Rotor inertia	gcm²	0.1	0.1	0.1
Operating temperature range	°C	-20～+85	-20～+85	-20～+85
