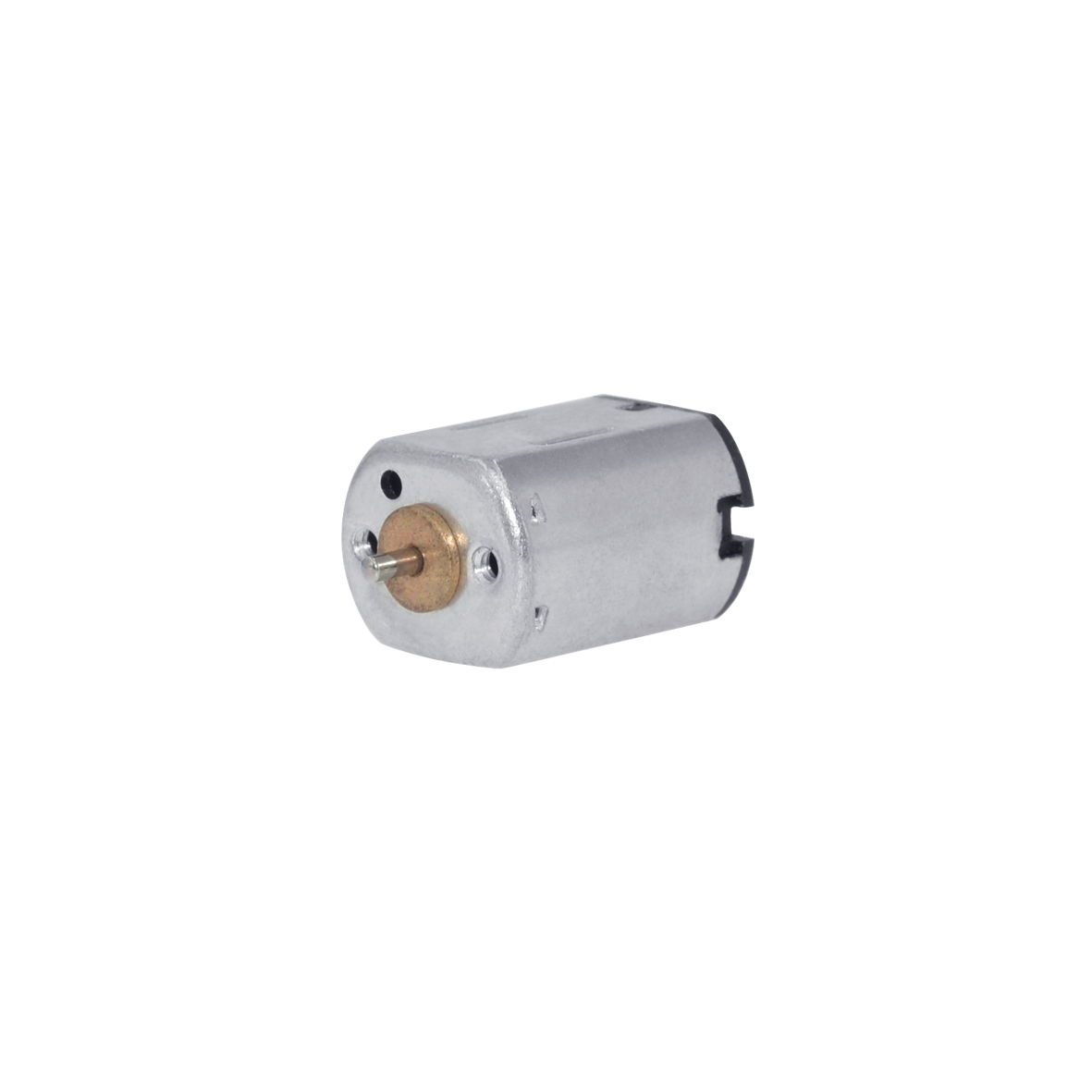

C1012F

10mm DC Coreless Motor Series

Width: 10mm; Length: 12.6mm; Voltage: 4.5v; Maximum Power: 0.84.

Applications: security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools, etc.

Customizable options: Specifications, lead length, shaft length, performance, bearings, gearboxes, encoders, drives

Unit price: Quote according to customer quantity and solution requirements

Nombre	Unidad	08-750-3.4	32-580-3.4	12-785-5.0
Voltage	V	4.5	2.0	3.0
Terminal resistance	Ω	3.7	16.5	11.1
No-load speed	rpm	32000	7000	12900
No-load current	mA	80	20	30
Stall torque	mNm	1	0.3	0.5
Stall current	mA	969	120	288
Load torque	mNm	0.29	0.09	0.17
Load speed	rpm	23000	4900	8400
Load current	mA	330	50	120
Max.output power	W	0.84	0.06	0.17
Max.efficiency	%	46.4	46.3	44.7
Back-EMF constant	mV/rpm	0.13	0.24	0.21
Torque constant	mNm/A	1.13	3	1.94
Speed/torque gradient	rpm/mNm	32000	23333	25800
Weight	g	3.15	3	3
Varistor	Yes/No	Yes	Yes	Yes
Operating temperature range	°C	-20～+80	-20～+80	-20～+80
