L0614N5M

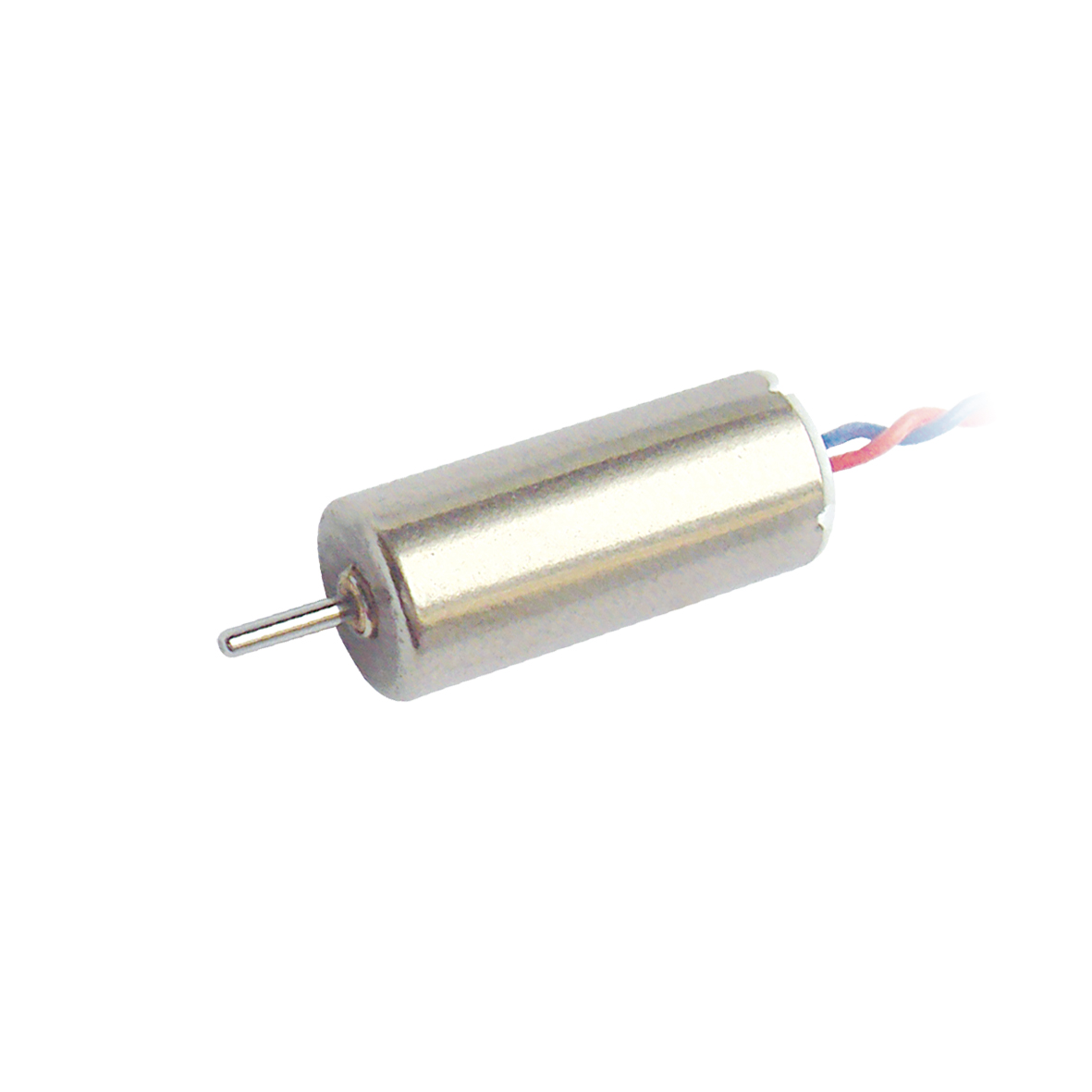

6mm DC Coreless Motor Series

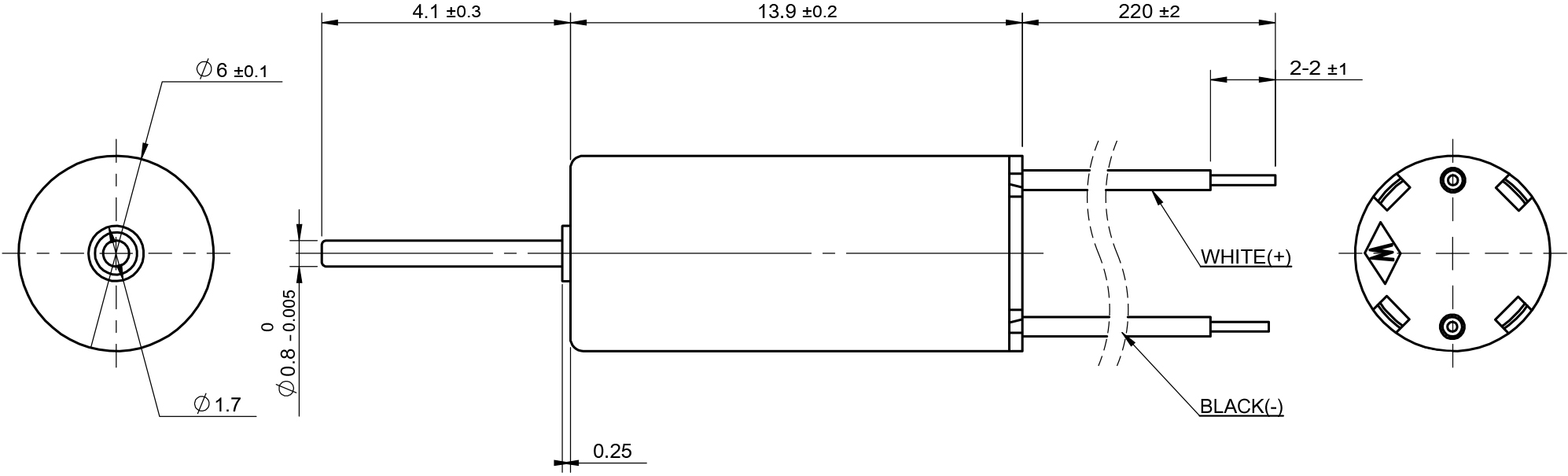

Width: 6mm; Length: 13.9mm; Voltage: 3.0-3.4v; No-load speed: 12540-50000rpm; Maximum output power: 0.09-1.4w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

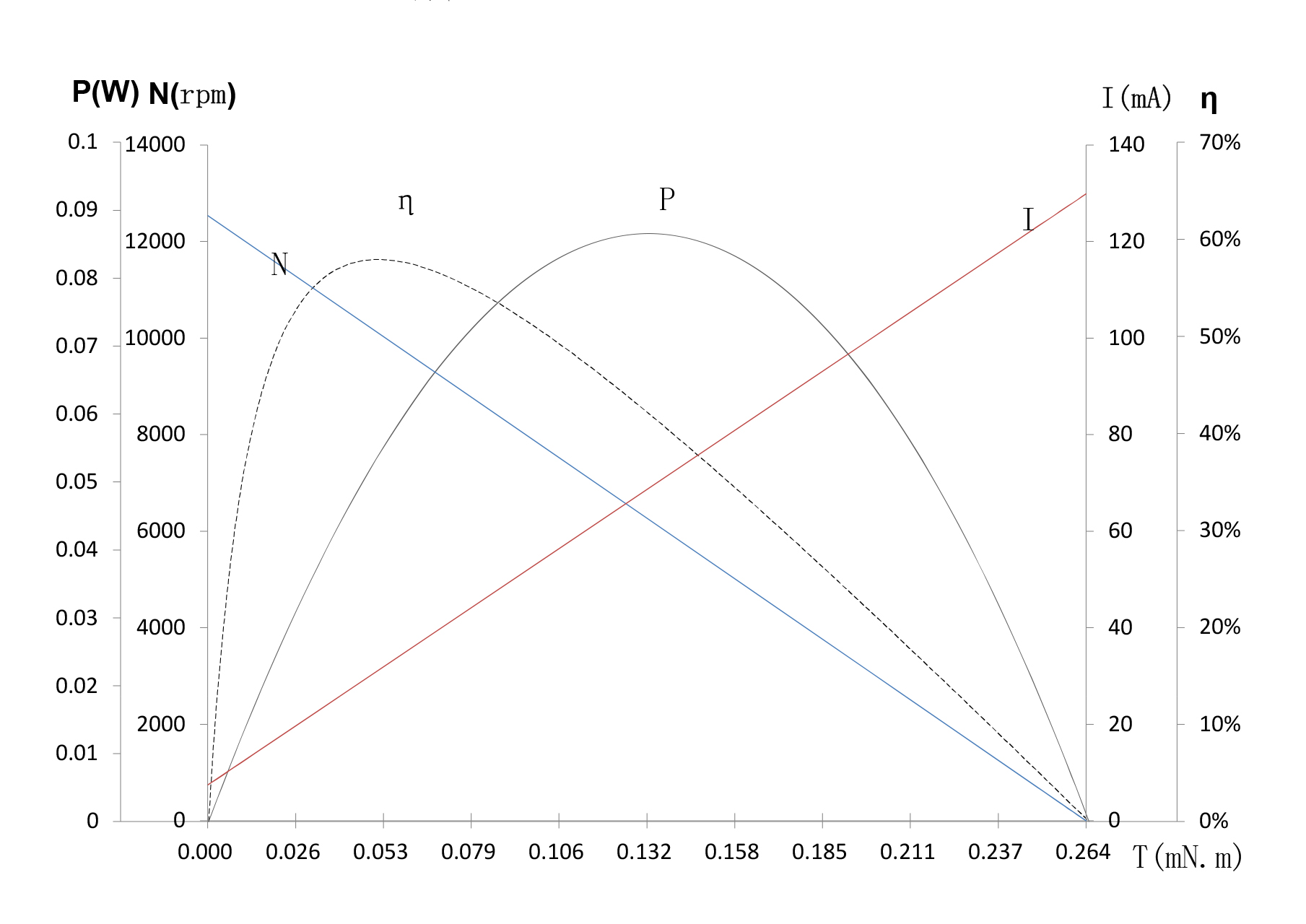

Nombre	Unidad	44-125-3.0	28-420-3.4	67-500-3.2
Voltage	V	3.0	3.4	3.2
Terminal resistance	Ω	23.1	2.6	1.7
No-load speed	rpm	12540	42000	50000
No-load current	mA	7.4	60	80
Stall torque	mNm	0.26	0.9	1.1
Stall current	mA	130	1308	1882
Load torque	mNm	0.05	0.1	0.1
Load speed	rpm	10170	37430	45260
Load current	mA	30	200	250
Max.output power	W	0.09	1.0	1.4
Max.efficiency	%	58.1	61.8	63.1
Back-EMF constant	mV/rpm	0.23	0.08	0.06
Torque constant	mNm/A	2.15	0.74	0.59
Speed/torque gradient	rpm/mNm	47500	45652	47393
Weight	g	1.7	1.7	1.7
Rotor inertia	gcm²	0.016	0.016	0.016
Operating temperature range	°C	-20～+65	-20～+65	-20～+65
