L1013N5M

10mm DC Coreless Motor Series

Width: 10mm; Length: 13mm; Voltage: 3.0v, 5.0v, 5.5v; No-load speed: 10000-34750rpm; Maximum output power: 0.1-1.9w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

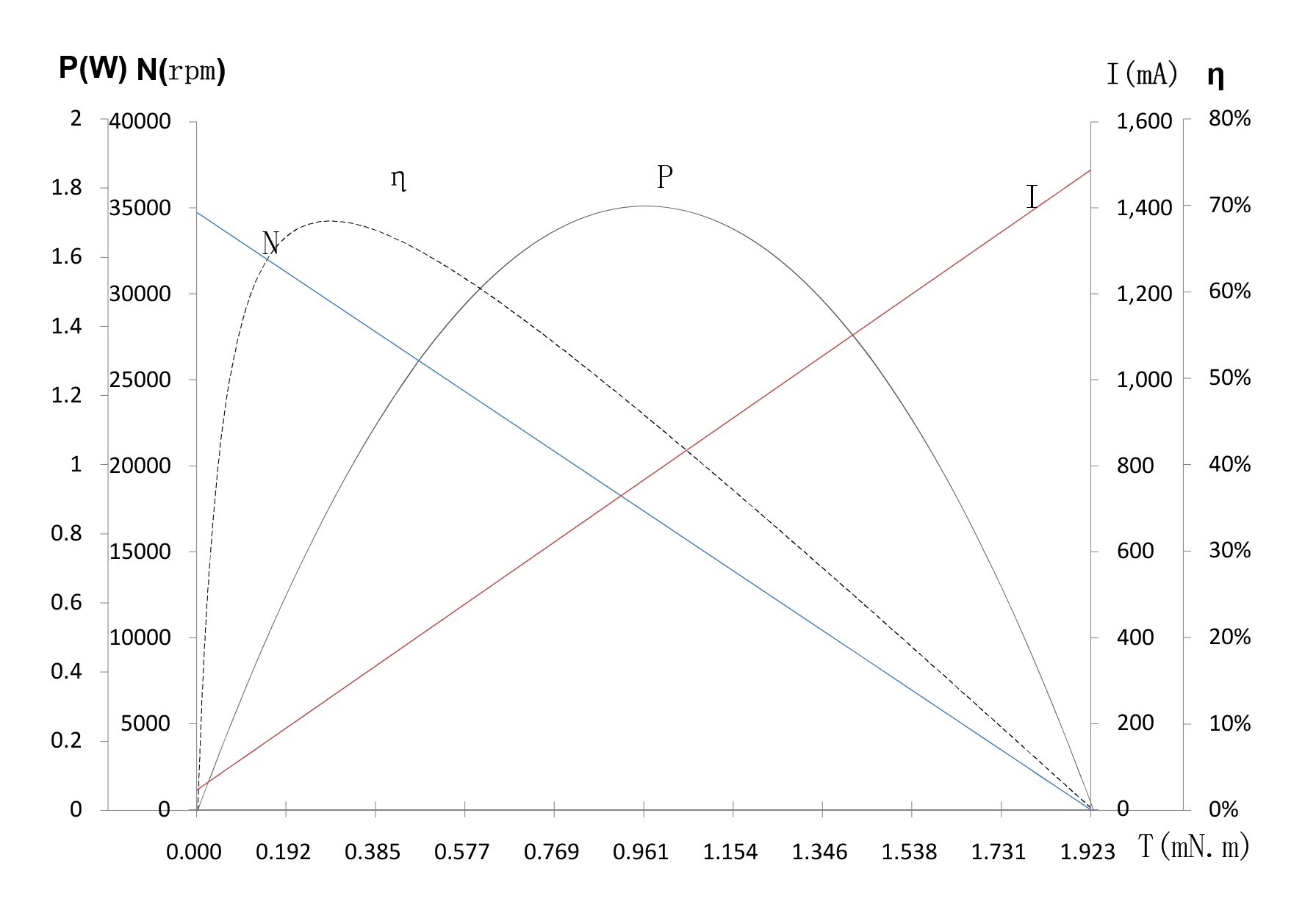

Nombre	Unidad	06-347-5.0	07-295-5.5	11-100-3.0
Voltage	V	5.0	5.5	3.0
Terminal resistance	Ω	3.4	3.9	15.5
No-load speed	rpm	34750	29500	10000
No-load current	mA	45	37	10
Stall torque	mNm	1.9	2.4	0.5
Stall current	mA	1488	1421	194
Load torque	mNm	0.3	0.3	0.3
Load speed	rpm	29330	25810	4000
Load current	mA	270	210	120
Max.output power	W	1.8	1.9	0.1
Max.efficiency	%	68	70	60
Back-EMF constant	mV/rpm	0.1	0.2	0.3
Torque constant	mNm/A	1.3	1.7	2.7
Speed/torque gradient	rpm/mNm	18070	12290	20000
Weight	g	4.1	4.1	4.1
Rotor inertia	gcm²	0.06	0.06	0.06
Operating temperature range	°C	-20～+65	-20～+65	-20～+65
