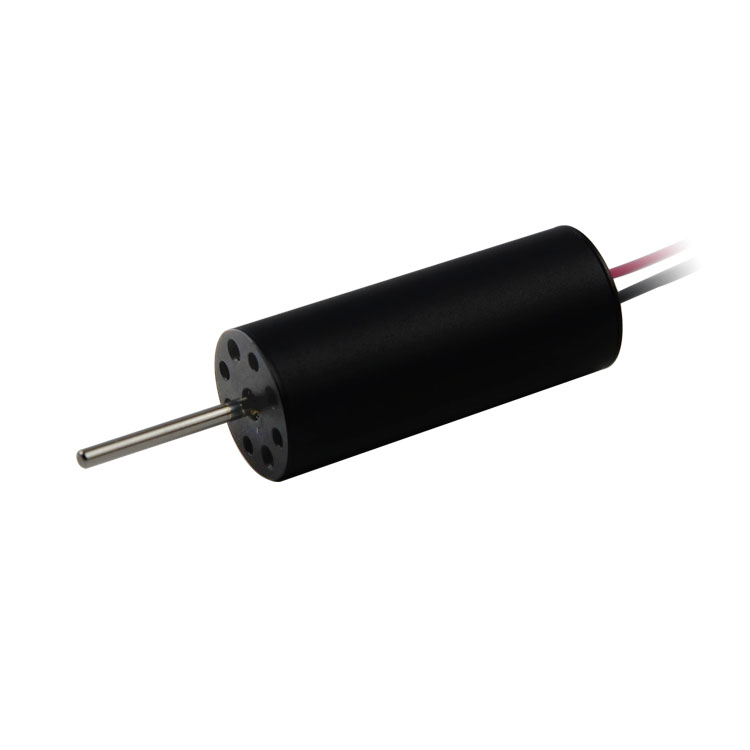

B1231NH2B

12V DC brushless motor
Diameter: 12mm; Length: 30.8mm; Voltage: 12.0v; Max output power: 10W; Sspeed: 20000rpm; Rated torque: 1.1mNm.

Application : Medical, automation equipment, precision instruments, and other precision drive fields.
Customizable : Specifications, wire length, shaft length, performance, bearings, gearbox, encoder, driver

Ask for datasheet

Customized Assessment

Ask for a quotation

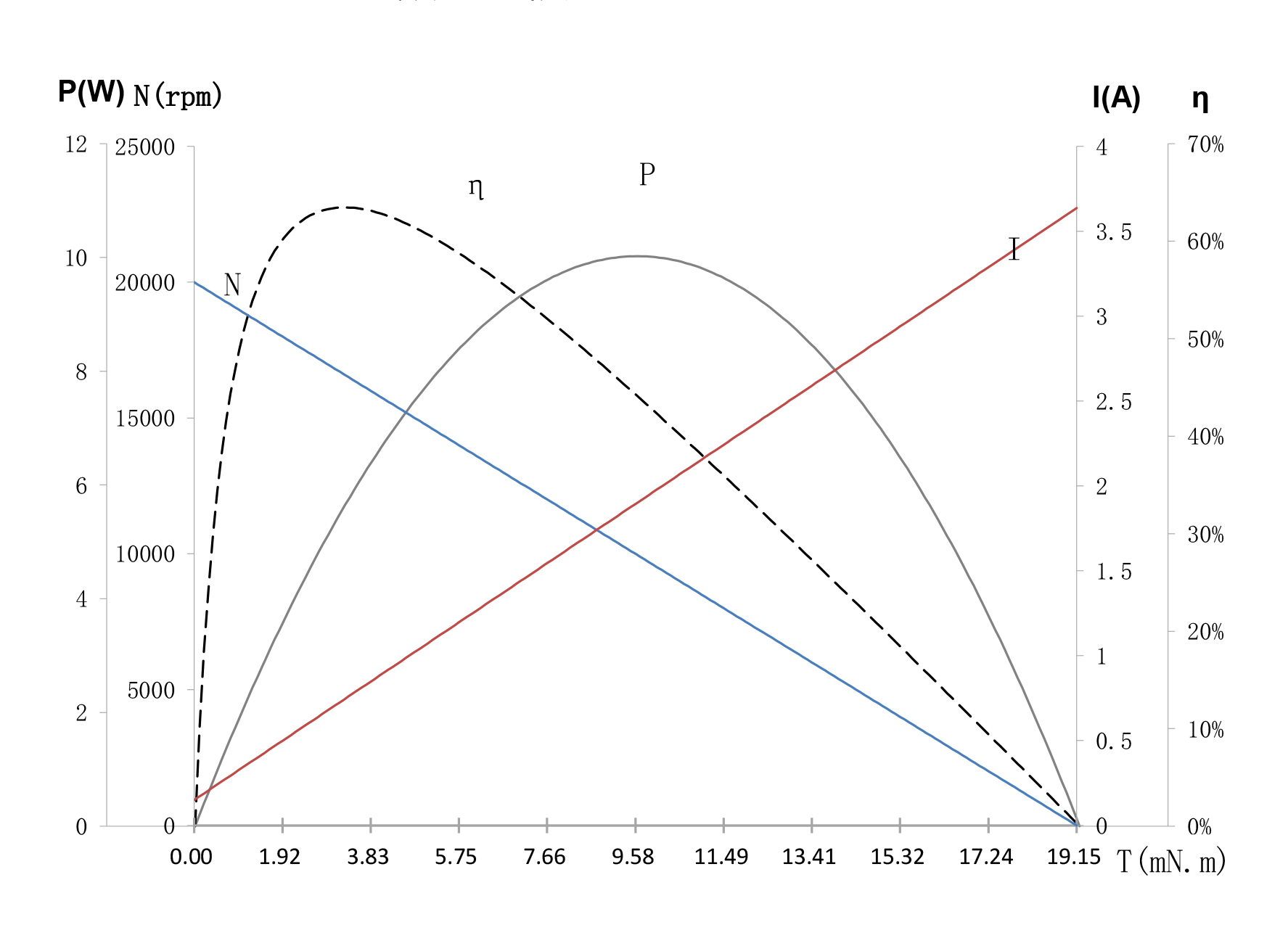

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	42-200-12.0
Voltage	V	12.0
Terminal resistance	Ω	3.3
No-load speed	rpm	20000
No-load current	A	0.15
Stall torque	mNm	19.2
Stall current	A	3.6
Nominal torque	mNm	1.1
Nominal speed	rpm	18900
Nominal current	A	0.35
Max.output power	W	10
Max.efficiency	%	63
Back-EMF constant	mV/rpm	0.6
Torque constant	mNm/A	5.5
KV Value	rpm/V	1660
Speed/torque gradient	rpm/mNm	1040
Rotor inertia	gcm2	0.21
Weight	g	16
