L0510N3M

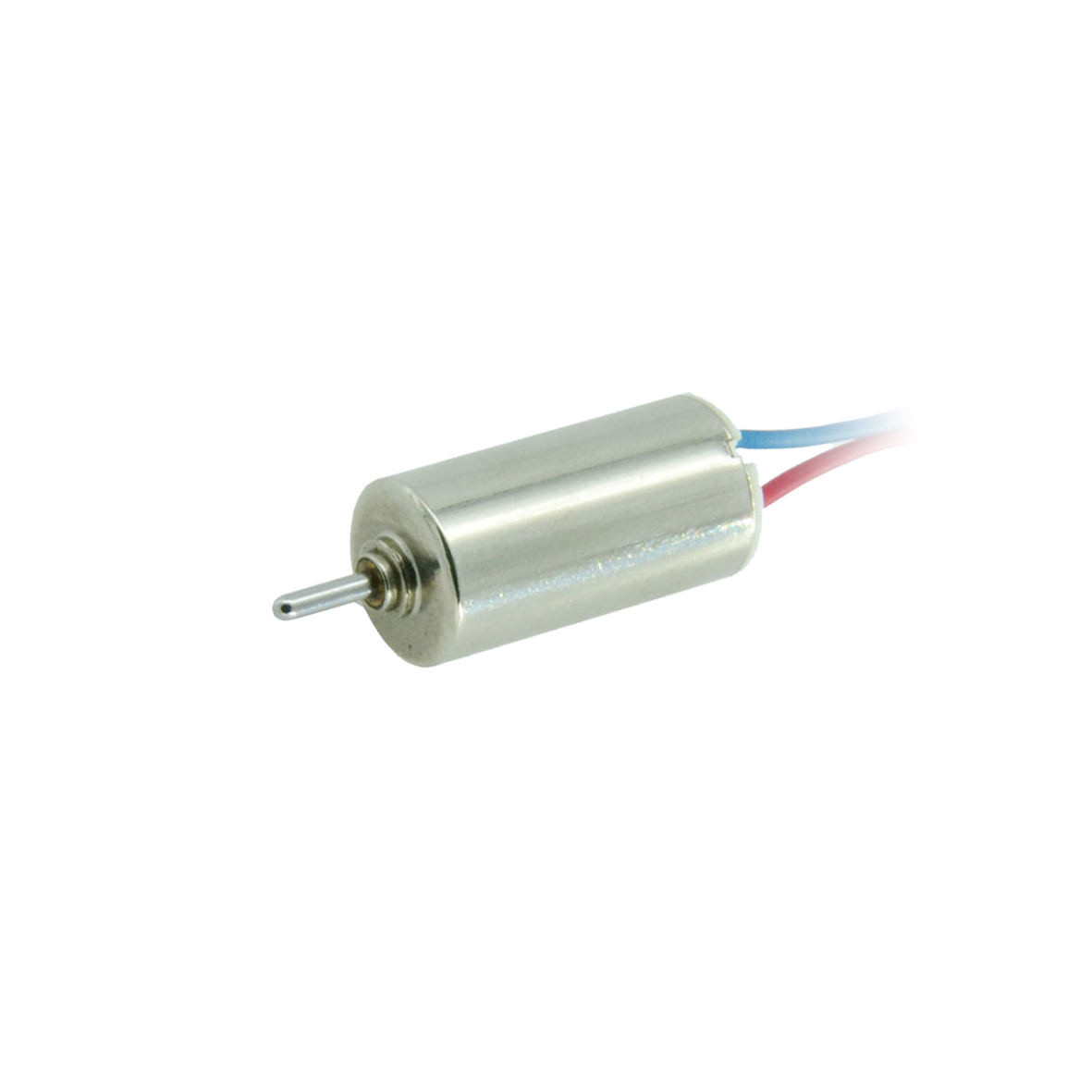

5mm DC Coreless Motor Series

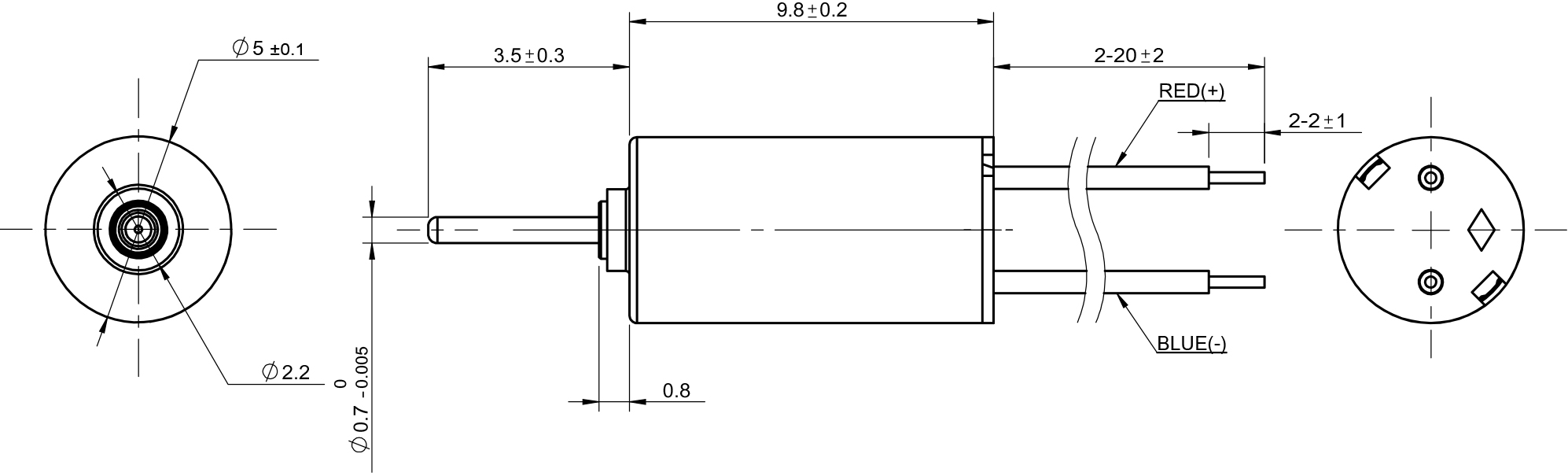

Width: 5mm; Length: 9.8mm; Voltage: 3.5-5.0v; No-load speed: 50000-87000rpm; Maximum output power: 0.15-0.64w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

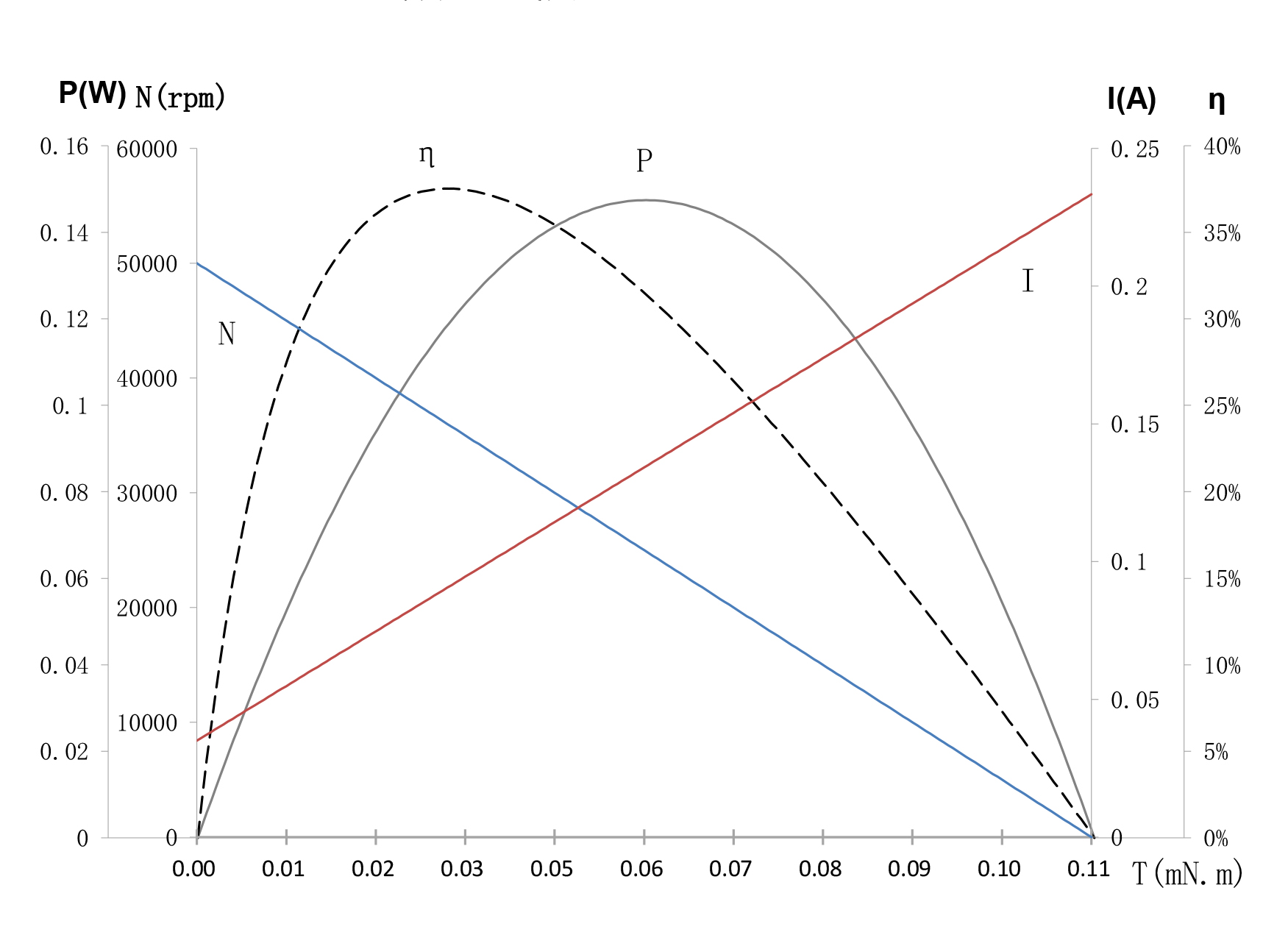

Nombre	Unidad	01-500-3.5	01-550-4.2	10-900-5.0
Voltage	V	3.5	4.2	5.0
Terminal resistance	Ω	15	15	7.6
No-load speed	rpm	50000	55000	87000
No-load current	mA	35	40	70
Stall torque	mNm	0.11	0.15	0.28
Stall current	mA	233	280	660
Load torque	mNm	0.03	0.03	0.03
Load speed	rpm	36730	44000	77680
Load current	mA	90	90	130
Max.output power	W	0.15	0.22	0.64
Max.efficiency	%	37.7	38.7	44
Back-EMF constant	mV/rpm	0.06	0.07	0.05
Torque constant	mNm/A	0.57	0.63	0.49
Speed/torque gradient	rpm/mNm	442478	366667	310714
Weight	g	0.8	0.8	0.8
Rotor inertia	gcm²	0.006	0.006	0.006
Operating temperature range	°C	-20～+65	-20～+65	-20～+65
