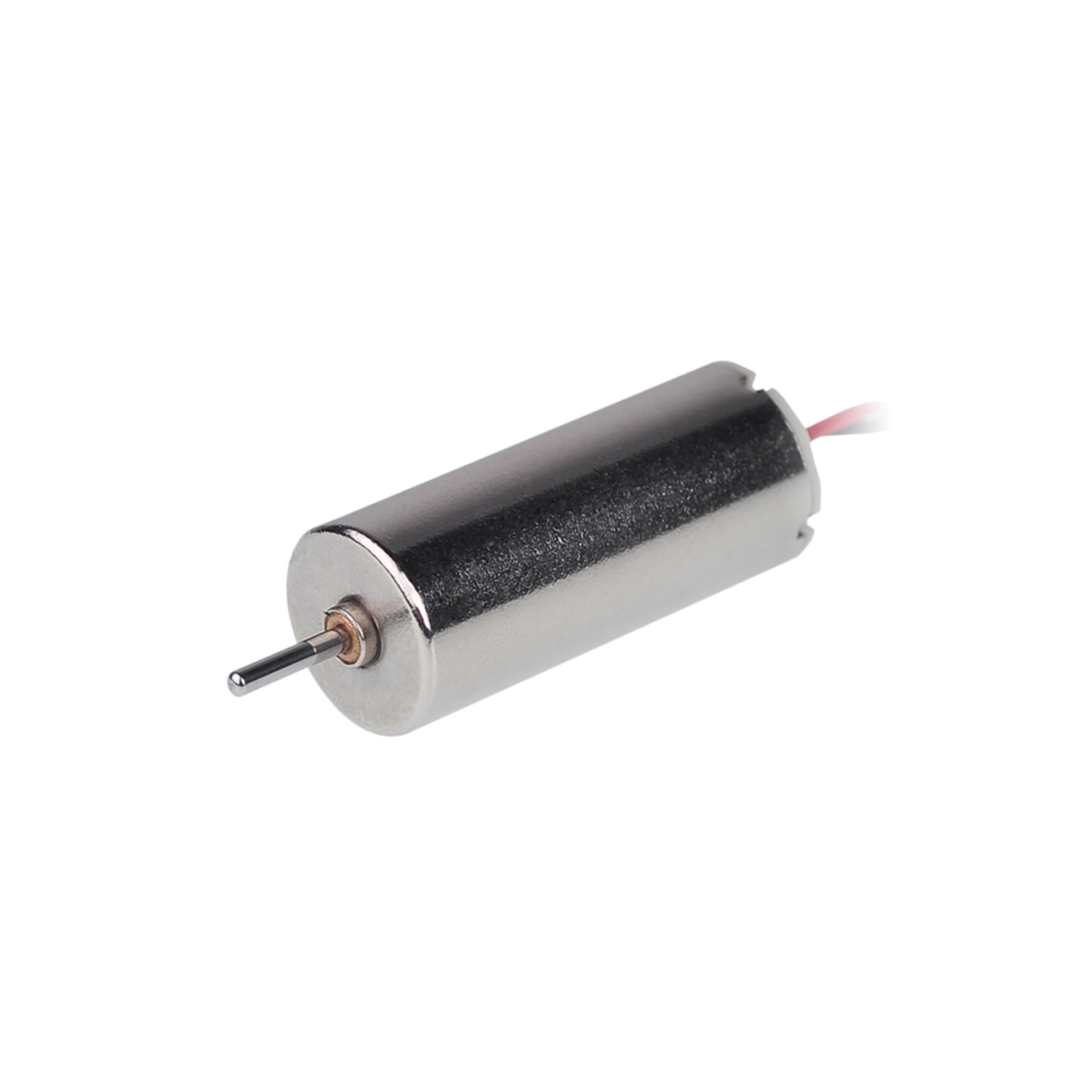

L0720N5M

7mm DC Coreless Motor Series

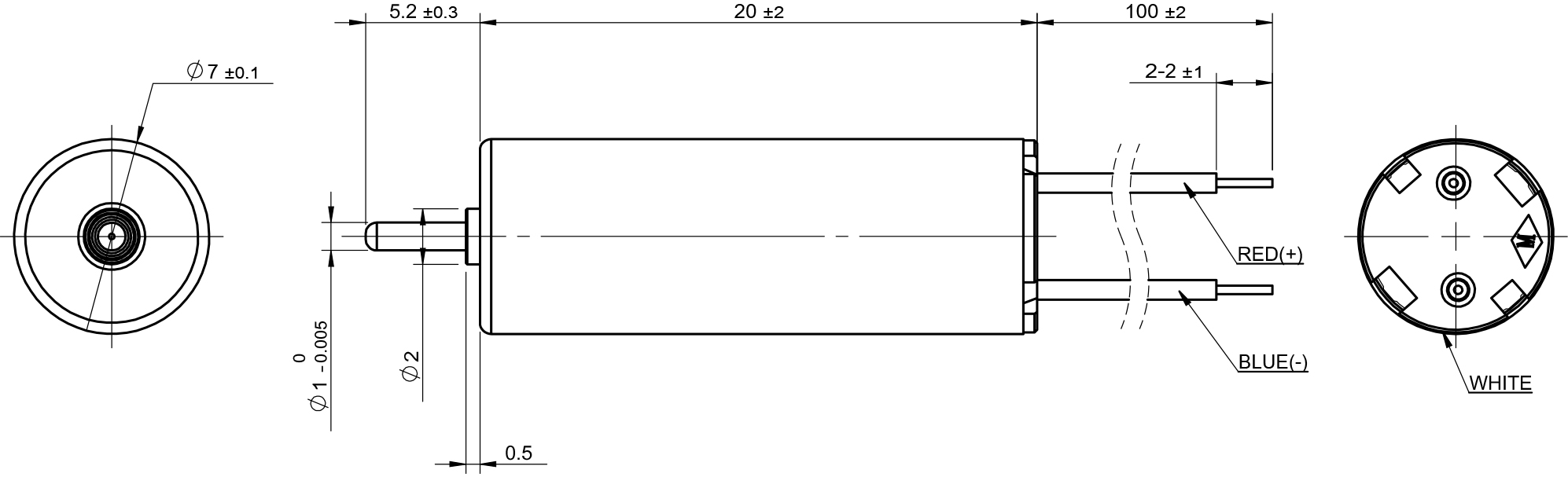

Width: 7mm; Length: 20mm; Voltage: 3.0v, 3.0v, 3.2v; No-load speed: 42370-44860rpm; Maximum output power: 3.2-4.1w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

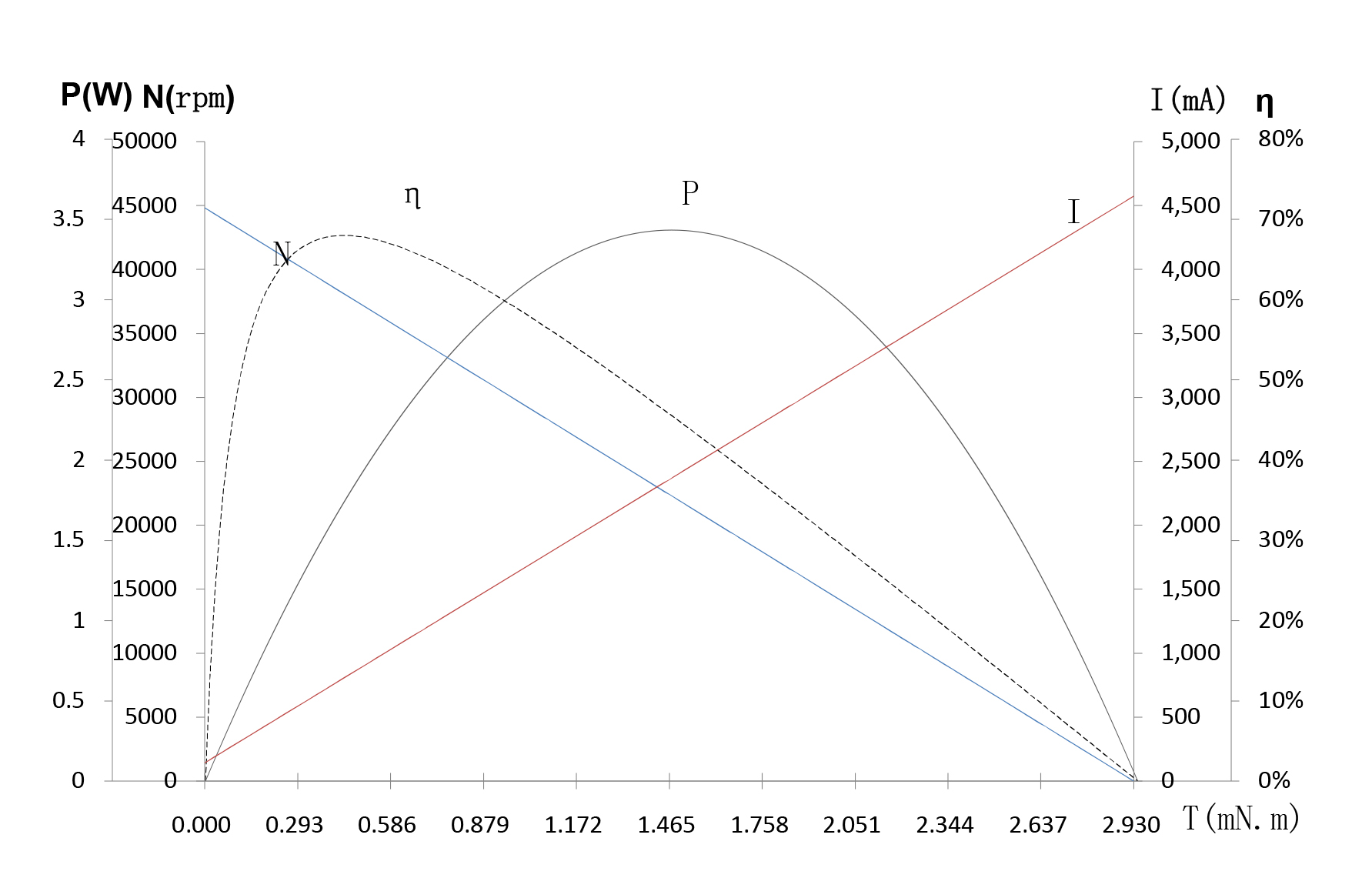

Nombre	Unidad	55-448-3.2	33-423-3.0	42-448-3.0
Voltage	V	3.2	3.0	3.0
Terminal resistance	Ω	0.7	0.67	0.51
No-load speed	rpm	44800	42370	44860
No-load current	mA	140	100	190
Stall torque	mNm	2.9	2.9	3.5
Stall current	mA	4570	4480	5880
Load torque	mNm	0.5	0.5	0.5
Load speed	rpm	37150	35050	38480
Load current	mA	900	860	1000
Max.output power	W	3.4	3.2	4.1
Max.efficiency	%	68.1	72.4	67.4
Back-EMF constant	mV/rpm	0.07	0.07	0.06
Torque constant	mNm/A	0.66	0.66	0.62
Speed/torque gradient	rpm/mNm	15290	14641	12752
Weight	g	3.3	3.9	3.9
Rotor inertia	gcm²	0.06	0.06	0.06
Operating temperature range	°C	-20～+120	-20～+120	-20～+120
