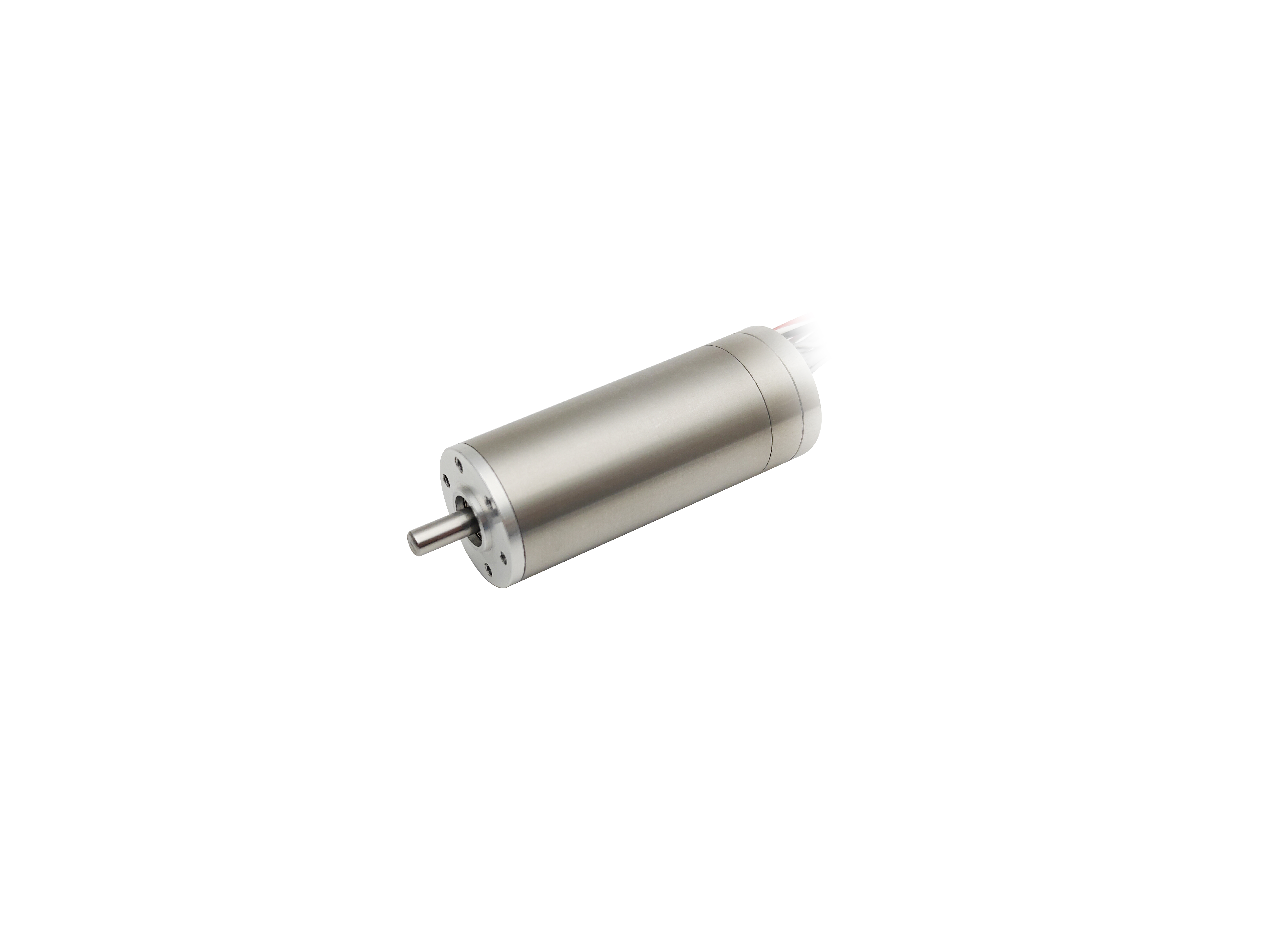

22mm coreless brushless servo motor

Diameter: 19mm; Voltage: 24v, 36v, 48v; Gearbox: Metal planetary gear;

Encoder: Magnetic encoder; Manufacturer: Shenzhen Micromotor Factory; Brand: Constar

Applications: medical equipment, intelligent prostheses, industrial robots, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox, encoder, driver

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

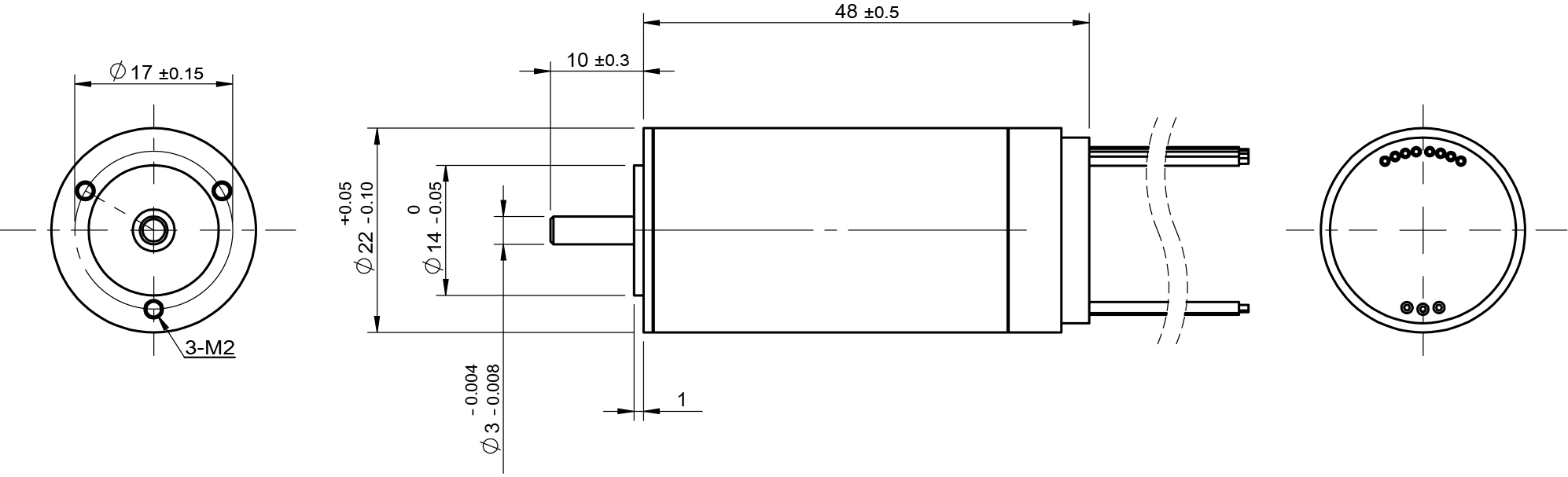

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 01-482-24.0 02-482-36.0 03-482-48.0
Voltage V 24.0 36.0 48.0
Terminal resistance Ω 0.28 0.55 1.13
No-load speed rpm 49200 50500 49200
No-load current mA 0.33 0.26 0.16
Stall torque mNm 396 442 392
Stall current mA 85.71 65.46 42.48
Nominal torque mNm 16 16 16
Nominal speed rpm 47232 48732 47232
Nominal current mA 3.75 2.54 1.85
Back-EMF constant mV/rpm 0.486 0.71 0.972
Torque constant mNm/A 4.64 6.78 9.281
Encoder 　 　 　 　
Number of channels 2 3 　
Counts per turn 16,32,64,256,512.1024 16,32,64,256,512.1024 　
Supply voltage 5.0 （5.0） 5.0 （5.0） 　
Max. speed 100000 100000 　
Phase shift 90±45 90±45 　 　 　
Output signal TTL TTL 　 　 　
