BH1350NH2B

13mm brushless slotless high-efficiency
Diameter: 13mm; Length: 50mm; Voltage: 15.0v, 24.0v, 36v; Max output power: 69 - 138W; Speed: 45000 - 54000rpm; Rated torque: 3 - 4mNm.

Application : Medical, automation equipment, precision instruments, and other precision drive fields.
Customizable : Specifications, wire length, shaft length, performance, bearings, gearbox, encoder, driver

Ask for datasheet

Customized Assessment

Ask for a quotation

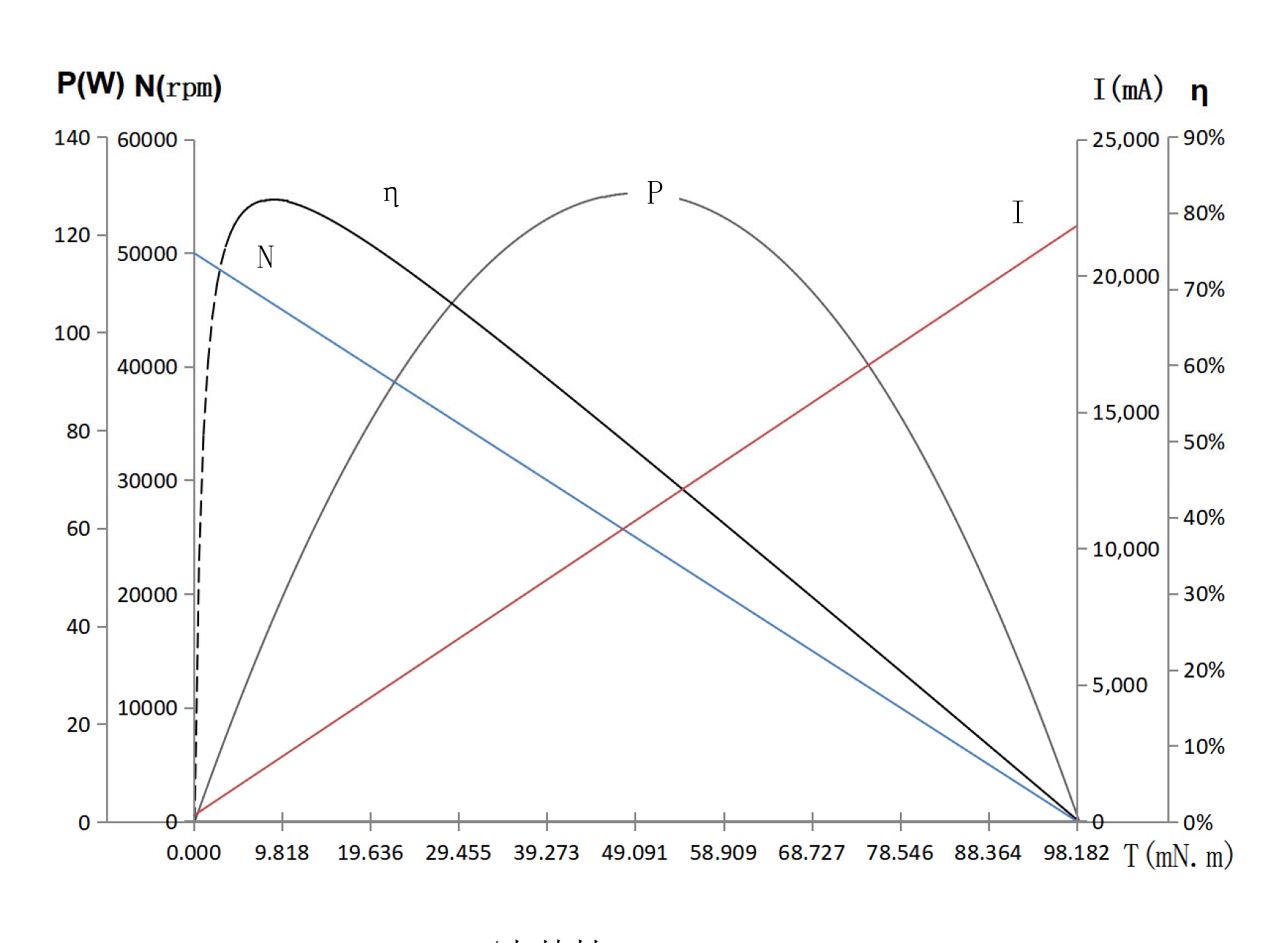

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	01-450-15.0	02-500-24.0	03-540-36.0
Voltage	V	15.0	24.0	36.0
Terminal resistance	Ω	0.8	1.1	2.3
No-load speed	rpm	45000	50000	54000
No-load current	mA	0.17	0.2	0.15
Stall torque	mNm	58.6	98.2	97.7
Stall current	mA	18.8	21.8	15.7
Nominal torque	mNm	4	3	3
Nominal speed	rpm	41850	48250	52380
Nominal current	mA	1.47	0.95	0.62
Max.output power	W	69	128	138
Max.efficiency	%	82	82	81
Back-EMF constant	mV/rpm	0.33	0.476	0.66
Torque constant	mNm/A	3.15	4.542	6.3
KV Value	rpm/V	3000	2080	1500
Speed/torque gradient	rpm/mNm	768	509	552
Rotor inertia	gcm2	1.2	1.2	1.2
Weight	g	28	28	28
