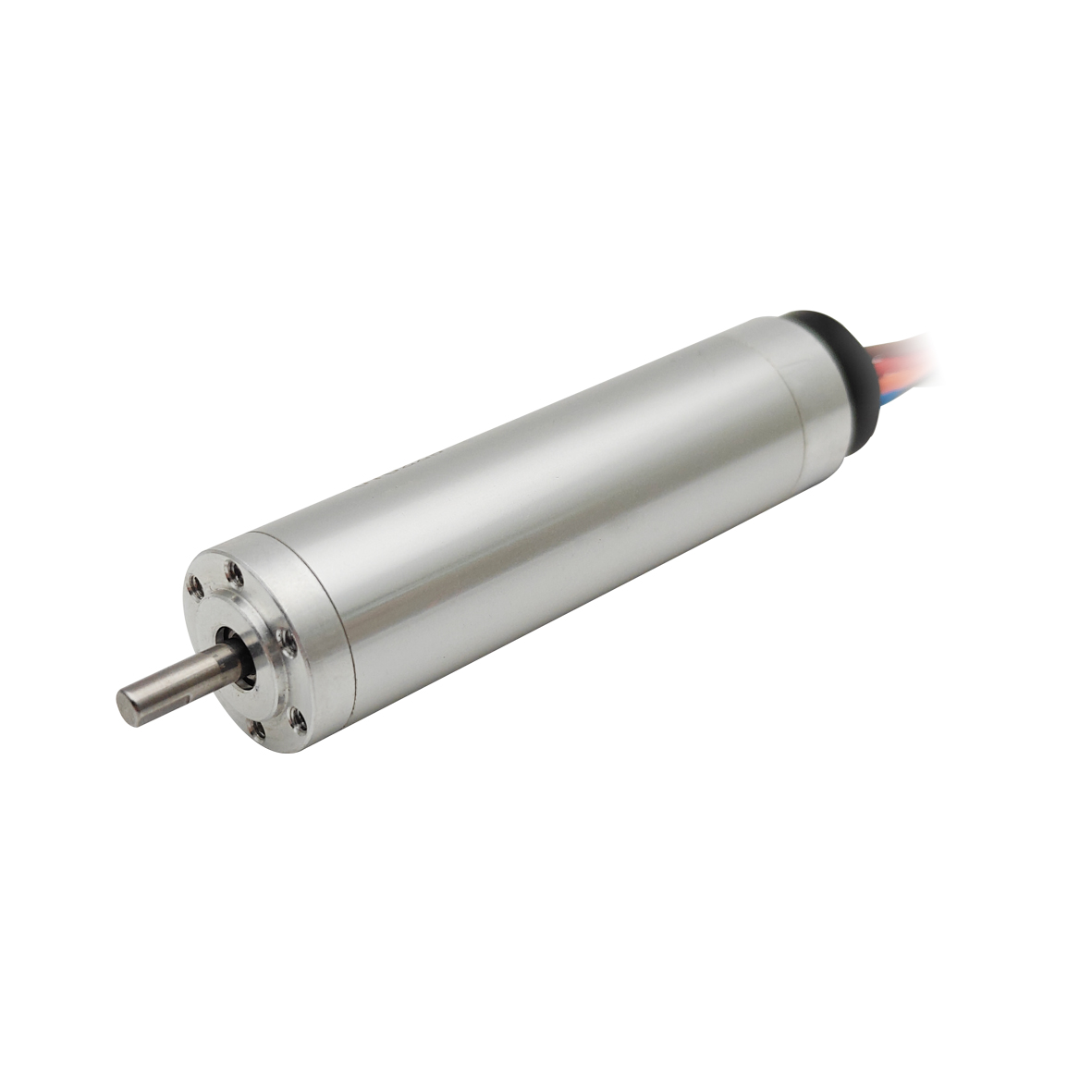

BH1960NH2B

1960 Brushless Motor
Diameter: 19mm; Length: 60mm; Voltage: 24.0v, 36.0v, 48.0v; Max output power: 397 - 452W; Speed: 48200rpm; Rated torque: 18 - 21mNm.

Application : Medical, automation equipment, precision instruments, and other precision drive fields.
Customizable : Specifications, wire length, shaft length, performance, bearings, gearbox, encoder, driver

Ask for datasheet

Customized Assessment

Ask for a quotation

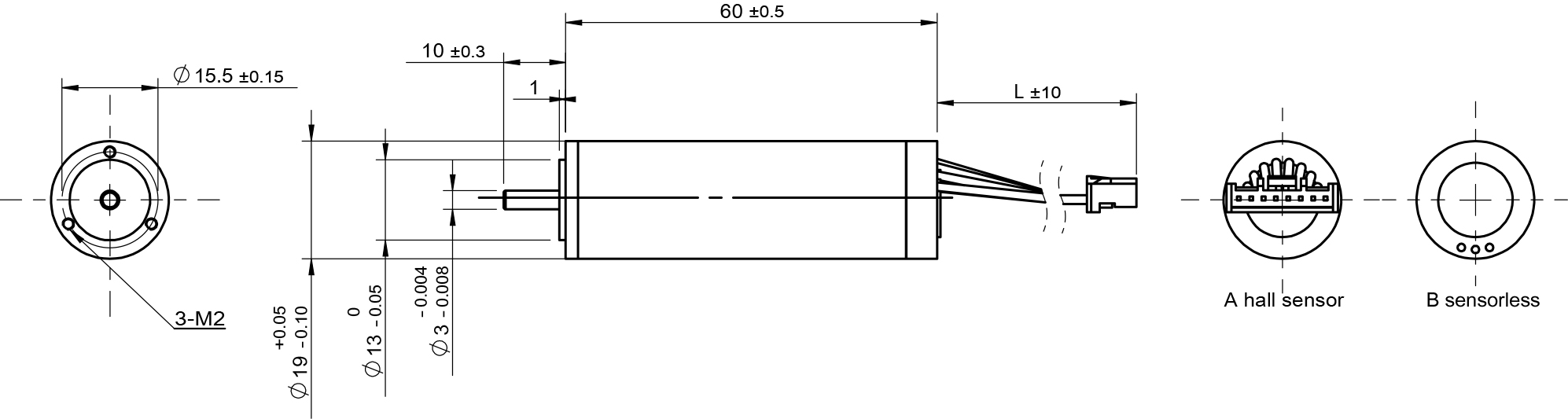

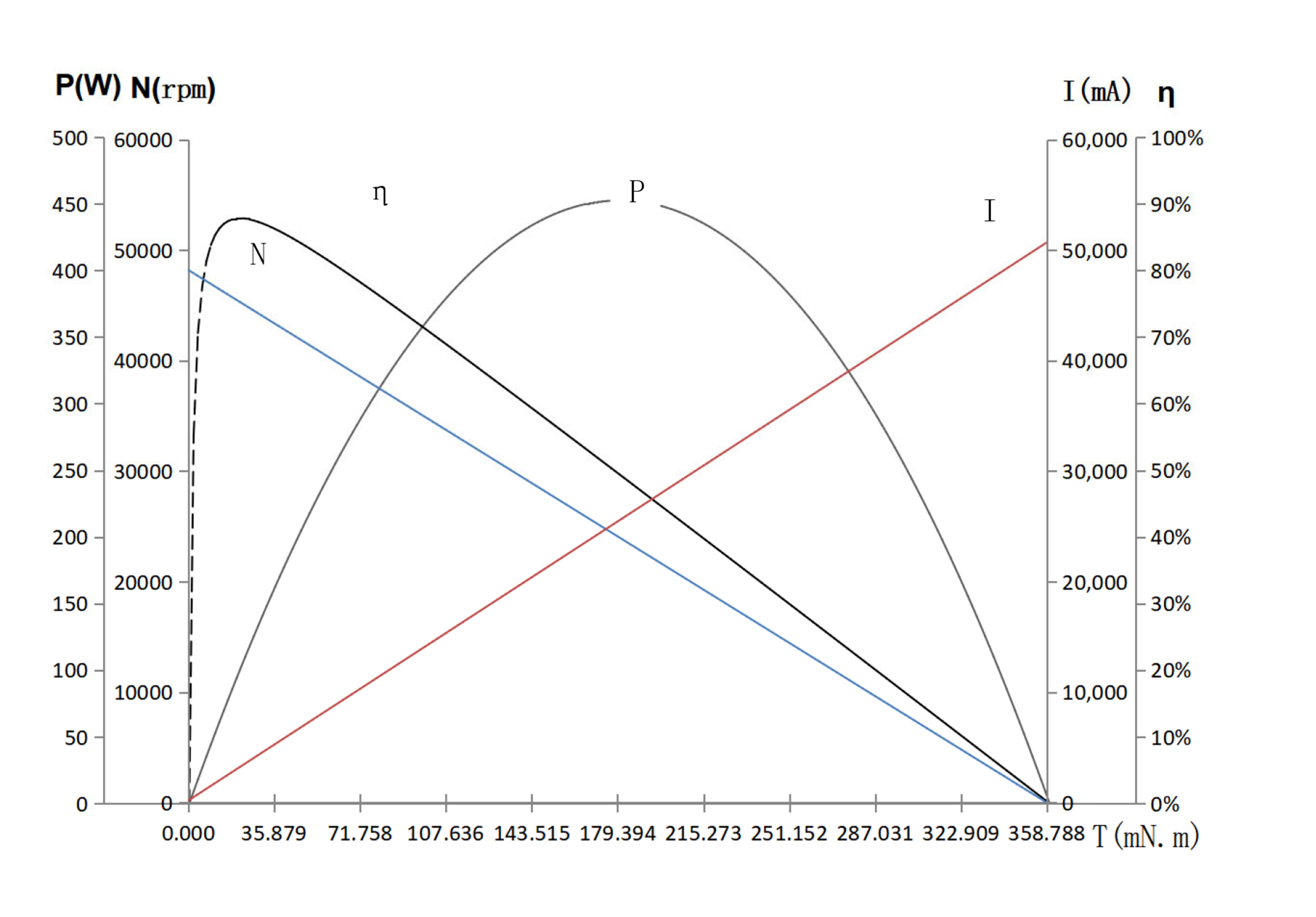

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	01-482-24.0	02-482-36.0	03-482-48.0
Voltage	V	24.0	36.0	48.0
Terminal resistance	Ω	0.36	0.71	1.41
No-load speed	rpm	48200	48200	48200
No-load current	mA	0.24	0.2	0.14
Stall torque	mNm	314.7	358.8	321
Stall current	mA	66.67	50.7	34.04
Nominal torque	mNm	21	18	18
Nominal speed	rpm	45070	45800	45550
Nominal current	mA	4.56	2.73	2.0
Max.output power	W	397	452	404
Max.efficiency	%	88	88	87
Back-EMF constant	mV/rpm	0.496	0.744	0.992
Torque constant	mNm/A	4.738	7.104	9.471
KV Value	rpm/V	2008	1338	1004
Speed/torque gradient	rpm/mNm	153	134	150
Rotor inertia	gcm2	1.66	1.66	1.66
Weight	g	93	93	93
